Crank sensor wire routing
Thread Starter
Pit Crew
Joined: Mar 2013
Posts: 220
Likes: 27
From: Ontario
Crank sensor wire routing

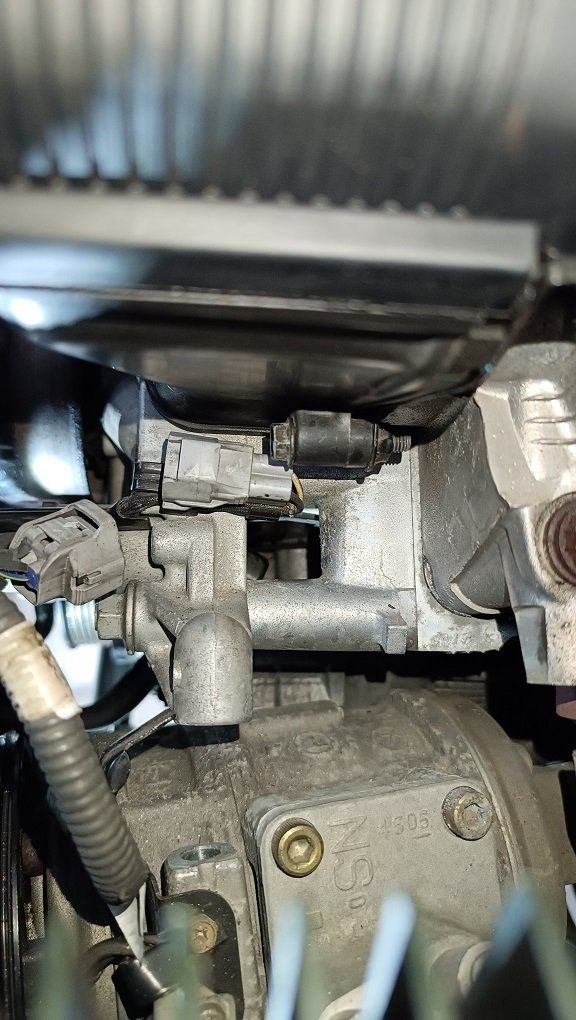

3/4 of the way through timing belt job. Having some trouble figuring out where the crankshaft sensor wire is supposed to go.
Does it tuck behind the right leg (closest to driver side) of the hydraulic fan pump (and over the top of the A/C compressor)
Fan pump is back on, everything else lines up but the dang crank sensor wire is not making sense.
I know there is a bracket (for the wire) that's held in place by one of the pump bolts.
I seem to remember a wire behind one of the pump legs when I took it off but I can't say for sure.
Anyone do this recently and have it fresh in your mind?
Heck of a job
. The actual timing belt and water pump were the easiest part of it.
It's all the other junk that's the real drag.
Car is a '94
Does it tuck behind the right leg (closest to driver side) of the hydraulic fan pump (and over the top of the A/C compressor)
Fan pump is back on, everything else lines up but the dang crank sensor wire is not making sense.
I know there is a bracket (for the wire) that's held in place by one of the pump bolts.
I seem to remember a wire behind one of the pump legs when I took it off but I can't say for sure.
Anyone do this recently and have it fresh in your mind?
Heck of a job
. The actual timing belt and water pump were the easiest part of it.It's all the other junk that's the real drag.
Car is a '94
Lead Lap
Joined: Nov 2019
Posts: 3,689
Likes: 1,101
From: Michigan
Hello,
Below is a video on how to replace the Timing Belt on a 1UZ, it seems to show the routing of the Crankshaft Sensor Wire at 10:20 and 13:25 marks, should be good enough to find its proper location.
Hope this helps and best of luck!
Below is a video on how to replace the Timing Belt on a 1UZ, it seems to show the routing of the Crankshaft Sensor Wire at 10:20 and 13:25 marks, should be good enough to find its proper location.
Hope this helps and best of luck!
Last edited by Arsenii; Oct 8, 2024 at 07:25 PM.
Thread Starter
Pit Crew
Joined: Mar 2013
Posts: 220
Likes: 27
From: Ontario
yes, i changed the timing belt and the AC compressor don´t fit back on the engine. after several attempts i discovered the incorrectly cable for the crank sensor. i had previously taken some pictures that helped me a lot.
no problem! That´s what the car forums are for, to help each other
no problem! That´s what the car forums are for, to help each other
