Hey guys just popping in to show off my latest LED retro. I know some of you guys in here like this sort of thing like I obviously do.
LED moonroof HMSL and LED tails:
Click for full res.

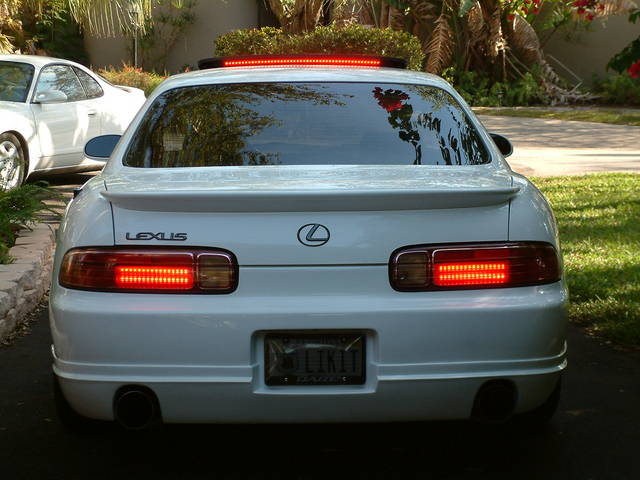

The tails don't need much explanation. Just two rows of 16 LEDS for 32 LEDS per side. The Moonroof HMSL (high-mount stop light) is an LED strip I had lying around that I decided to finally use. The weak stock HMSL was bothering me so I decided to do the moonroof light. I had done it once before in my Celica (as seen in pic). The moonroof works as stock. Tilt, slide, everything works fine. A simple wire retracting brace was fabricated to allow movement of the entire assembly with the moonroof. There's a switch that returns the stock HMSL to active duty when the moonroof is closed which is only when it rains. Otherwise the new 48-LED unit is at work. Total 112 LEDS facing the rear. At night, everything behind me turns red when I brake.
All LEDS are DOT approved for automotive signaling use.
I also have similar retros (but in amber) in my front bumper lenses with gunmetal housings. But no pics at this time.
I'll take some of those.
If you have any questions, please post them here and not thru PM. I always seem to get the same question from different people so I rather answer everything here, once.
Thanks all!
LED moonroof HMSL and LED tails:
Click for full res.
The tails don't need much explanation. Just two rows of 16 LEDS for 32 LEDS per side. The Moonroof HMSL (high-mount stop light) is an LED strip I had lying around that I decided to finally use. The weak stock HMSL was bothering me so I decided to do the moonroof light. I had done it once before in my Celica (as seen in pic). The moonroof works as stock. Tilt, slide, everything works fine. A simple wire retracting brace was fabricated to allow movement of the entire assembly with the moonroof. There's a switch that returns the stock HMSL to active duty when the moonroof is closed which is only when it rains. Otherwise the new 48-LED unit is at work. Total 112 LEDS facing the rear. At night, everything behind me turns red when I brake.
All LEDS are DOT approved for automotive signaling use.I also have similar retros (but in amber) in my front bumper lenses with gunmetal housings. But no pics at this time.
I'll take some of those.If you have any questions, please post them here and not thru PM. I always seem to get the same question from different people so I rather answer everything here, once.
Thanks all!
Last edited by CleanSC; Jan 30, 2006 at 07:56 AM. Reason: Gallery Linking was changed by system. Links changed to suit.
Thread Starter
Pole Position
Joined: Mar 2004
Posts: 2,365
Likes: 29
From: Florida
Originally Posted by DarchMage
That's pretty cool, where'd you get that strip of LEDs for the HMSL?
I love the idea of it working only when you have it up?
I love the idea of it working only when you have it up?
Nowadays they sell LED strips just for this sort of thing... The low rider truck scene uses these a lot on the bottom of their tailgates. Come in many sizes. Not so sure about reliability tho.
Thread Starter
Pole Position
Joined: Mar 2004
Posts: 2,365
Likes: 29
From: Florida
Originally Posted by DarchMage
Where is your stock HMSL?
Does it switch automatically between the two or do you manually flip a switch?
Does it switch automatically between the two or do you manually flip a switch?
I have to manually flip a switch because that is the cleanest way to wire it. I could use the sunroof limit switches to make it fully automatic but I'm not interested in the complication, the hacking, and the extra non-OEM wiring. (I had a similar setup with the limit switches in the Celica where the alarm controlled the sunroof -- cute, but major hacking.) Besides I like having full control with my switch. Plus I barely ever need to use it. I've used the switch maybe once in the past 3 weeks?
To remind me that it's on, it flashes blue when the brakes are applied. It's mounted under the back seat on the tranny tunnel. This location keeps my dash clean, makes wire runs minimal as it's closer to the action, and is invisible. Access is simple as well. Just reach your arm back.
What year and trim Celica do you have?
I used to have a 92 Celica GT-S. I miss it, that thing handled so well and was pretty quick for a 2.2 4-cyl.
And can both the stock and moon-roof mounted HMSL work at the same time?
Is this legal?
I used to have a 92 Celica GT-S. I miss it, that thing handled so well and was pretty quick for a 2.2 4-cyl.
And can both the stock and moon-roof mounted HMSL work at the same time?
Is this legal?
Trending Topics
Thread Starter
Pole Position
Joined: Mar 2004
Posts: 2,365
Likes: 29
From: Florida
Originally Posted by DarchMage
What year and trim Celica do you have?
I used to have a 92 Celica GT-S. I miss it, that thing handled so well and was pretty quick for a 2.2 4-cyl.
And can both the stock and moon-roof mounted HMSL work at the same time?
Is this legal?
I used to have a 92 Celica GT-S. I miss it, that thing handled so well and was pretty quick for a 2.2 4-cyl.
And can both the stock and moon-roof mounted HMSL work at the same time?
Is this legal?
https://www.clublexus.com/forums/sho...52&postcount=9
Yes both can go at the same time if I want. Legal? I don't see why not. Many cars have several brake lights from Monteros with the stop lights in the bumper, to dealer installed spoilers with LEDs on cars that still have the deck-mounted HMSL. They never get bothered so...
ClubLexus Stories
Celebrating Lexus & Toyota from Around the Globe
Lexus NX 350h: A Fuel-Sipping Secret Hot Hatch???
Michael S. Palmer
5 Best & 5 Worst Lexus Daily Drivers
Joe Kucinski
Top 5 Hottest Lexus & Toyotas in 2026 (Hardest To Buy)
Brett Foote
2026 Lexus IS 350 F Sport Review: The Last of Its Kind Still Rocks
Michael S. Palmer
Top 10 Most Confusing Things Lexus Has Ever Done!
Joe Kucinski
2026 Lexus ES Review: Lexus Re-Embraces Founding Principles
Michael S. Palmer
10 Lexus Bargains That are Cheaper Than a New Toyota RAV4
Joe Kucinski
8 Weirdest Things Lexus Has Ever Built
Verdad Gallardo
10 Lexus Designs That Have Aged Like Fine Wine
Verdad Gallardo
Originally Posted by CleanSC
Wow lately I have been getting the Celica question a lot.... See this post for quick info. I can literally write a book on the car tho... It's a 1990 Celica GT-S.
https://www.clublexus.com/forums/sho...52&postcount=9
Yes both can go at the same time if I want. Legal? I don't see why not. Many cars have several brake lights from Monteros with the stop lights in the bumper, to dealer installed spoilers with LEDs on cars that still have the deck-mounted HMSL. They never get bothered so...
https://www.clublexus.com/forums/sho...52&postcount=9
Yes both can go at the same time if I want. Legal? I don't see why not. Many cars have several brake lights from Monteros with the stop lights in the bumper, to dealer installed spoilers with LEDs on cars that still have the deck-mounted HMSL. They never get bothered so...
I miss my Celica... I wish I could have done some sick mods for my car...
Thread Starter
Pole Position
Joined: Mar 2004
Posts: 2,365
Likes: 29
From: Florida
Amber LED Markers
As promised, the amber LED marker lights for the front bumper.
Off:
On:

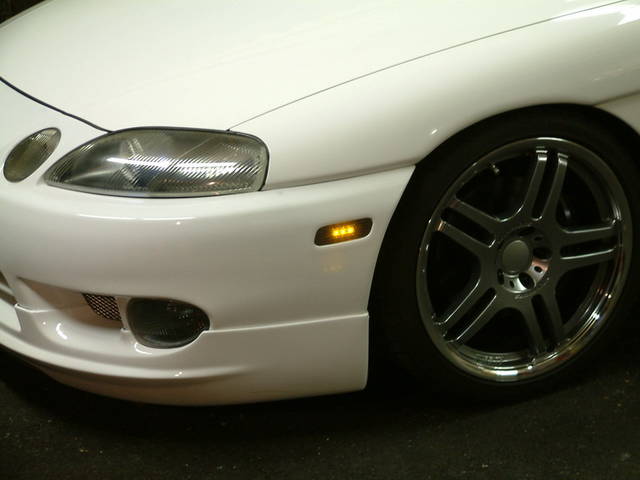

From a distance:

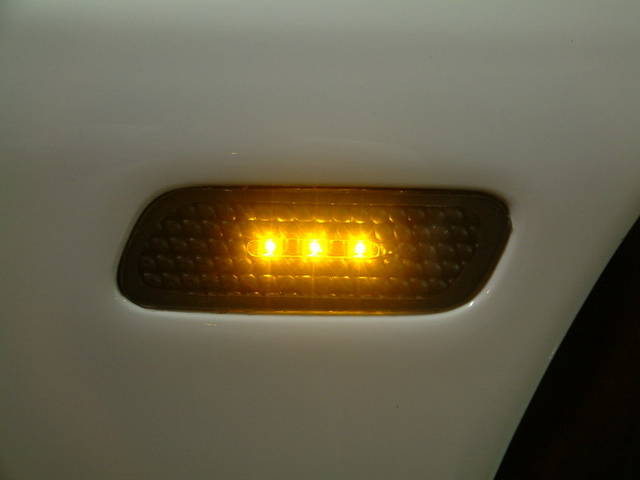

These are completely custom made. Custom LEDs, custom cover, and custom dimpled diffuser lense. The color I used is the same gunmetal on the headlights, high beams, and fogs so it's all uniform.
