Front distance sensor connector - information needed
Hi!
Recently I have purchased Lexus NX300h (2019). I took it from one of USA auctions after accident. Car is under repair now.
One of damages is front distance (radar) sensor connector. It's location shown on picture . It crushed so badly that left only 6 naked wares. I managed to buy new connector but it is without wires. So now I have question what wire goes to what pin?
Would be very helpful if somebody take photo of this connector with wires and post it here.

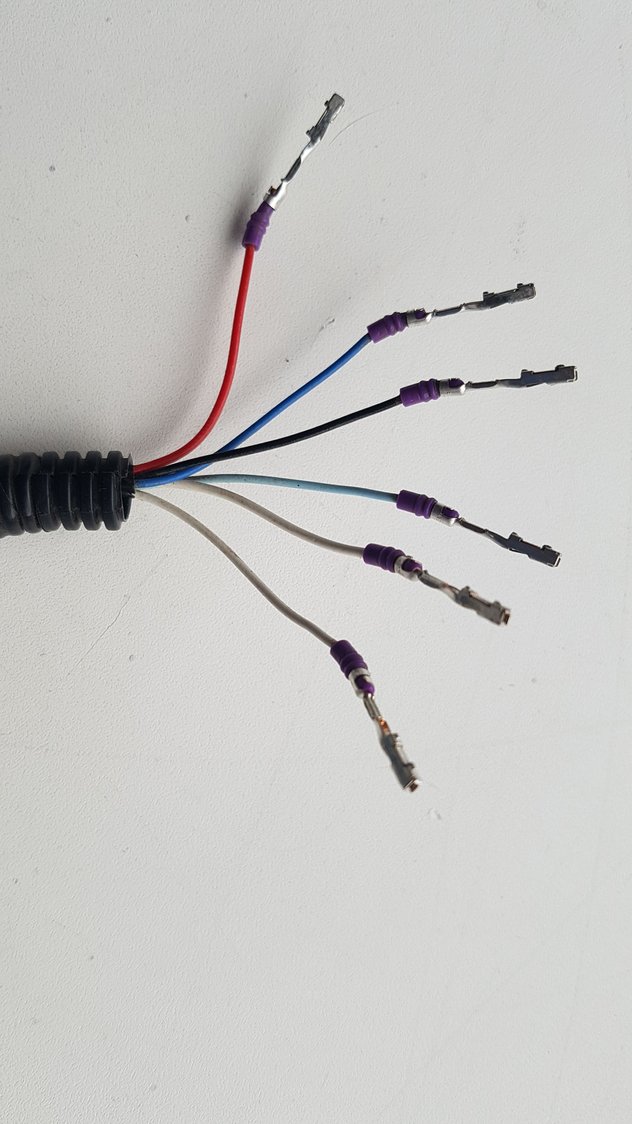

Sensor location. New connector without wires Wires left from old one.

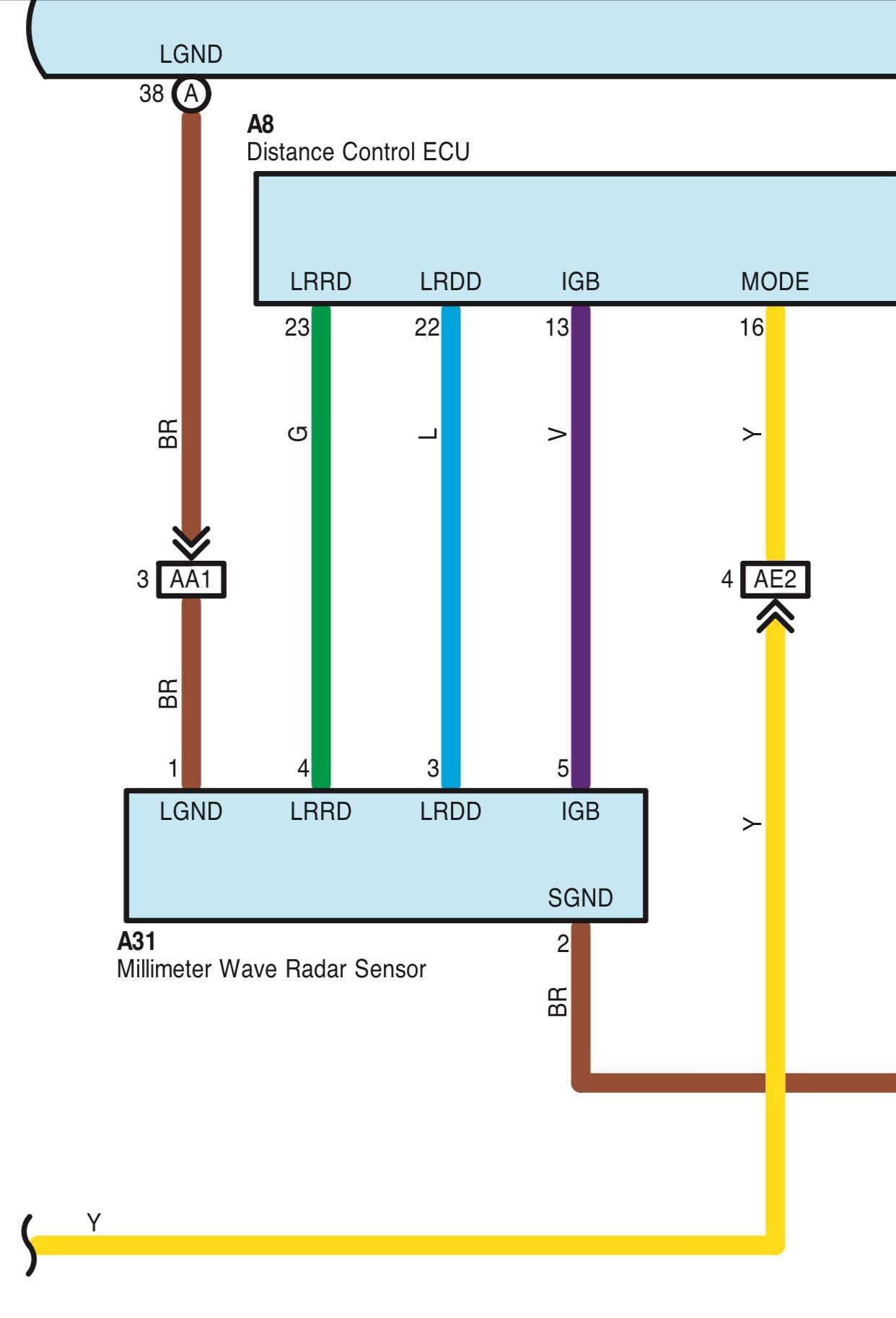

I intentionally made the Pin 3 wire a darker shade of blue to more closely match the actual wire color in your photo.

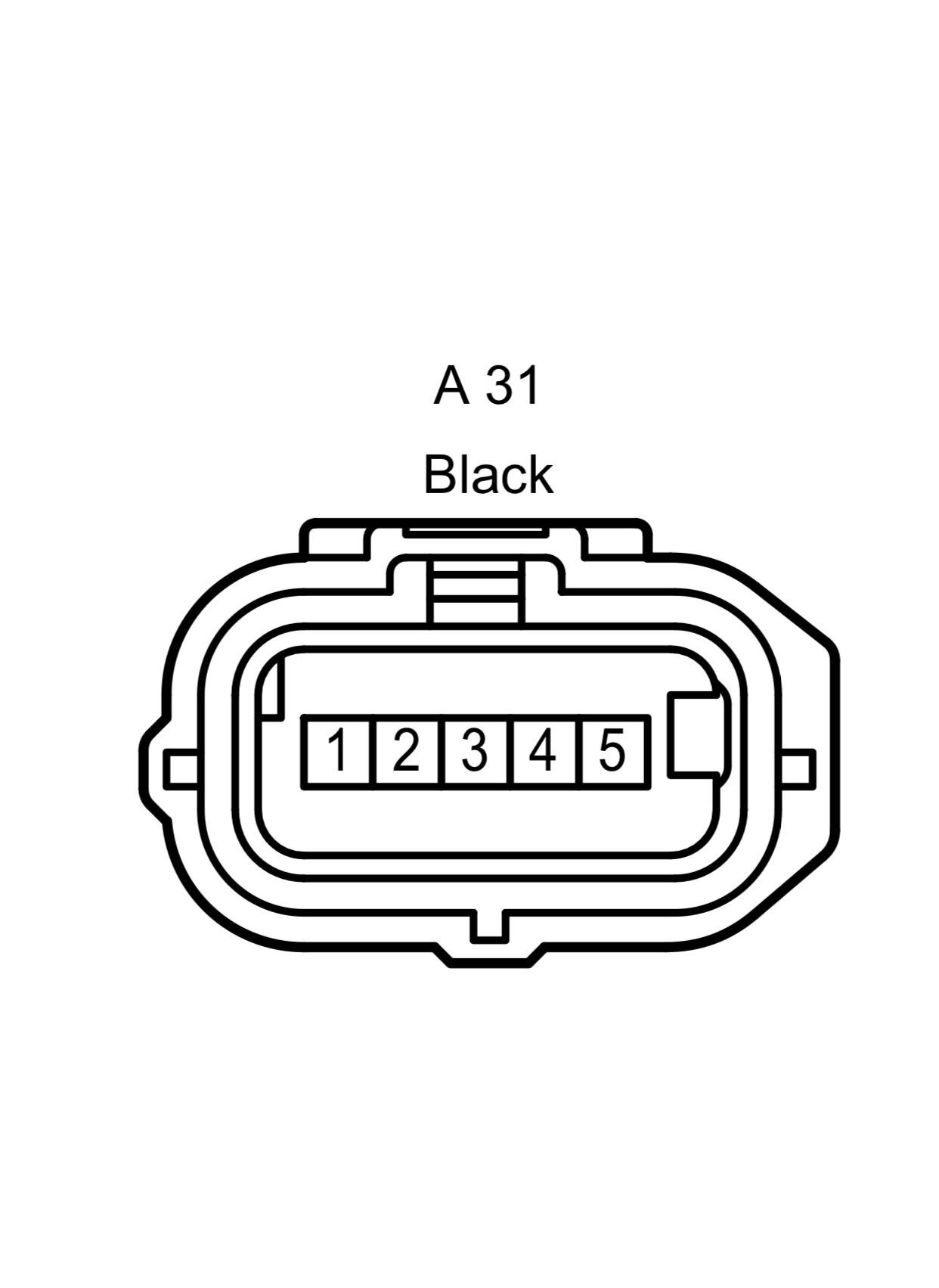

Also, note the alignment projections on the connector and drawing (red dashed circles) to properly orient the connector when making your connections.
