The alternator and charging system on the 2007 Lexus LS460 (equipped with the 4.6L 1UR-FSE V8 engine) is a computer-controlled setup designed for efficiency, fuel economy, and battery longevity. It's a Denso unit (typically rated at 130-150 amps) that integrates with the vehicle's electrical architecture to provide variable voltage output rather than a fixed rate like older systems. Here's a breakdown of how it operates:Key Components

• Alternator: Belt-driven by the engine crankshaft, it generates AC power, which is rectified to DC to charge the battery and power electrical loads. It includes an internal rectifier bridge, rotor/field coil, and a voltage regulator.

• Battery: Original spec is a Group 24R flooded lead-acid battery (though AGM upgrades are common and compatible).

• Sense Line (Voltage Sensing Wire): A dedicated wire (often green in the alternator's 4-pin connector) that monitors actual battery voltage and feeds it back to the system for regulation. This is not the main power output but a feedback loop.

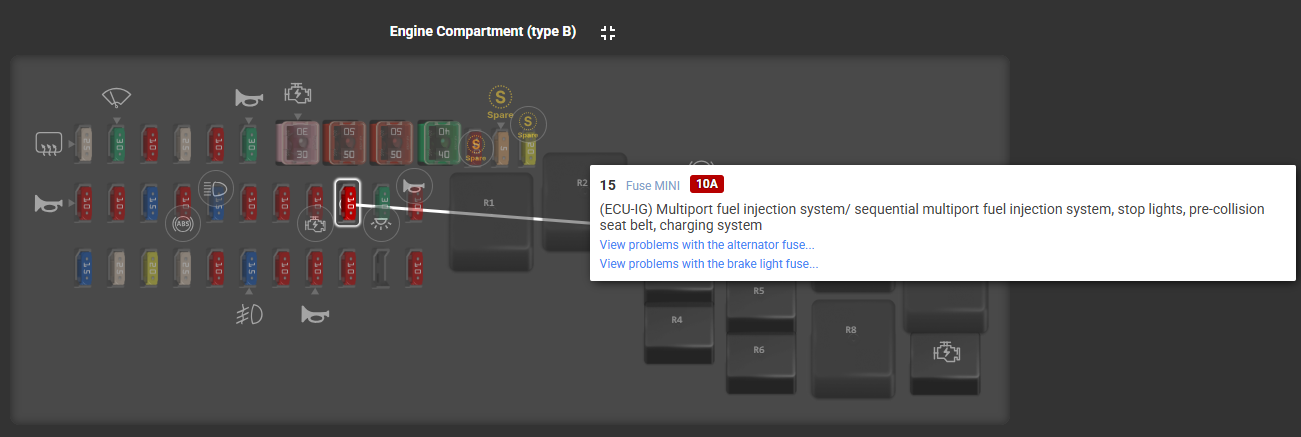

• Ignition Wire: Another wire (also green in the connector, fused with a 10A alternator fuse) that provides battery voltage to energize the alternator when the ignition is on.

• Control Wire: A signal wire (blue/red stripe in some diagrams) from the engine control module (ECM) that modulates the alternator's field current to adjust output voltage.

• ECM (Engine Control Module): The "brain" that oversees the entire system.


How It Works Step-by-Step

1. Excitation and Startup: When the ignition is turned on, the ignition wire supplies ~12V to the alternator's L (lamp) terminal, exciting the field coil. Once the engine starts (and the alternator spins above ~650 RPM), it begins generating power, sending a signal back through the L terminal to turn off the battery warning light on the dash.

2. Voltage Regulation: The system uses ECM-controlled variable voltage regulation (often called "intelligent charging" in Toyota/Lexus literature). The ECM receives inputs from:
   • Battery voltage via the sense line.

   • Battery temperature sensor (if equipped).

   • Engine load, RPM, and electrical demands (e.g., headlights, AC).

   • Battery state-of-charge (SOC) estimates based on driving patterns.

   The ECM then sends a PWM (pulse-width modulated) duty cycle signal (11-14V range) via the control wire to the alternator's regulator. This adjusts the field coil current:
   • Low Demand Mode: At idle or light loads, output drops to ~12.5-13.5V to reduce engine drag and improve MPG. The ECM may even briefly cut charging to prioritize fuel efficiency.

   • High Demand Mode: Under heavy electrical load or low SOC, it ramps up to 14.0-14.7V.

   • Target range: Typically 13.5-14.4V at the battery terminals under normal conditions, but the ECM caps it to prevent overcharging (e.g., above 14.7V could trigger faults).

3. Feedback Loop: The sense line continuously reports battery voltage to the ECM. If it detects low voltage, the ECM increases field duty cycle for higher output. If voltage is high (full battery), it reduces output to avoid gassing or damage.

4. Safety and Monitoring: The ECM monitors for faults like over/under-voltage, opens circuits, or regulator issues. Faults trigger the "Check Generator" or battery light, and it may log DTCs (e.g., P1630 for alternator control circuit). The system also integrates with the battery control module (if present) for hybrid-like efficiency features.

5. Output Flow: Generated DC power flows from the alternator's B+ terminal through a fusible link (140A main fuse in the engine bay) to the battery positive terminal, splitting to power loads and recharge the battery.


This setup differs from traditional alternators with standalone regulators—here, the ECM dynamically optimizes charging to extend battery life and reduce parasitic drag (up to 5-10% MPG gain).Regarding the Diode Mod on the Sense LineYes, the clublexus.com user (in a similar thread for the GX460, which shares the same Toyota/Lexus platform and Denso alternator architecture) is proposing a common DIY hack for AGM batteries. AGM cells require a slightly higher sustained charge voltage (13.8-14.4V, ideally closer to 14.4V for full absorption) compared to flooded lead-acid (13.2-13.8V) to prevent sulfation, but the stock ECM targets the lower end for longevity.

• How the Mod Works: Insert a silicon diode (e.g., 1N4001 or AC Delco equivalent, ~$4) in series with the sense line wire (the non-fused green wire in the alternator's 4-pin plug). Diodes have a forward voltage drop of ~0.6-0.7V. This makes the ECM "see" the battery voltage as 0.7V lower than actual (e.g., real 13.8V reads as 13.1V to the ECM), tricking it into commanding higher alternator output to "catch up." Post-install measurements in the thread showed ~0.5V gains (e.g., from 13.3V to 13.8V), stabilizing closer to AGM specs without overvolting the rest of the system.

• Implementation Notes from the Thread:
  • Solder or crimp the diode inline, ideally with a small fuse (1-2A) for protection (diodes don't handle shorts well).

  • Alternatives discussed: Commercial boosters like HKBelectronics ($45, adjustable 0.5-1V boost) or Arclight ($60, with modes for reg/low/high boost), which avoid DIY risks.

  • Concerns: Potential ECM confusion if the drop isn't consistent (e.g., heat-affected), warranty voiding, or triggering faults if voltage spikes. One user suggested a battery tender for off-vehicle charging instead. It worked for the OP without issues, but YMMV—test voltages before/after at idle and highway speeds.


For the LS460 specifically, the wiring is identical to the GX in this regard, so it would apply directly—just confirm pinout via a multimeter (battery voltage on the fused green wire).

But I was trying to find an easier way.

So, the question is - is the RLO wire connected to any fuse at all?
