Battery tray / battery hold down issue. 2006 Ls430 ML. Anyone else? Solution?
Thread Starter
Driver
Joined: Jan 2021
Posts: 98
Likes: 5
From: FL
Battery tray / battery hold down issue. 2006 Ls430 ML. Anyone else? Solution?
I removed my battery once to charge it, and then again later for replacement. I noticed that the 'battery hold down bolt' which is closer to the front of the car has an issue. It will not tighten firmly against the battery. It seems there is nothing for the hook at the bottom of the bolt to grab onto. I can't figure out if the tray is broken or what. I have looked at diagrams of the tray and bolt and don't see what might be the problem.
I guess my next step will be to go to the stealership parts department and look at a new tray, a new bolt, and see if I can see if I can see how it goes together.
I'll try to see if I see a difference between the new one and the one on my car. Hopefully the parts guy can shed some light, some expertise.
If anyone has observed this issue, and noticed a loose 'hold down bolt' closest to the front of the car, please let me know. Naturally I'd also love to read about a solution as well.
Thanks in advance for any response.
I guess my next step will be to go to the stealership parts department and look at a new tray, a new bolt, and see if I can see if I can see how it goes together.
I'll try to see if I see a difference between the new one and the one on my car. Hopefully the parts guy can shed some light, some expertise.
If anyone has observed this issue, and noticed a loose 'hold down bolt' closest to the front of the car, please let me know. Naturally I'd also love to read about a solution as well.
Thanks in advance for any response.
Lexus Fanatic
Joined: Sep 2010
Posts: 25,917
Likes: 4,274
From: Alberta
Should be able to figure out via this diagram
https://www.japan-parts.eu/lexus/us/...rier?pnn=74413
One of the bolts probably hooks into the frame rail the other one, around something.
https://www.japan-parts.eu/lexus/us/...rier?pnn=74413
One of the bolts probably hooks into the frame rail the other one, around something.
Racer
Joined: Mar 2018
Posts: 1,271
Likes: 380
From: ESSEX, UK

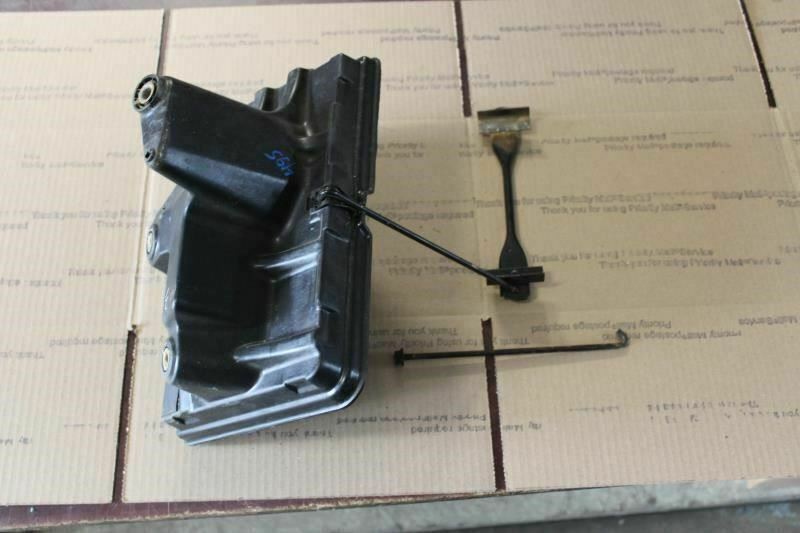

Mine is the same. I bought another battery tray from eBay and that one broke too as soon as I tightened the bolt.
I currently have my battery held down with a strap but I have fabricated a bracket for the tray so I can use the original brackets.
Hopefully it will work. The battery tray is a crap design.
I currently have my battery held down with a strap but I have fabricated a bracket for the tray so I can use the original brackets.
Hopefully it will work. The battery tray is a crap design.
Lexus Champion
Joined: Oct 2007
Posts: 2,489
Likes: 107
From: AZ
The front hook (closer to front of car) does not hook into the battery tray. When installing this hook, the hook must face forward. It then must be inserter into a hole that is drilled into the metal structure ahead of the tray. It can hardly be seen but you can tell when it is properly inserted. You can then tighten it as much as you want. The tray is not at fault. If you did manage to hook it into the tray, the battery would not be secured in place, only attached to the tray. Hope this helps.
Racer
Joined: Mar 2018
Posts: 1,271
Likes: 380
From: ESSEX, UK
The front hook (closer to front of car) does not hook into the battery tray. When installing this hook, the hook must face forward. It then must be inserter into a hole that is drilled into the metal structure ahead of the tray. It can hardly be seen but you can tell when it is properly inserted. You can then tighten it as much as you want. The tray is not at fault. If you did manage to hook it into the tray, the battery would not be secured in place, only attached to the tray. Hope this helps.
I'll have a look at it tomorrow and see if I can see what it hooks to and take some photos, if my back will let me.
The tray is bolted to the car with 2 decent sized bolts and some big penny washers so the battery is currently very secure.
Trending Topics
ClubLexus Stories
Celebrating Lexus & Toyota from Around the Globe
Top 10 Lexus & Toyotas to Drive Before You Die!
Joe Kucinski
Top 10 Lexus/Toyotas With The LEAST 5-Year Depreciation
Joe Kucinski
Lexus LC500 Convertible Auction: A Preview of Rising Values?
Brett Foote
GX 550 vs TX 550: Best 3-Row Luxury Lexus Family Hauler
Michael S. Palmer
9 Best Lexus Models You Can Buy for Half Price (And 1 You Shouldn't!)
Joe Kucinski
2026 Lexus NX Buyer's Guide: Models, Features, Prices & More!
Brett Foote
Top 10 Reasons to Buy a Lexus TX 550h+ (& 3 Reasons to AVOID!)
Michael S. Palmer
Top 10 Lexus & Toyota Models of the 1990s RANKED!
Joe Kucinski
10 Great Toyotas That Could Have Been Lexus Models
Joe Kucinski
Lexus Champion
Joined: Oct 2019
Posts: 17,926
Likes: 1,702
From: Ohio
I was too lazy to go over to the 430, I made the post since I was in the garage near the 60 changing overhead lights lol!
Thread Starter
Driver
Joined: Jan 2021
Posts: 98
Likes: 5
From: FL

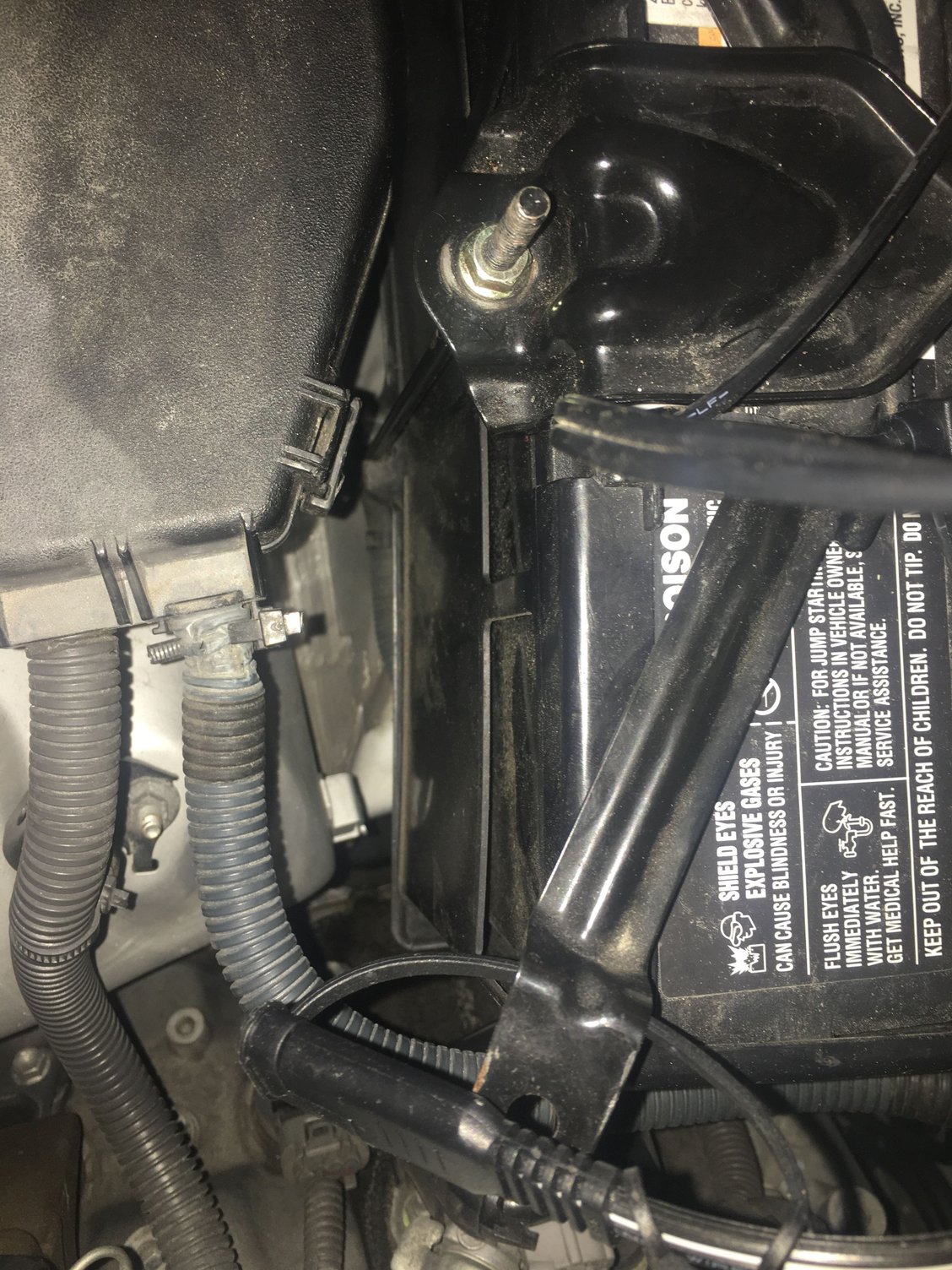

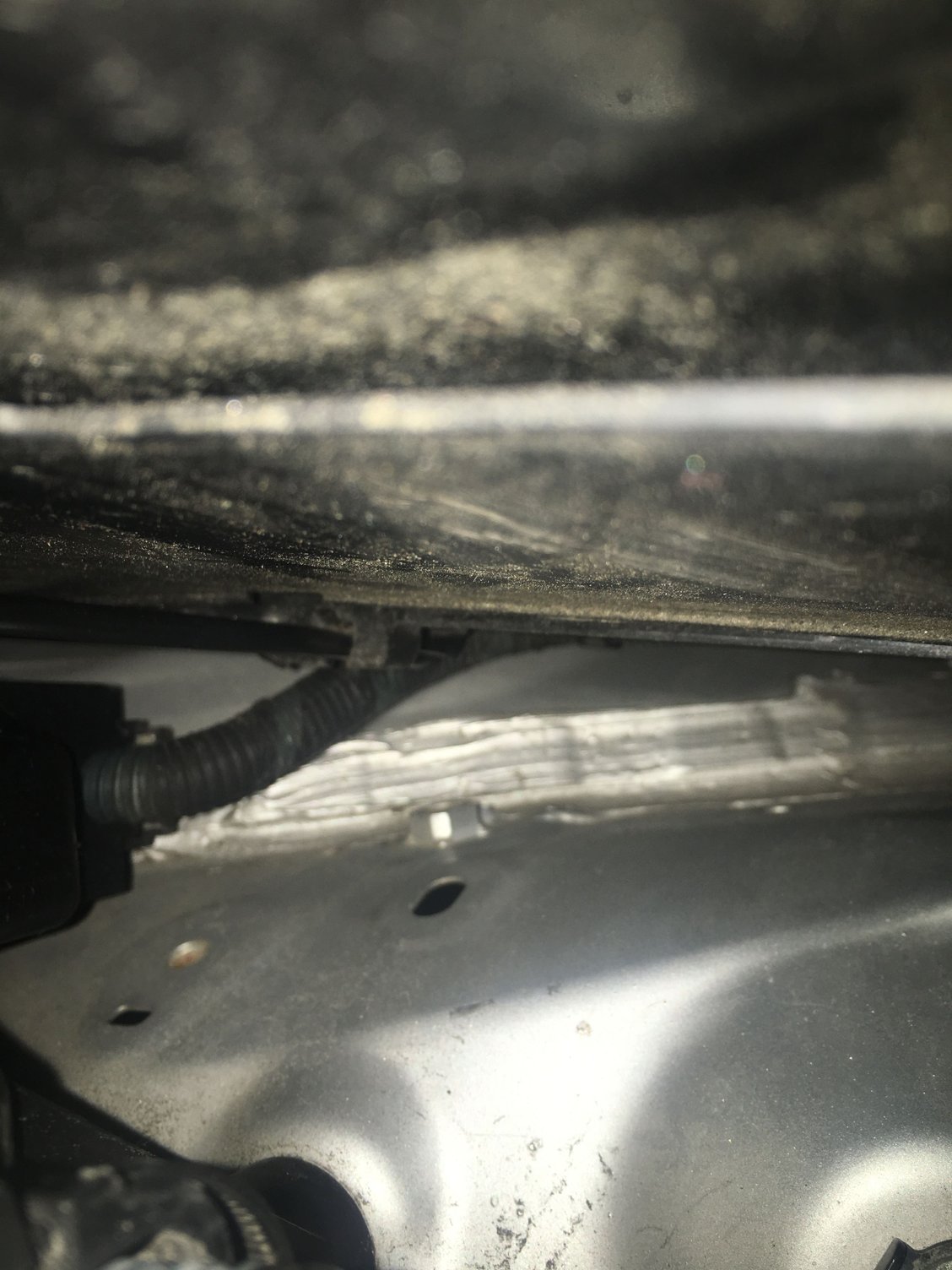

My corner mechanic, who is also a good friend of mine fixed my problem by hooking my battery hold down bolt into the hole in the metal, NOT the battery tray.
