Liquid Platinum “Take 2”
Continued from page 12....
Had to modify the RT Apron for piping. Decided to install sound pad to make it look a bit cleaner
Lower piping being ran through apron
Intercooler installed. Aligning the piping
Also had to trim the RT Reinforcement extension on the bottom. Nothing serious
Had to modify the RT Apron for piping. Decided to install sound pad to make it look a bit cleaner
Lower piping being ran through apron
Intercooler installed. Aligning the piping
Also had to trim the RT Reinforcement extension on the bottom. Nothing serious
Last edited by biggame; Sep 29, 2019 at 07:48 PM.
Had to modify the RT upper support for intake piping. Support is covered by a plastic shield
All upper piping / air filter mocked up. Time to tighter everything down
All upper piping / air filter mocked up. Time to tighter everything down
Last edited by biggame; Sep 29, 2019 at 07:41 PM.
Driver
Joined: Oct 2017
Posts: 180
Likes: 8
From: California
For maximum air flow to intercooler we had to modify the reinforcement....See Below
We went ahead and refinished the reinforcement. Even though it's not seen, I think it looks way cleaner this way
We went ahead and refinished the reinforcement. Even though it's not seen, I think it looks way cleaner this way
Last edited by biggame; Sep 28, 2019 at 11:18 PM.
Had to modify my exhaust for the PLX A/F boost gauge
Before
Bung hole installed for A/F O2 sensor
after
Exhaust back in place with A/F sensor installed for gauge
Before
Bung hole installed for A/F O2 sensor
after
Exhaust back in place with A/F sensor installed for gauge
Last edited by biggame; Sep 28, 2019 at 11:22 PM.
Supercharger oil reservoir, filter, and oil cooler installed
Reinforcement installed...The modification made to the reinforcement matched perfectly with the intercooler
Reinforcement installed...The modification made to the reinforcement matched perfectly with the intercooler
Last edited by biggame; Sep 29, 2019 at 07:38 PM.
loll
lol
Cut the absorber to match the reinforcement for maximum airflow
To keep air flow going to the intercooler, we had to cut the inside of the bumper to match the reinforcement
Cut lines marked
Perfect cutout!

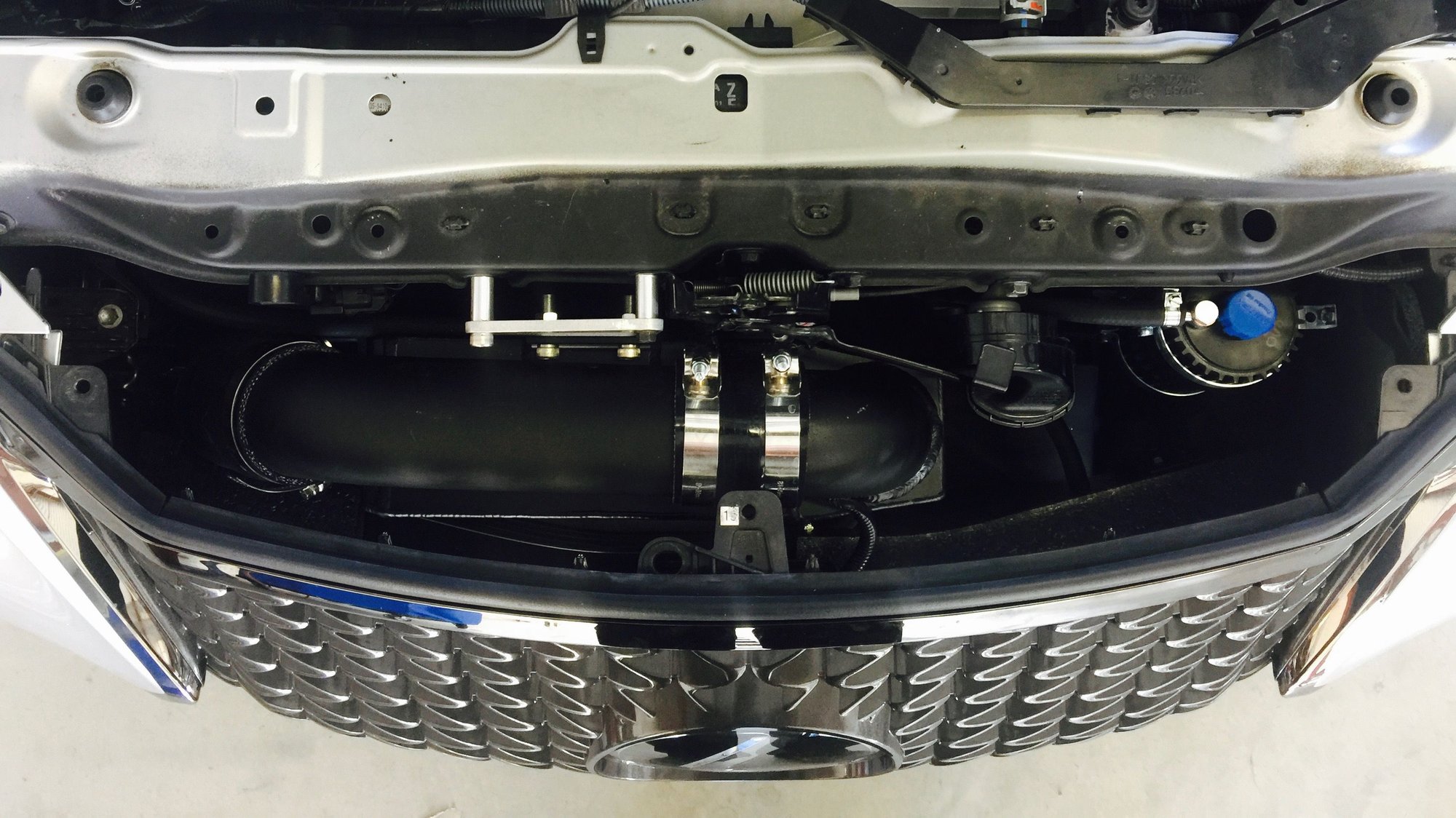

Bumper installed! With the upper shield removed you can see how nice everything fits. Also, easy access to the oil reservoir
To keep air flow going to the intercooler, we had to cut the inside of the bumper to match the reinforcement
Cut lines marked
Perfect cutout!
Bumper installed! With the upper shield removed you can see how nice everything fits. Also, easy access to the oil reservoir
Last edited by biggame; Sep 28, 2019 at 11:39 PM.
