Poor Man's Aux input
There has been a lot of discussions of various options for Aux input on the SC430 radio, but I wanted to propose a very simple one.
All the necessary signals are located on the center connector on the back of the radio. This is the external CD changer port (5+7 connector). Currently only two wires occupy that space on the <2005 models. These are the IEBUS signals that goes on to the Navigation ECU. You will want to keep that connected.
So, anyway, you pick up a Y cable for about $12
You can either plug the original cable into one end of the connector and cut off the other for the wiring, or cut off both connectors and just wire those IEBUS pins tothe single connector. Either way, we are not monkeying with those signals.
And an 3.5mm audio extension cable. Cut off one end (whether you want a female or male connector)
Usually you will find red, white, and a braided shield or black wire. The red is right audio, white is left audio, and the black or braided wire is your signal grounds (L-/R-)
All you want to do is connect your audio device L/R audio signal to the R+/L+ pins and their shields to the L-/R- pins. If you want to wire in a pre-amp (because a headphone output is not very strong) you even have the ACC line on this connector to get 12V
Now you simply tune to an empty AM channel. Even though there will be some static, your audio will override it and the radio will filter the static out.
Since the radio thinks you are on a radio station, the volume, bass, etc... controls still work. The disadvantage is that the radio goes up, of course.
You can do this also in tape mode, but at least on mine if there is no audio on the tape, the radio will eject it. CD mode could work if you made a CD with silence.
Certainly not the most elegant solution, but you can get Aux on your radio for about $15. No modding to your radio or wiring, and you can just pull it back out and return to normal.
If the above is not self-explanatory, let me know.
All the necessary signals are located on the center connector on the back of the radio. This is the external CD changer port (5+7 connector). Currently only two wires occupy that space on the <2005 models. These are the IEBUS signals that goes on to the Navigation ECU. You will want to keep that connected.
So, anyway, you pick up a Y cable for about $12
Amazon.com: APPS2CAR Toyota Lexus Scion 5+7 Pin to 5+7 Pin & 5+7 Pin Y Cable Radio Wiring Harness For USB Adapter CD Changer Navigation Device (Y-TYT02): Automotive
You can either plug the original cable into one end of the connector and cut off the other for the wiring, or cut off both connectors and just wire those IEBUS pins tothe single connector. Either way, we are not monkeying with those signals.
And an 3.5mm audio extension cable. Cut off one end (whether you want a female or male connector)
Usually you will find red, white, and a braided shield or black wire. The red is right audio, white is left audio, and the black or braided wire is your signal grounds (L-/R-)
All you want to do is connect your audio device L/R audio signal to the R+/L+ pins and their shields to the L-/R- pins. If you want to wire in a pre-amp (because a headphone output is not very strong) you even have the ACC line on this connector to get 12V
Now you simply tune to an empty AM channel. Even though there will be some static, your audio will override it and the radio will filter the static out.
Since the radio thinks you are on a radio station, the volume, bass, etc... controls still work. The disadvantage is that the radio goes up, of course.
You can do this also in tape mode, but at least on mine if there is no audio on the tape, the radio will eject it. CD mode could work if you made a CD with silence.
Certainly not the most elegant solution, but you can get Aux on your radio for about $15. No modding to your radio or wiring, and you can just pull it back out and return to normal.
If the above is not self-explanatory, let me know.
#2
This is a great find and one that should help many!
Question: When adding an input using the adapter sold by VAIS Technology, the music source shows up as a new mode, "CD1" Is that something that could be achieved using your plan?
Question: When adding an input using the adapter sold by VAIS Technology, the music source shows up as a new mode, "CD1" Is that something that could be achieved using your plan?
#3
Lead Lap
Thread Starter
With the poor man's mod, your radio is not aware of any external input and that is why you need to chose a mode with silence. The volume and everything works to control the amp, you are simply mixing your audio on top of the radio/CD/Tape, etc... which, if silent, means only your audio.
If all you want is an AUX input on your radio, this will do the trick.
I actually have all the parts to do this (actually, I have tested it already informally and it works great), and I need an aux input to hold me over until I finish the CarPC, so I am planning to put together some photo instructions hopefully later today.
Last edited by Retroplay; 05-07-16 at 06:46 AM.
#5
Lead Lap
Thread Starter
No need to take apart the radio for the mod I proposed.
Last edited by Retroplay; 05-07-16 at 08:00 AM.
#6
Lead Lap
Thread Starter

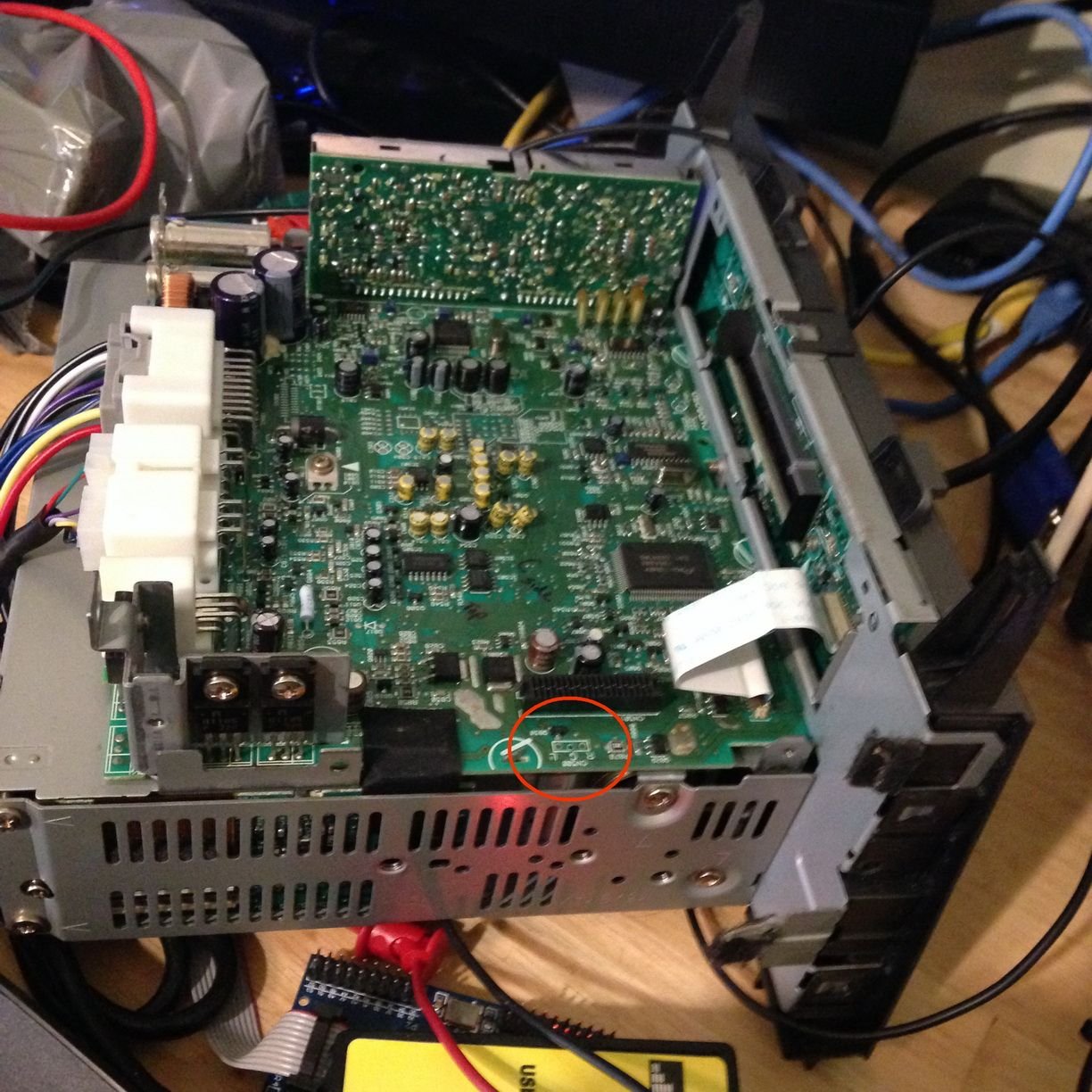

To show you where the connector is that Tuterz is pointing out, here is my spare radio with the cover off already:
I circled where the connector is. I removed the pins on mine a while back.
It's really not all that scary to take that cover off if you prefer that route. There is no advantage or disadvantage to doing it either way, though. Same result.
I circled where the connector is. I removed the pins on mine a while back.
It's really not all that scary to take that cover off if you prefer that route. There is no advantage or disadvantage to doing it either way, though. Same result.
Trending Topics
#8
Lead Lap
Thread Starter
The video on it. Lexus Auxillary Stereo Input Hack - YouTube
#9
Lead Lap
Thread Starter
Either way you do this, this is optional but will make the audio from a headphone jack sound a lot better without having to crank up your radio volume. Recommended, but optional. It won't hurt anything if you do not build this, but you will probably need to max the volume on your phone and crank the radio up quite a bit to get a reasonable volume without it:
All this does is impedance match the output of the headphone jack for maximum power transfer.
All this does is impedance match the output of the headphone jack for maximum power transfer.
#13
Pole Position
Here is an interesting find. It is a Bluetooth adapter for your cassette.
This allows your cassette player to interface with the music on your phone.
I am not sure how it would work with the Built in Hands Free Phone system in the car, but I suspect there is maybe a setting on your phone that would let you select which Bluetooth does what.
This allows your cassette player to interface with the music on your phone.
I am not sure how it would work with the Built in Hands Free Phone system in the car, but I suspect there is maybe a setting on your phone that would let you select which Bluetooth does what.
#14
Lead Lap
Thread Starter
Sorry for the late replay. I actually bought two of those exact adapters because I thought the first one was just defective (and you get no customer service) but after the second one, I am convinced that it simply doesn't work with our radios. All the right hardware is in there, so it must be the software. My guess is that is using the wrong address for the head unit.
Well, technically, I bought the USB version that could play MP3s off from a flash drive, but it is really the same thing as this one (the board inside has layout variations for different types.)
Well, technically, I bought the USB version that could play MP3s off from a flash drive, but it is really the same thing as this one (the board inside has layout variations for different types.)
#15
Here is an interesting find. It is a Bluetooth adapter for your cassette.
This allows your cassette player to interface with the music on your phone.
http://www.amazon.com/gp/product/B00...VXR06MW1WK6JKC
I am not sure how it would work with the Built in Hands Free Phone system in the car, but I suspect there is maybe a setting on your phone that would let you select which Bluetooth does what.
This allows your cassette player to interface with the music on your phone.
http://www.amazon.com/gp/product/B00...VXR06MW1WK6JKC
I am not sure how it would work with the Built in Hands Free Phone system in the car, but I suspect there is maybe a setting on your phone that would let you select which Bluetooth does what.
Battery life wasn't great, so I purchased a spare one that i keep charged in the lower console.
Hope that helps,
