NX 2019, trunk lights and trunk power outlet not working
Originally Posted by NXOwner
Are there fuse box diagrams available for the three fuse boxes in the NX? The manual just shows the location of the three fuse boxes, but not a "legend" or map of each fuse, their amperage, or what they protect .
trunk
Hello, trunk light ans trunk power outlet not working on my NX from 2019
I am wondering which fuse could be the cause.
Is there a common fuse? where can I find it? thanks in advance!
regards
Check 10A dome fuse in the engine compartment and 15A power outlet No.1 fuse in the left end of dash instrument panel.
hello, thanks for the tip.
For the dome fuse not sure to know which one it is.
but I have checked continuity of all the 10A fuses in this fuse box and all seem to be ok...
for the 15A power outlet fuse, I checked it too and it is OK...
Is there any switch anywhere in the car to stop light and power outlet in the trunk?
If you have other ideas, it would be welcome!
Regards

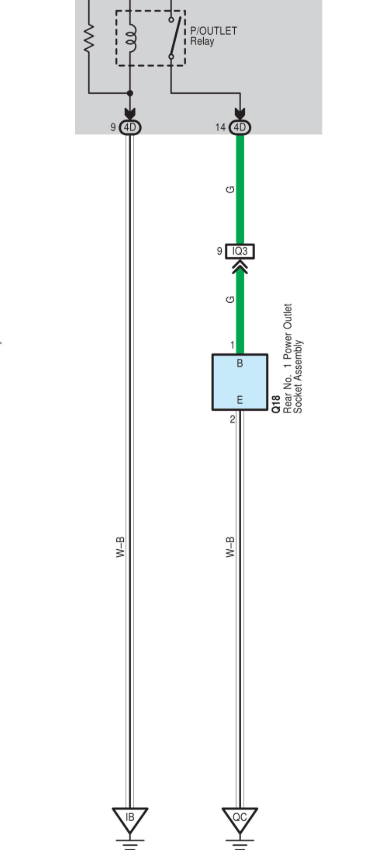

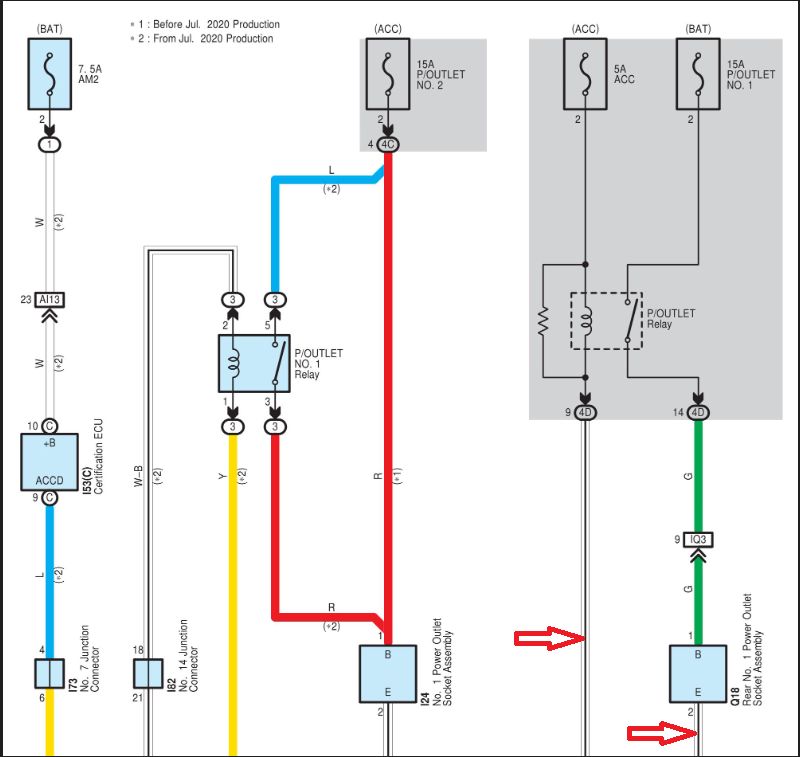

Check 5A ACC fuse instrument panel. Two red arrows are pointed to the ground wires. If you know how to read the electrical diagram then here you go, if you don't then let me know.
Check 5A ACC fuse instrument panel. Two red arrows are pointed to the ground wires. If you know how to read the electrical diagram then here you go, if you don't then let me know.
thanks. I am not an expert in electricity but my understanding is that a blown acc fuse could prevent to switch on the relay sending current to rear plug outlet.
Actually I have now real doubts if my problem really comes from fuses because I checked all of them including the 5V acc one and everything seems OK on this side.
Also I wanted to clarify (to avoid any misunderstanding):
When I am talking about trunk power outlet and lighting, I mean in the luggage compartment.
I do not know whether those have been working in the past because the car was used when I purchased it at Lexus and I never paid attention at this until I wanted to use the plug to connect a small air compressor.
Regards.
You have 3 power outlets: No.1, the center console for driver. No.2, the back of center console for rear seats and Rear No.1 (luggage compartment).
Test the green wire for power with the key switch to acc. If there is no power, then test the two ground wires with the red arrows pointing at them. If both ground wires are good, then check the P/Outlet relay.
You have 3 power outlets: No.1, the center console for driver. No.2, the back of center console for rear seats and Rear No.1 (luggage compartment).
Test the green wire for power with the key switch to acc. If there is no power, then test the two ground wires with the red arrows pointing at them. If both ground wires are good, then check the P/Outlet relay.
Best of luck!
thanks for your tips.
one more question:
where is located the P/Outlet relay?
how can I test it ?
what should trigger the switch of the relay?
thanks in advance
