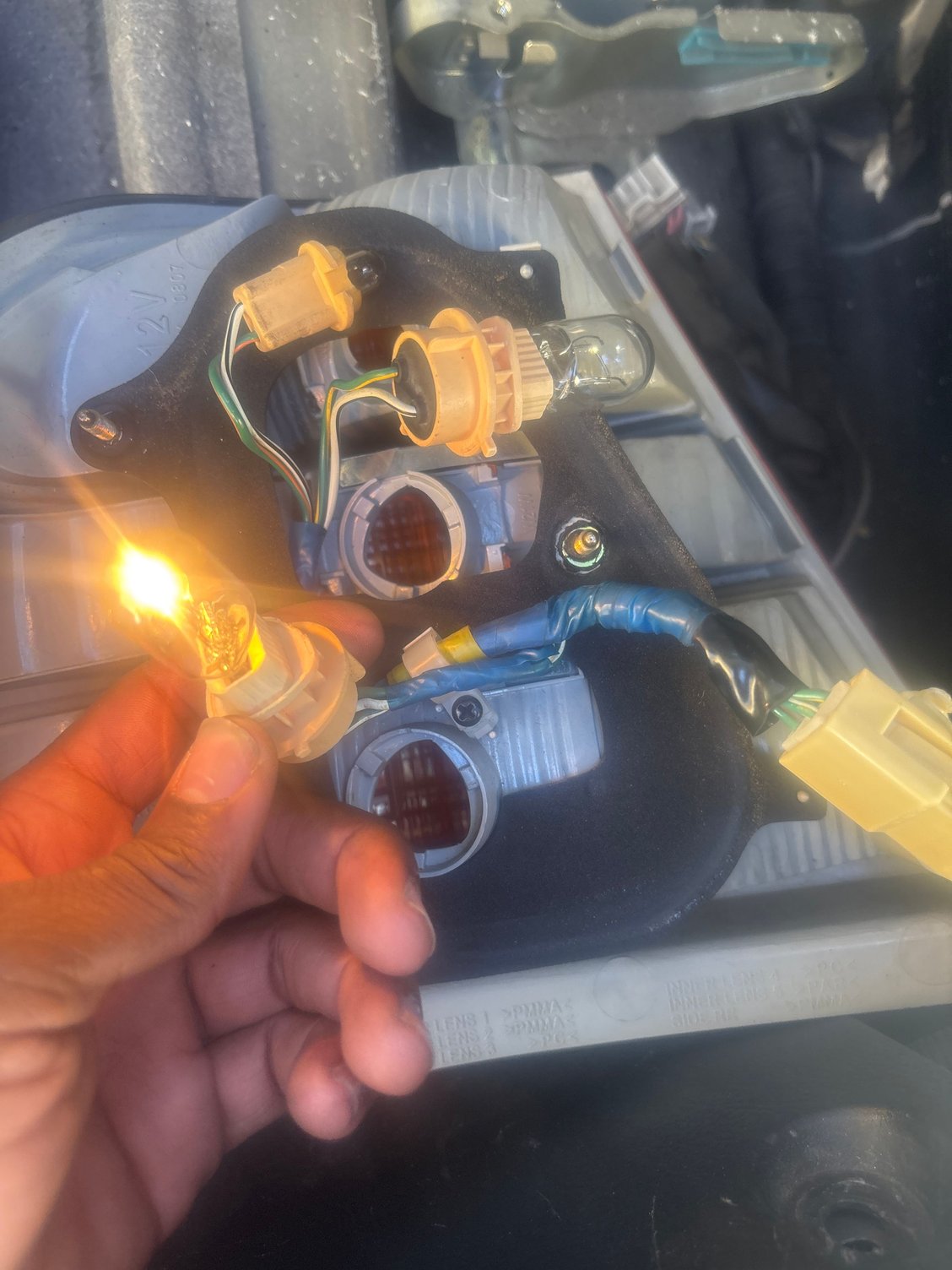

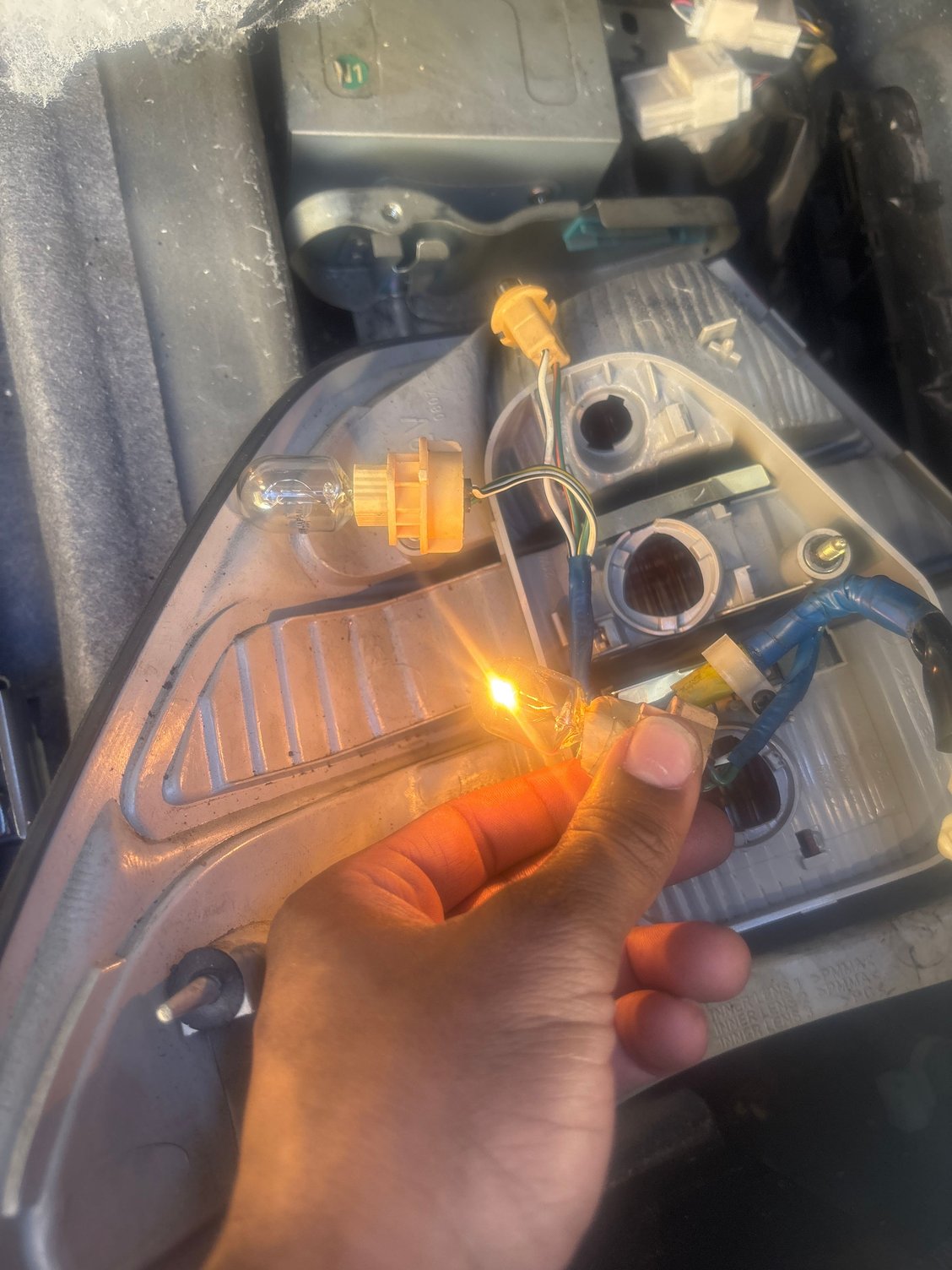

The top right bulb on my outer tail light doesn’t turn on , I’ve replaced the bulb and the whole tail light it’s self . My 3rd brake light works Old tail light , top is out New taillight and once again top is still out
All the fuses in my trunk are working , please let me know if yall know the issue
You tried two different tail light assemblies, yes?
Are you using two different wire harnesses or the same one?
If it's the same harness, you might have a bad socket.
If it's a different harness, you need to confirm +12v from the harness connector back. There's an open somewhere in the circuit.
Yes it’s the only bulb that is out, Yes2 different light assemblies . I’m using 2 different wire harnesses for the light but the same one from the trunk
Last edited by JetJerry; Nov 17, 2024 at 07:48 AM.
Just to make sure, this is the location that has the problem, yes?
The attachment is the tail light circuit. It's difficult to ID the bulb/socket that's dead just from looking at the diagram. This is because of the discrepancy in wire color between your images and the circuit diagram. I think the bulb/socket in question is on Page 164.
If I were to take a SWAG, the problem is probably here:
Just to make sure, this is the location that has the problem, yes?
The attachment is the tail light circuit. It's difficult to ID the bulb/socket that's dead just from looking at the diagram. This is because of the discrepancy in wire color between your images and the circuit diagram. I think the bulb/socket in question is on Page 164.
If I were to take a SWAG, the problem is probably here:
Yes only in that highlighted section. Thank you for the diagram I will check tomorrow .
Yes only in that highlighted section. Thank you for the diagram I will check tomorrow .
Originally Posted by paulo57509
Just to make sure, this is the location that has the problem, yes?
The attachment is the tail light circuit. It's difficult to ID the bulb/socket that's dead just from looking at the diagram. This is because of the discrepancy in wire color between your images and the circuit diagram. I think the bulb/socket in question is on Page 164.
If I were to take a SWAG, the problem is probably here:
so I looked at it and I couldn’t find where these wires were
so I looked at it and I couldn’t find where these wires were
The wire with the red arrow is your turn signal and the two wires with green arrows are your taillights.
Connect a test light or a multimeter to the wires with the green arrow, one of which should light up your testlight or give you a 12V reading. The other probably will give you no reading.
Disconnect the connector, clean both male and female pins. Measure voltage (headlight on) at the pins of the two wires with the green arrow. If both have 12V, then your problem is a dirty connector. If not, then you will need to measure it at the luggage room J/B ECU.
