Old Mar 1, 2018 | 06:50 PM
  #31
chriso5573's Avatar
chriso5573
Driver

Joined: May 2015
Posts: 121
Likes: 7
From: CA
Default 2009 pinout

While looking in TIS for items relating to a power folding mirror mod I'm working on I figured I'd grab the pinouts for the nav for the camera. Here is the 2009 Pinout which the guide was written for
Attached Thumbnails Front camera installed-screen-shot-2018-02-25-at-1.05.58-pm.png   Front camera installed-screen-shot-2018-02-25-at-1.06.25-pm.png   Front camera installed-screen-shot-2018-02-25-at-1.06.47-pm.png
Reply
Old Mar 1, 2018 | 06:56 PM
  #32
chriso5573's Avatar
chriso5573
Driver

Joined: May 2015
Posts: 121
Likes: 7
From: CA
Default 2012 dvd

Here's the DVD version of a 2012 nav. I thought after 2010 they were all HDD nav, but I guess not according to TIS. Just like the 2009 nav, the two wires that need splicing are on different connectors.
Attached Thumbnails Front camera installed-screen-shot-2018-02-25-at-1.01.58-pm.png   Front camera installed-screen-shot-2018-02-25-at-1.02.29-pm.png   Front camera installed-screen-shot-2018-02-25-at-1.02.41-pm.png
Reply
Old Mar 1, 2018 | 07:03 PM
  #33
chriso5573's Avatar
chriso5573
Driver

Joined: May 2015
Posts: 121
Likes: 7
From: CA
Default 2012 hdd

Here is the pinout for the 2012 with a hard drive. No difference from the dvd version for the backup camera.
Attached Thumbnails Front camera installed-screen-shot-2018-02-25-at-12.59.34-pm.png   Front camera installed-screen-shot-2018-02-25-at-1.13.16-pm.png   Front camera installed-screen-shot-2018-02-25-at-12.59.52-pm.png
Reply
Old Jul 27, 2018 | 03:46 PM
  #34
speeddem0n's Avatar
speeddem0n
Pit Crew
iTrader: (7)

Joined: Jul 2014
Posts: 216
Likes: 3
From: Texas
Default



I got this same cam (sv-7620t) back in May and just installed it last night using a different method, I don’t like cutting into the factory harnesses. I have a Vaistech unit installed so I’m able to use my HDMI input connection with a converter. Anyhow, the svtcam reversed the image, the jumper only removed the guidelines. Is it even possible to reverse the image in this particular cam?
Reply
Old Nov 20, 2018 | 04:04 PM
  #35
antnguyen's Avatar
antnguyen
Thread Starter
Driver School Candidate

Joined: Mar 2016
Posts: 24
Likes: 26
From: Ca
Default

I've been away from CL for awhile so I just saw this. It's awesome to see someone else complete this mod! If you got the same camera as I did, I think it should have a second jumper to reverse the image, maybe they sent you the wrong camera? Anyways, after a year and tons of money spent on car mods, I would say this is my favorite mod I've done so far.
Reply
Old Jan 7, 2019 | 07:24 AM
  #36
Matt19810's Avatar
Matt19810
Driver School Candidate

Joined: Jan 2019
Posts: 3
Likes: 0
From: California
Default

Originally Posted by chriso5573
Here is the pinout for the 2012 with a hard drive. No difference from the dvd version for the backup camera.
What site are you finding the pinouts on?? I have download everything from TIS, but that doesn't give the pinouts diagram for my model...
Reply
Old Jan 7, 2019 | 09:40 AM
  #37
chriso5573's Avatar
chriso5573
Driver

Joined: May 2015
Posts: 121
Likes: 7
From: CA
Default

Matt19810,

It's on TIS. All he diagrams I posted are off of TIS under navigation I believe. It was so long ago I honestly don't remember the exact order to click on stuff. Hope that helps. Please post pics of the rear when you take yours out so I can double check it. Been so busy lately I still have the box of cable and parts sitting in the garage waiting to be installed in my ISF.

Chris
Reply
Old Jan 7, 2019 | 09:41 AM
  #38
chriso5573's Avatar
chriso5573
Driver

Joined: May 2015
Posts: 121
Likes: 7
From: CA
Default

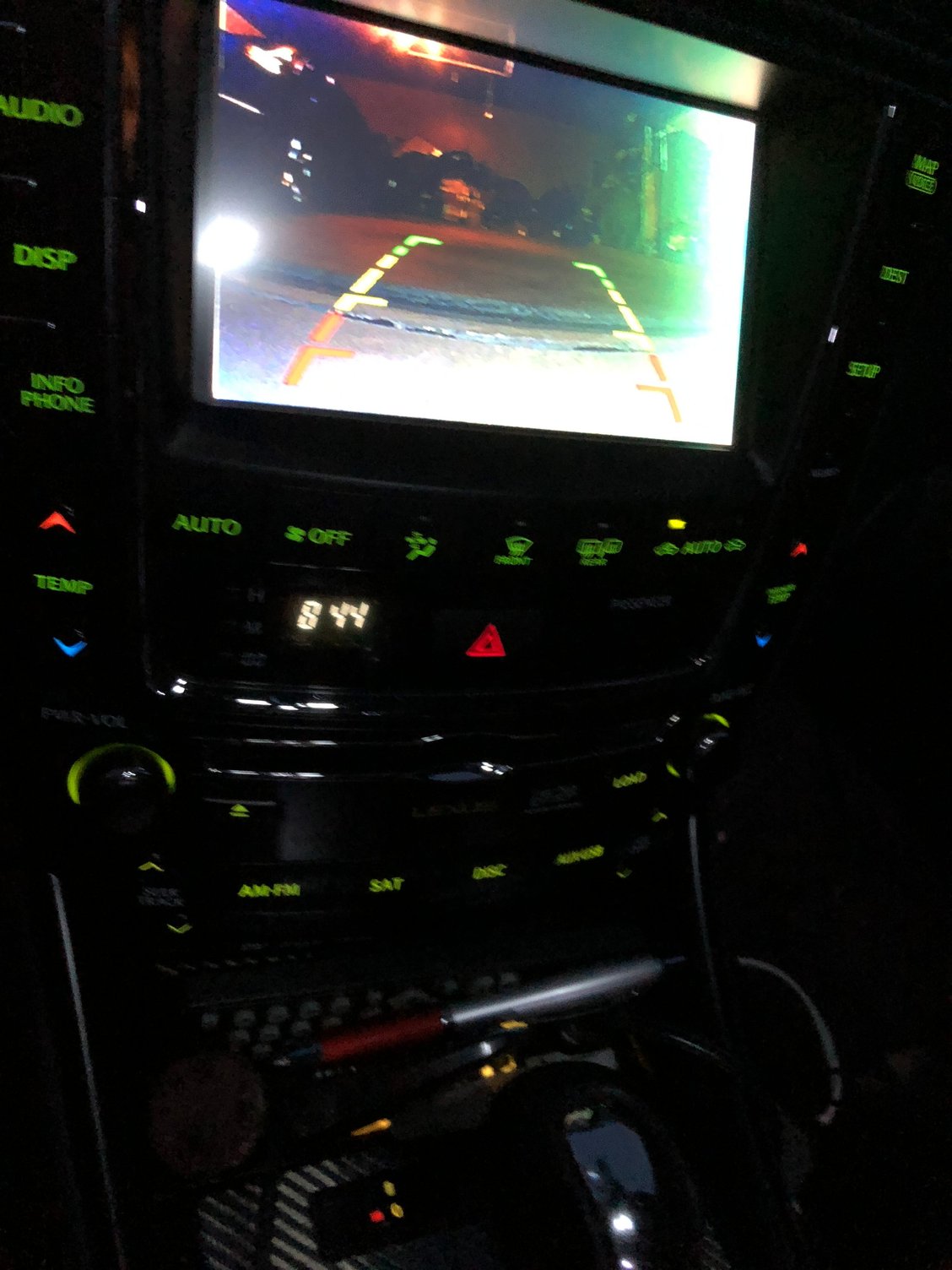

How did you get guide lines on your image?
Reply
Old Jan 7, 2019 | 01:29 PM
  #39
Rickna's Avatar
Rickna
Pole Position
10 Year Member
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2014
Posts: 2,023
Likes: 279
From: ConnectiTAX
Default

Originally Posted by chriso5573
How did you get guide lines on your image?
I believe it's built into the camera.
Reply
Old Jan 14, 2020 | 05:50 AM
  #40
ISFjimmy's Avatar
ISFjimmy
Lexus Test Driver
iTrader: (5)

Joined: Jan 2008
Posts: 806
Likes: 12
From: Texas
Default

Just recently completed this mod without a hitch. Loving it!
Reply
Old Aug 16, 2020 | 11:21 AM
  #41
Hughhtt's Avatar
Hughhtt
Driver School Candidate

Joined: Aug 2020
Posts: 1
Likes: 0
From: NY
Default

Hi, can you tell me what the purpose of the 12V DC Relay switch DPDT? Thanks!
Never mind, I just saw from ebay. It is to use with the switch.

Last edited by Hughhtt; Aug 16, 2020 at 11:48 AM.
