Camshaft position wiring

Help Please,
I have a 2010 IS 250 - pulled the wires out the connector for the camshaft position sensor. Would greatly appreciate if someone could help.

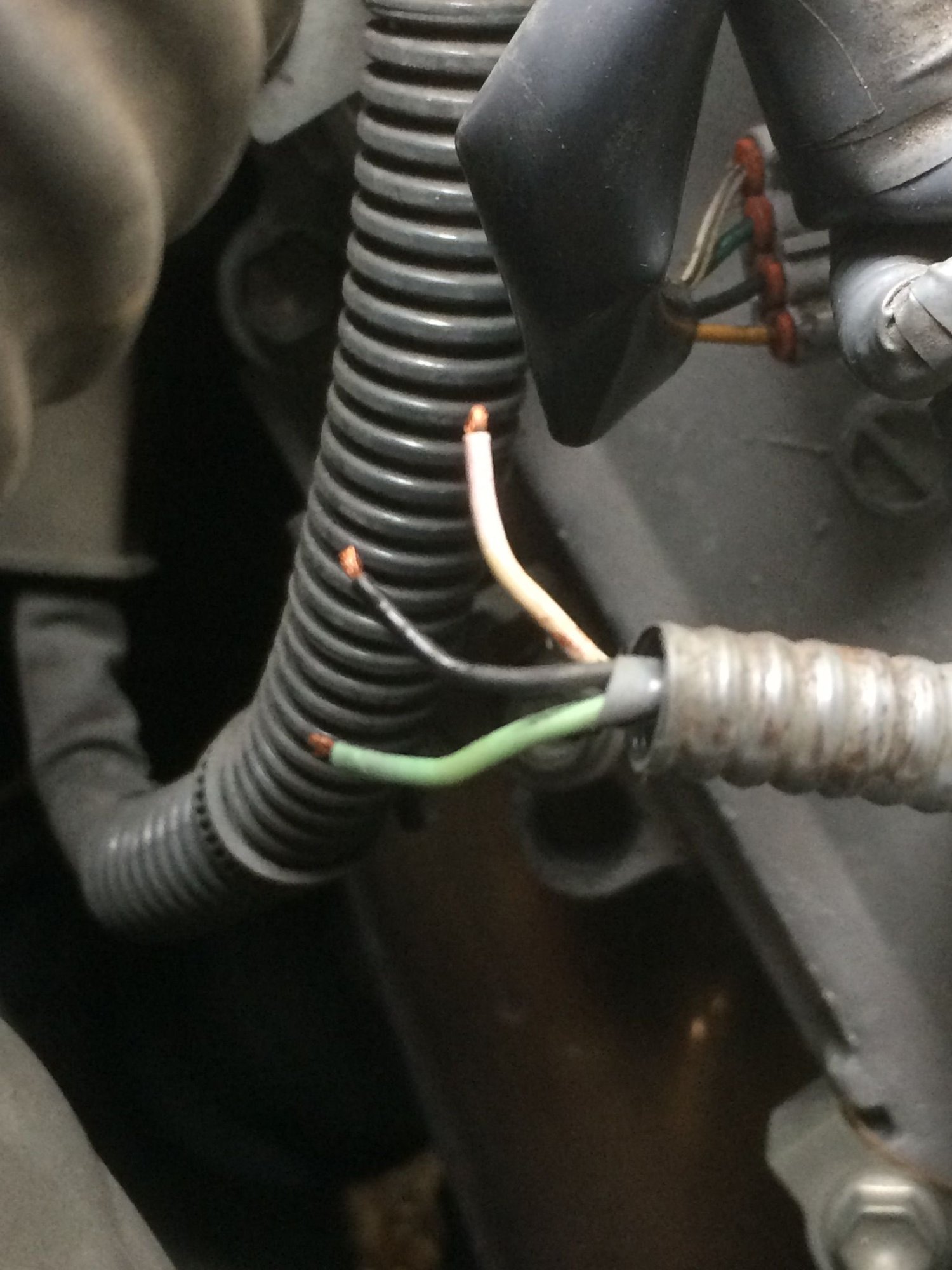

Wires

Connector

Reply

Old

Apr 1, 2019 | 11:11 AM

#2

Jeff Lange

Keeping it Real

iTrader: (1)

Joined: Apr 2009

Posts: 5,220

Likes: 753

From: Texas

Default

Quote:

Originally Posted by Jeff Lange

Connector Part Number: 90980-12353
Terminals Part Number: 82998-24260 (Qty: 3)

Pinout:
Pin 1 (EX+): White
Pin 2 (EX-): Black
Pin 3 (VC2): Green

Jeff

Hope that helps.

Jeff

Reply

Old

Apr 2, 2019 | 02:05 PM

#3

Gville350

Moderator

iTrader: (10)

Joined: Mar 2011

Posts: 11,576

Likes: 444

From: South Carolina

Default

Changing out the spark plugs when this happened?
