HID fogs install instructions?
Thread Starter
Lexus Test Driver
Joined: Mar 2006
Posts: 1,595
Likes: 6
From: Bay Area, CA
HID fogs install instructions?
Did a search but didn't find anyone who posted up instructions on how to install HID fogs. Maybe I wasn't looking hard enough but just got my shipment of 3000k hid fogs from xenon depot today and would like to slap those babies on asap! btw. I've already installed HID's for my regular low beams in the past so is it much different than that? Thanks!
Lexus Champion
Joined: Dec 2006
Posts: 1,787
Likes: 2
From: Cape Cod, Mass
here you go. its just how to install fog light bulbs but there is no difference with installing HID bulbs, just make sure you place the blast where no water can get too.
https://www.clublexus.com/forums/sho...d.php?t=223728
https://www.clublexus.com/forums/sho...d.php?t=223728
Yeah the biggest question is where you connect the power wire and the ground wire for the HID's... I am actually curious to what everyone else did also.

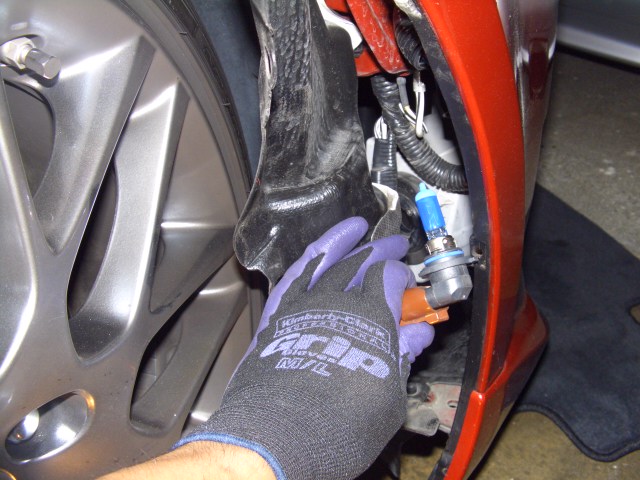

I personally, slit the wires in the back of the 9006 socket. The socket that he is holding in the pic below has two wires... one is ground and one is power... i forgot what colors they were but it was easy to differentiate from the two. one was white and black i think and the other was green and red. black for ground red for power. hope this helps.
I personally, slit the wires in the back of the 9006 socket. The socket that he is holding in the pic below has two wires... one is ground and one is power... i forgot what colors they were but it was easy to differentiate from the two. one was white and black i think and the other was green and red. black for ground red for power. hope this helps.
aye aye....
check this out!!
Plug that adapter in there.. ... and you get two ends to strip and connect. Strictly PLUG/PLAY setup. No cutting to your OEM wires at all! Be smart and try to avoid cutting OEM wires at all times!
http://cgi.ebay.com/ebaymotors/9006-...spagenameZWDVW
check this out!!
Plug that adapter in there.. ... and you get two ends to strip and connect. Strictly PLUG/PLAY setup. No cutting to your OEM wires at all! Be smart and try to avoid cutting OEM wires at all times!
http://cgi.ebay.com/ebaymotors/9006-...spagenameZWDVW
Hey guys i'm trying to understand this ebay attachment....
the xenon depot or xtreme kits already have a 9006 plug that goes into the factory socket, which leads up into the ballast and from the ballast connects to the HID bulb... Now i was referring to the extra RED POWER and BLACK GROUND wires... now at this point if you connected this Ebay attachment to the factory socket it leaves the socket that goes to the ballast un-attended...but it covers the ground and power wires.
I Think it's a good idea but i'm just trying to figure out how this works. any help would be appreciated.
