Have a 20' GX 460 Premium. Had a minor fender bender that pulled the headlight out and pulled 4 wires from the wiring harness connecting to the driver's side headlight. The wires are not cut they were just pulled straight out. The four open holes on the back of the harness are label in the image. For the image I have several of the wires simply sitting in some of the holes so ignore those. The four wires for the four holes are:

• White with black stripe
• grey
• red
• black with red stripe

I have the tools to de-pin and rewire this harness correctly, I just need to know which one goes in which hole. I cannot find a wiring diagram for this headlight anywhere. Any help would be greatly appreciated.

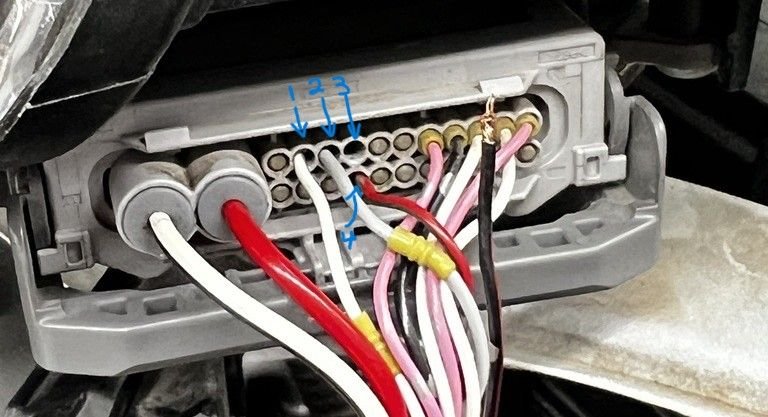

Driver's Side Headlight wiring harness.



Look on the other Headlight ...



I had the same thought and checked that first, but had no luck. The passenger side does not align with the driver's side. Unless I'm missing something.

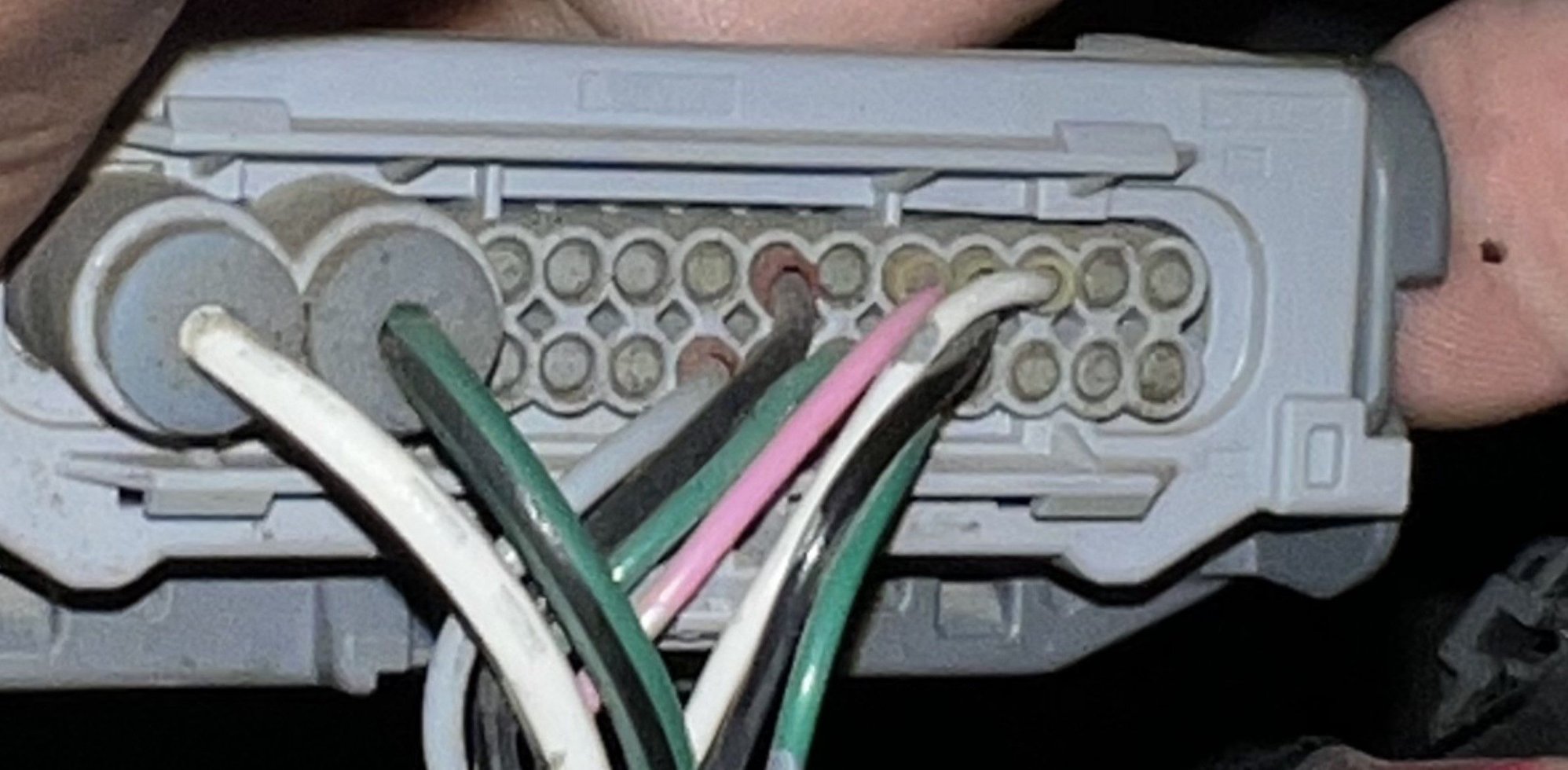

Passenger Side Headlight Harness
