Ground wire kit

Does anyone have a detailed diagram or a link to a diagram how to connect ground wires in 1999 GS300?

Thank you.

Aug 17, 2005 | 09:36 PM

DaveGS4

Administrator Emeritus

iTrader: (2)

Joined: Feb 2001

Posts: 31,944

Likes: 2,737

From: North Carolina

This is probably as close as you're going to get.

https://www.clublexus.com/forums/sho...ght=ground+kit

Aug 17, 2005 | 09:57 PM

ILOVEGIRLS

Racer

iTrader: (3)

Joined: Mar 2004

Posts: 1,628

Likes: 6

From: California

here is the link the sun hyper grounding system install. grounding kits are not usually car specific. i set mine up the same way.

https://www.clublexus.com/forums/sho...d.php?t=161040

good luck.

Aug 18, 2005 | 11:07 AM

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

Thank you, guys for the replies. However, all the pics/diagrams in the links are for GS4 and I have GS3.

Aug 24, 2005 | 01:06 PM

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

So, anybody else with GS 300 picture/diagram?

Aug 24, 2005 | 01:18 PM

Dx3

Lexus Fanatic

iTrader: (13)

Joined: Jul 2003

Posts: 10,681

Likes: 9

From: Tulsa, Oklahoma

Hey man,

You don't need any specific wiring diagram. Just ground out all the major stuff and u will be fine.

Jonny

Aug 24, 2005 | 02:12 PM

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

Well...that's pretty much what I've done so far. I am just not such a good mechanic and still can't locate ground points on my alternator and transmission.

10 Lexus Designs That Have Aged Like Fine Wine

Verdad Gallardo

8 Tips for Improving Your Hybrid or Plug-in Hybrid's Efficiency!

Michael S. Palmer

10 Best Lexus Models No One Remembers

Joe Kucinski

TRD Off-Road Premium: Best 2026 4Runner, Except This One Thing

Michael S. Palmer

Top 10 Lexus & Toyotas to Drive Before You Die!

Joe Kucinski

Top 10 Lexus/Toyotas With The LEAST 5-Year Depreciation

Joe Kucinski

Lexus LC500 Convertible Auction: A Preview of Rising Values?

Brett Foote

GX 550 vs TX 550: Best 3-Row Luxury Lexus Family Hauler

Michael S. Palmer

9 Best Lexus Models You Can Buy for Half Price (And 1 You Shouldn't!)

Joe Kucinski

2026 Lexus NX Buyer's Guide: Models, Features, Prices & More!

Brett Foote

Sep 3, 2005 | 09:20 AM

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

I am still looking for the instructions. However, for GS3, not GS4...

Sep 3, 2005 | 09:28 PM

#10

GILLEXUS

Lexus Champion

iTrader: (14)

Joined: Dec 2002

Posts: 1,780

Likes: 2

From: Colorado

The daizen kit only has 2 wires tha attach to the engine. The rest of them go in the engine bay and kick panel and those look exactlly like the GS400/430. Want to look at them and see what you think??

Sep 4, 2005 | 09:06 AM

#11

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

Sure, I would like to see what's on your diagram. I think I found almost all the points, just can't locate one on the alternator and not sure if the one I found on transmission is the right one.

Sep 5, 2005 | 07:38 AM

#12

LEXUS_KID

Lexus Champion

iTrader: (4)

Joined: Dec 2004

Posts: 10,899

Likes: 55

From: IN THE POKER ROOM!!!!

Do you have any pictures of your install yet

Sep 5, 2005 | 10:57 AM

#13

lalexusgs

Thread Starter

Advanced

Joined: Mar 2005

Posts: 687

Likes: 3

From: Los Angeles, CA

No, I didn't have a chance to make any pics of my setup yet, but if anyone interested, I can take some shots.

Sep 5, 2005 | 11:41 AM

#14

GS3T

Lead Lap

iTrader: (1)

Joined: Jun 2005

Posts: 491

Likes: 0

From: NC

if you can I'd like to see some pics as I have not had time to do my car yet.

Sep 7, 2005 | 06:29 AM

#15

GILLEXUS

Lexus Champion

iTrader: (14)

Joined: Dec 2002

Posts: 1,780

Likes: 2

From: Colorado

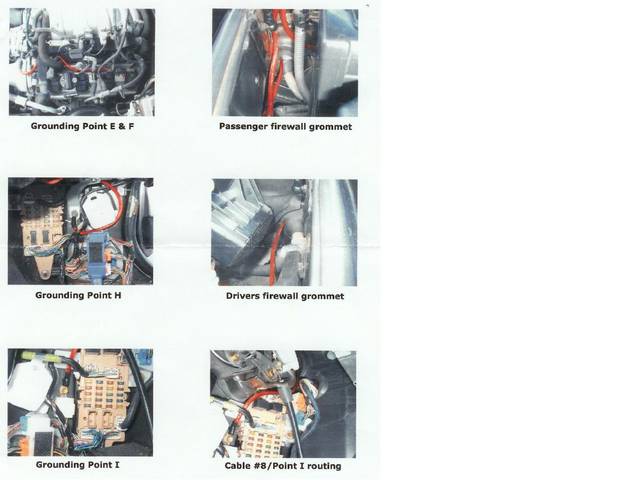

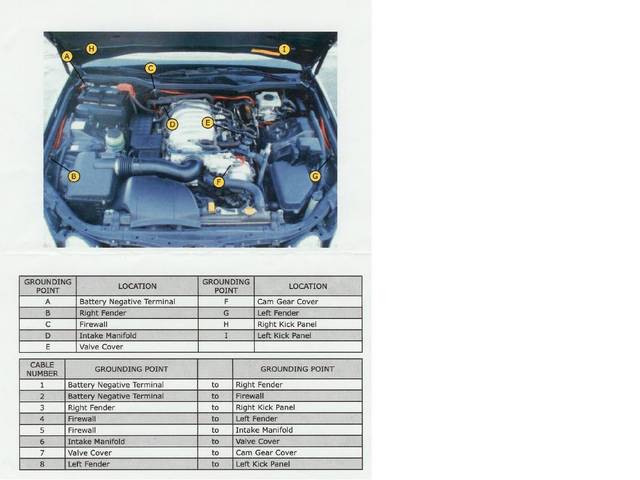

Here are the instruction for the Daizen grouding kit 1998-2005 GS40/430

Here are the lenths of the wires-
I don't kow the gauge of the wires but #2 & #8 are smaller than the rest. Maybe 4ga. & 6ga.
#2 & #8 are 6mm and the rest are 9mm.

I think the palcement of #2 & #3 should be switched from on the instructions.

#1- 29 1/2"
#2 - 47 1/2"
#3 - 28"
#4 - 62"
#5 - 10"
#6 - 25 1/2"
#7 - 20"
#8 - 34 1/2"

You can see largerpic's in my gallery
