After painfully searching the internet, the manual and here I am posting my 2024 NX Fsport fuse box and diagram

Locations left and right sides

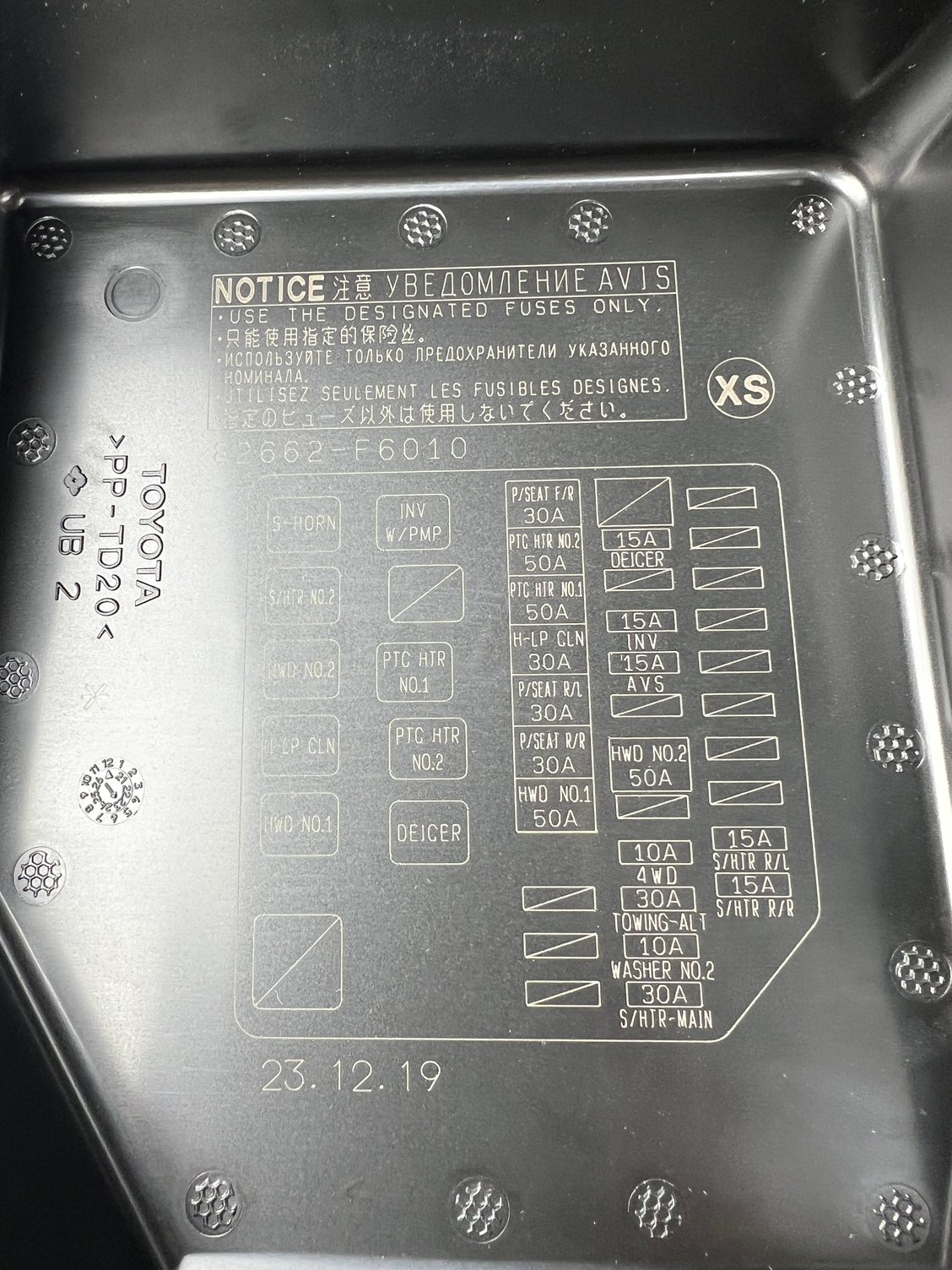

Box and diagram

Diagram

diagram

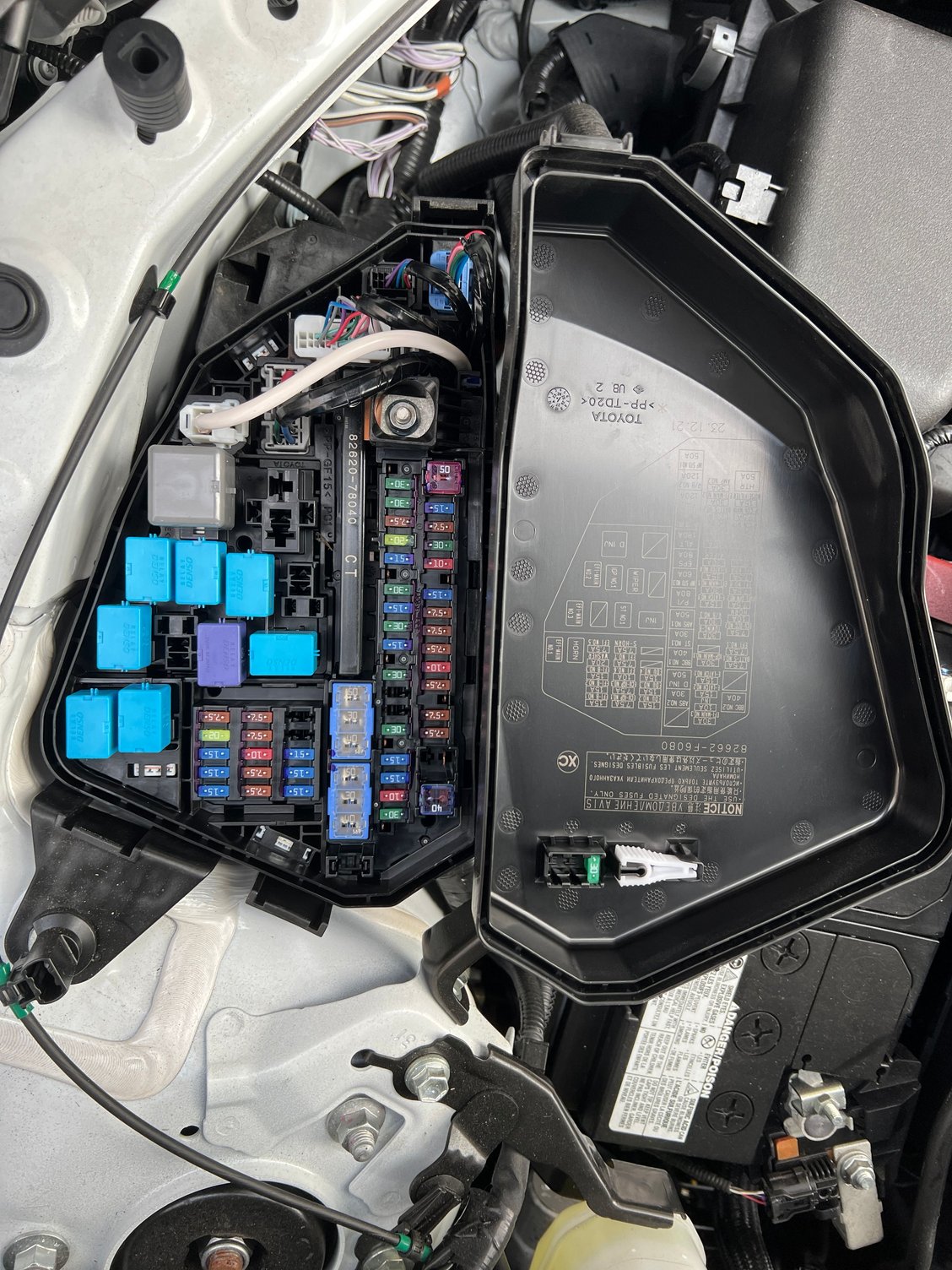

Box and diagram
Reply
0
Old Oct 28, 2024 | 08:16 AM
Share
  #2
Droid13's Avatar
Droid13
Pole Position
10 Year Member
Photogenic
Community Favorite
Top Answer: 1

Joined: Dec 2012
Posts: 2,124
Likes: 944
From: Toronto, ON
Default

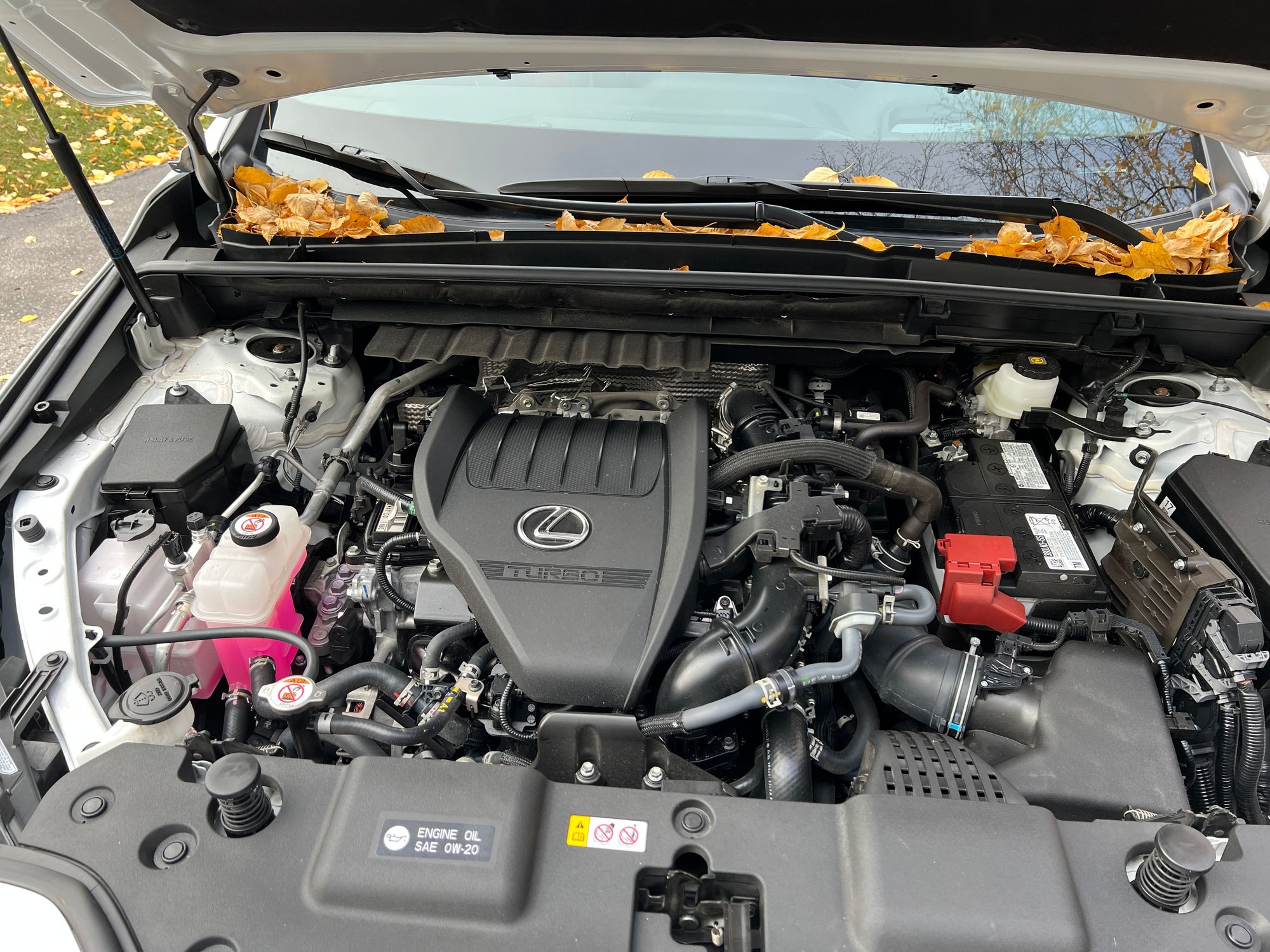

Clear the leaves. you don't want them disintegrating into your HVAC system.
Reply
1
Old Oct 28, 2024 | 03:02 PM
Share
  #3
midcow3's Avatar
midcow3
Pole Position

Joined: Aug 2011
Posts: 2,034
Likes: 853
Lightbulb URL on repacing fuses in NX
Did you look at this ?

https://www.lexunx.com/checking_and_...fuses-101.html

Pretty clear on fuses.


YMMV
Reply
0
