LS 460/600 Wheel & Tire Information Details Thread


Old 07-31-18, 06:54 PM
  #121
tofuprod
Lead Lap

tofuprod's Avatar

Join Date: May 2016
Location: Illinois
Posts: 512
Received 52 Likes on 49 Posts
Default

Just got these yesterday, the tire sizes are not my ideal size but it came with and they are brand new, whole setup had under 150 miles and I got it for a fraction of the price combined so... eventually I'll switch out the tires when needed to appropriate sizing.

LS Year/Model: 2013 LS460 AWD
Wheel Brand: Ace Alloy
Wheel Model: Devotion
Wheel Size Front: 20x9
Wheel Size Rear:20x10.5
Wheel Finish: Factory Silver
Lip size front (if applicable): N/A
Lip size rear (if applicable):N/A
Lip finish (if applicable):N/A
Offset Front: +30
Offset Rear: +40
Hub Bore size (if known): 70.62
Hub Centric Rings Required? Y/N: Yes
Tire Size Front: 245/30/20 - when tread is not optimal, they will be replaced with 245/40/20
Tire Size Rear: 285/30/20 - when tread is not optimal, they will be replaced with 275/35/20
Tire Make/Model: Hankook (I think Ventus V12?)
Tire Air Pressure Preference: 40
Suspension: Stock
Fenders Rolled/Altered: No
Does the setup rub?:No

Pic Below, I apologize for the crappy cell phone photos:




Last edited by tofuprod; 08-05-18 at 10:22 AM. Reason: Added photos
tofuprod is offline
Old 08-10-18, 02:22 PM
  #122
Lexus88
Driver

Join Date: Jun 2007
Location: Sacramento, California
Posts: 143
Likes: 0
Received 1 Like on 1 Post
Default

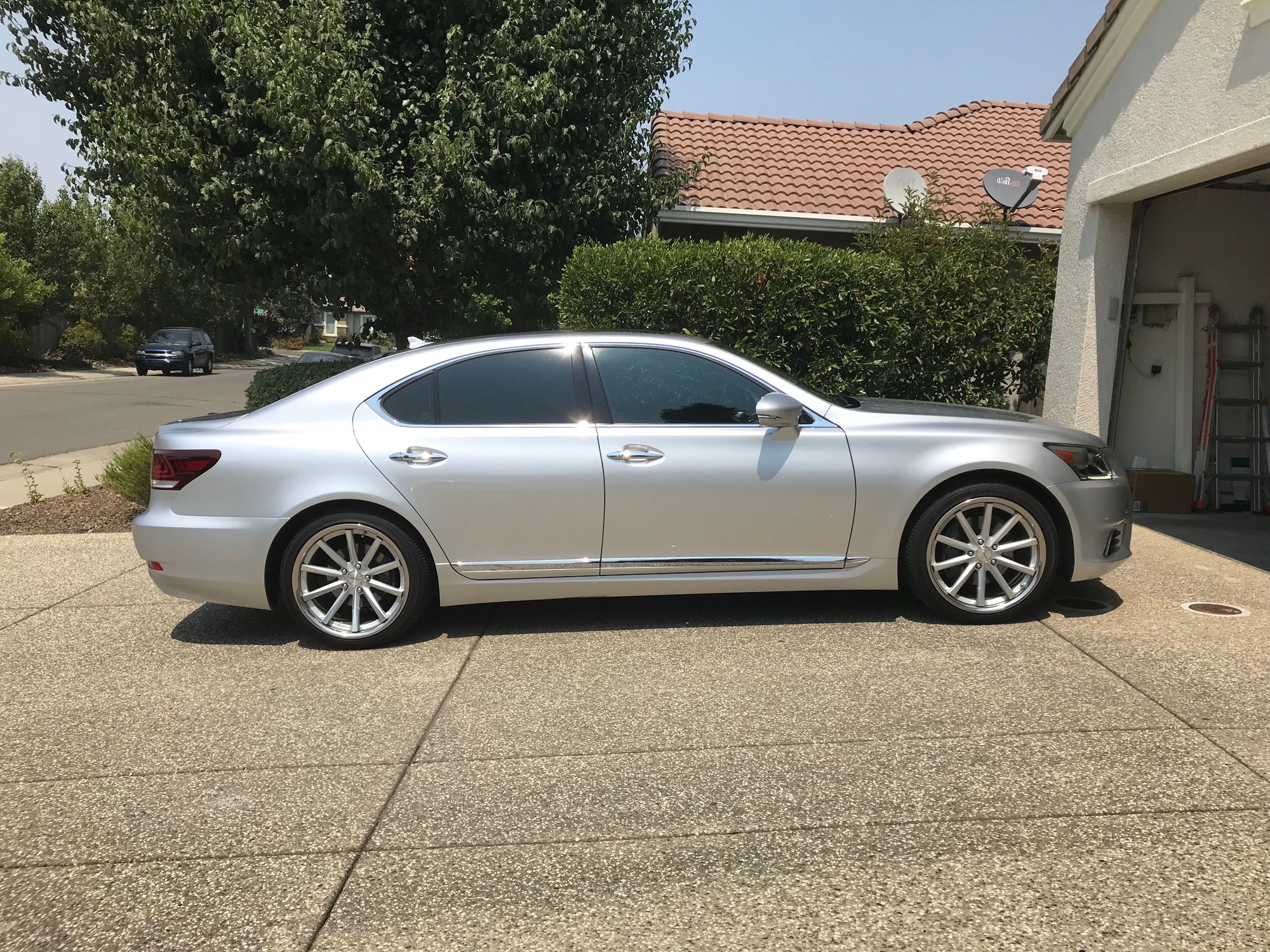

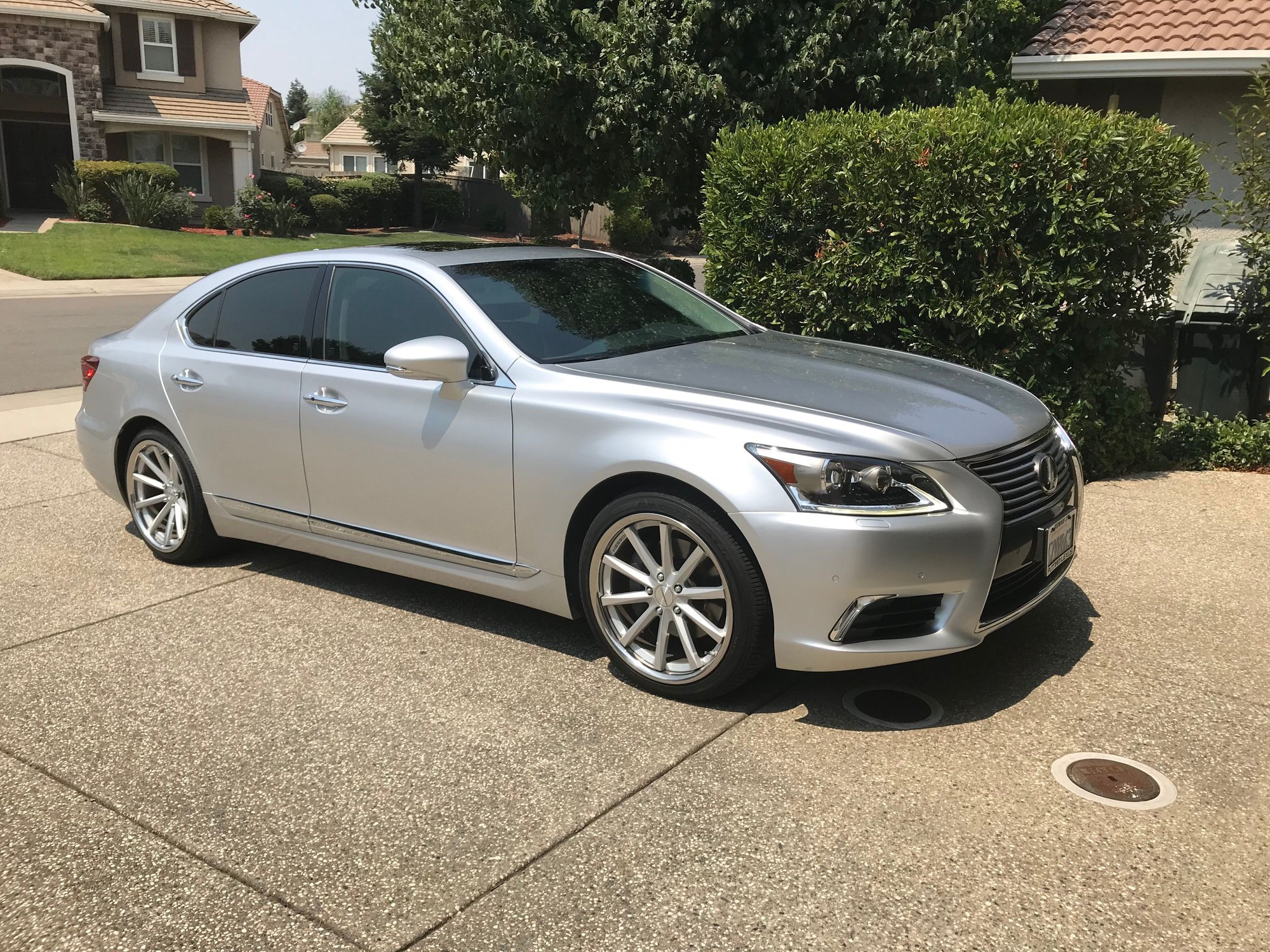

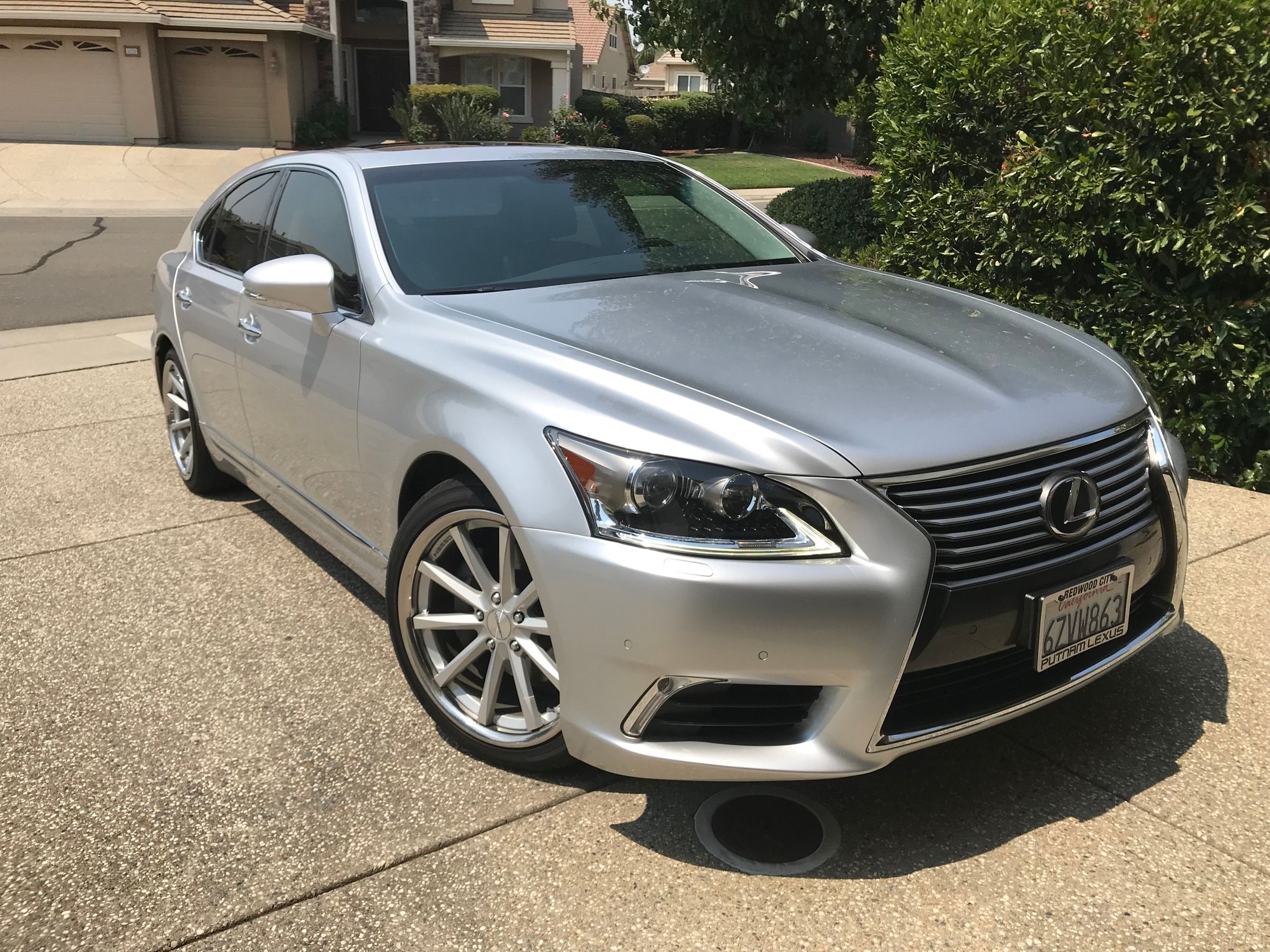

LS Year/Model: 2013
Wheel Brand: Vossen
Wheel Model: CV1
Wheel Size Front: 20
Wheel Size Rear: 20
Wheel Finish: Silver
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 35
Offset Rear: 42
Hub Bore size (if known):
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 245/40/20
Tire Size Rear: 275/35/20
Tire Make/Model:Yokohama
Tire Air Pressure Preference:38
Suspension:Stock
Fenders Rolled/Altered: No
Does the setup rub?: No



Lexus88 is offline
Old 09-22-18, 05:17 AM
  #123
imDementeD
Lead Lap
iTrader: (7)

Join Date: Jun 2010
Location: fl
Posts: 743
Received 3 Likes on 2 Posts
Default

LS Year/Model: 2014 LS460
Wheel Brand: Vossen
Wheel Model: VFS2
Wheel Size Front: 22x9
Wheel Size Rear: 22x10.5
Wheel Finish: Silver
Tire Size Front: 245/30/22
Tire Size Rear: 295/25/22
Tire Make/Model: Continental DWS
Suspension: BC Coilovers
Fenders Rolled/Altered: Nope
Does the setup rub?: Only turning into a steep driveway. Have had 3 people in the car on bumpy roads without rubbing.

Pics Below:


imDementeD is offline
Old 02-10-19, 10:00 PM
  #124
bas2sin
Driver School Candidate

Join Date: Nov 2004
Location: California
Posts: 5
Likes: 0
Received 2 Likes on 1 Post
Default

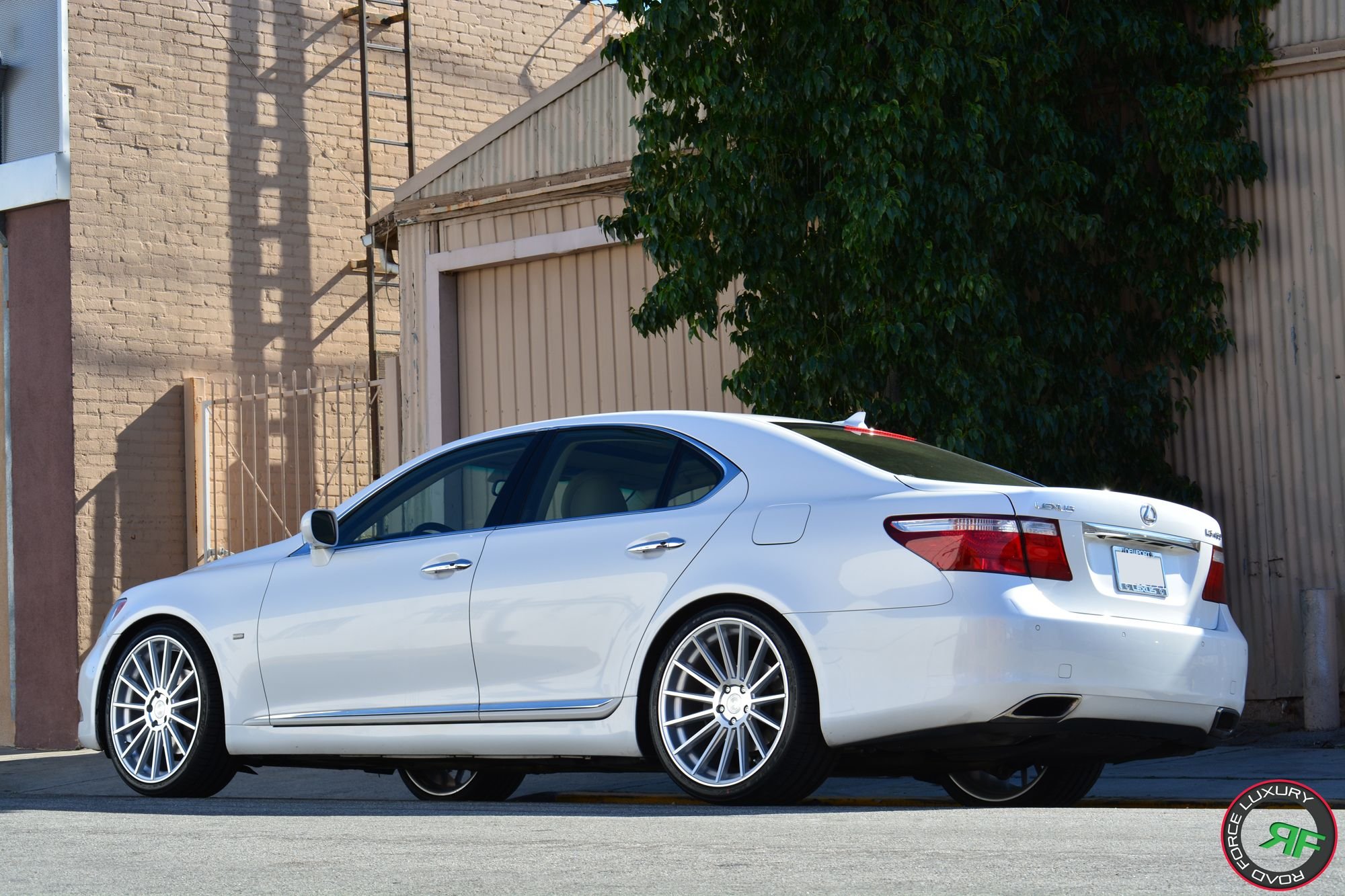

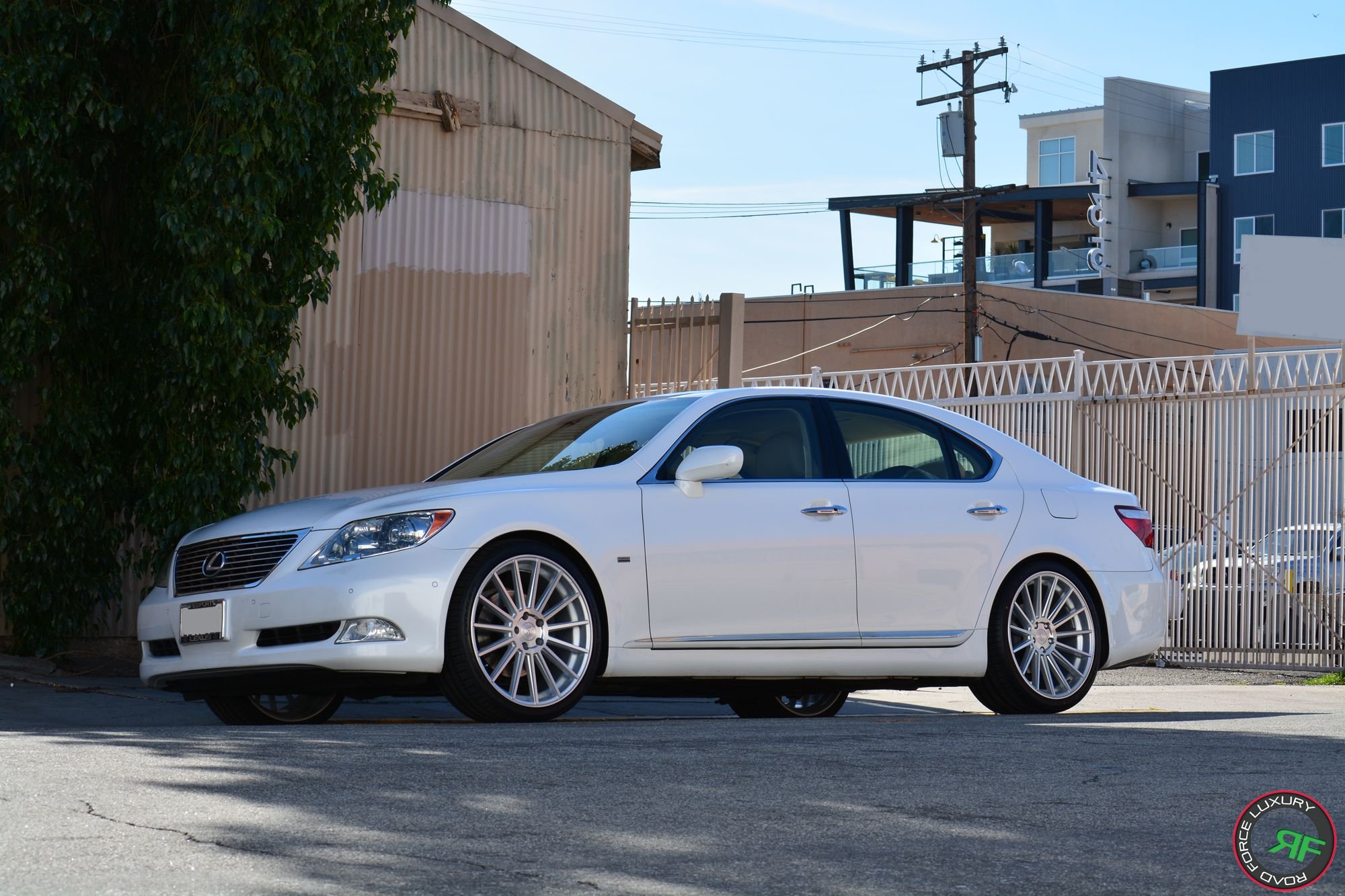

LS Year/Model: 2008
Wheel Brand: Road Force
Wheel Model: RF15
Wheel Size Front: 21 X 9
Wheel Size Rear: 21 X 10.5
Wheel Finish: Polished Silver
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 30
Offset Rear: 40
Hub Bore size (if known):
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 245X35X21
Tire Size Rear: 295X30X21
Tire Make/Model: Falken Azenis
Tire Air Pressure Preference: 41
Suspension: Stock
Fenders Rolled/Altered: NoDoes the setup rub?: No


bas2sin is offline
The following 2 users liked this post by bas2sin:
3GSShoe (04-03-19), Dubbayoo (04-16-19)
Old 02-10-19, 10:13 PM
  #125
Lukelander
Driver School Candidate

Join Date: Nov 2018
Location: Nukuhau
Posts: 4
Likes: 0
Received 2 Likes on 2 Posts
Default

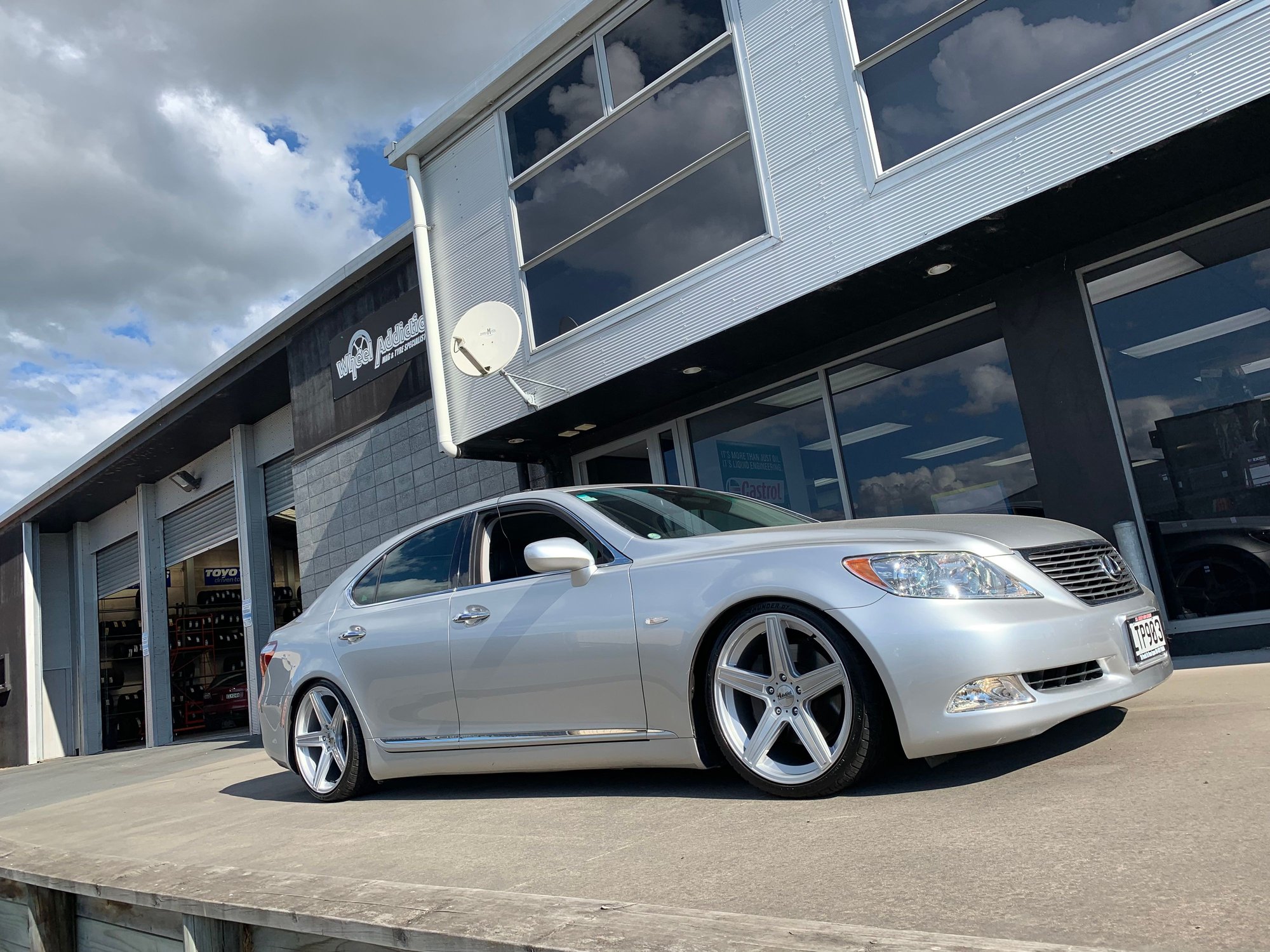

LS Year/Model: LS460 SWB
Wheel Brand: Advanti
Wheel Model: Dortmund
Wheel Size Front: 20x8.5
Wheel Size Rear: 20x10
Wheel Finish: Silver
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 35
Offset Rear: 35
Hub Bore size (if known):
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 235/35/20
Tire Size Rear: 275/30/20
Tire Make/Model: Delinte D7
Tire Air Pressure Preference: 38psi
Suspension: Stock - datasystem controller
Fenders Rolled/Altered: nope
Does the setup rub?: not at a sensible level on suspension controller, height in pics is certainly not sensible lol

Level 8 on datasystem controller, virtually undrivable

Level 8 on datasystem controller, virtually undriveable


Pics Below:
Lukelander is offline
The following users liked this post:
bigsherv (03-20-19)
Old 03-19-19, 10:45 AM
  #126
CJITTY
Moderator
Thread Starter

CJITTY's Avatar

Join Date: Jul 2010
Location: The South
Posts: 4,748
Likes: 0
Received 60 Likes on 47 Posts
Default

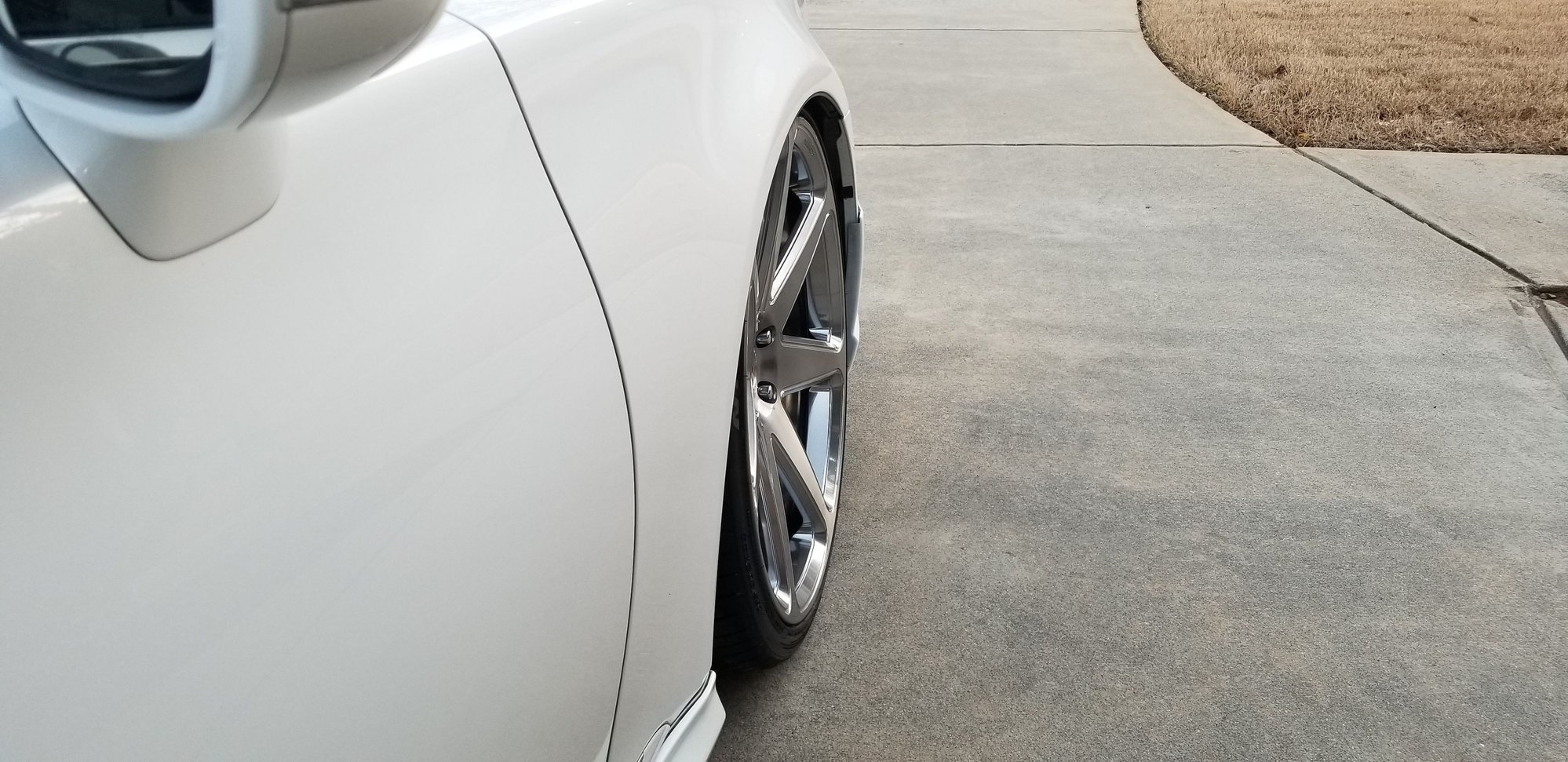

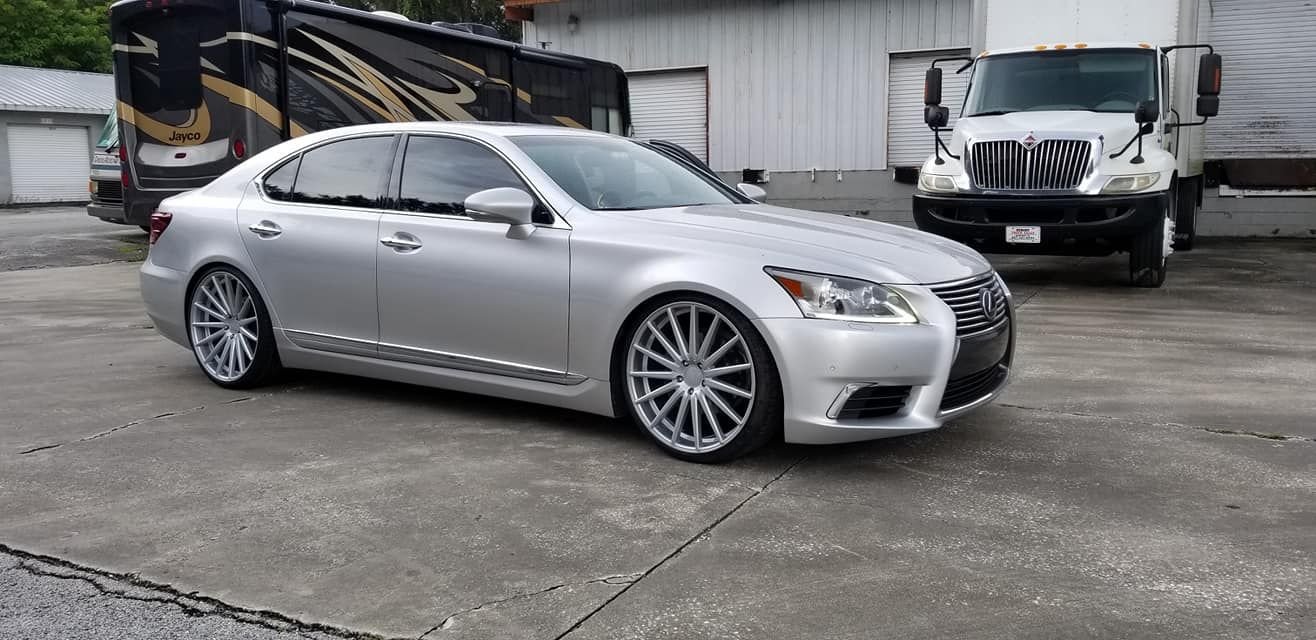

LS Year/Model: 2012 460L
Wheel Brand: Vossen
Wheel Model: Custom CG Forged Series
Wheel Size Front: 22x9.5
Wheel Size Rear: 22x11
Wheel Finish: Light Smoke Brushed w/polished pockets
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 31
Offset Rear: 40
Hub Bore size (if known): OEM 60.1mm
Hub Centric Rings Required? Y/N: N
Tire Size Front: 265/30/22
Tire Size Rear: 295/25/22
Tire Make/Model:Nexen SU1
Tire Air Pressure Preference:38
Suspension: OEM Air with Data Systems ASC680L controller
Fenders Rolled/Altered: No
Does the setup rub?: No




Last edited by CJITTY; 03-19-19 at 10:53 AM.
CJITTY is offline
Old 04-07-19, 12:55 AM
  #127
Pieter184
Driver School Candidate

Join Date: Apr 2019
Location: netherlands
Posts: 9
Likes: 0
Received 1 Like on 1 Post
Default Lexus LS600 with LC LS500 whees 20inch

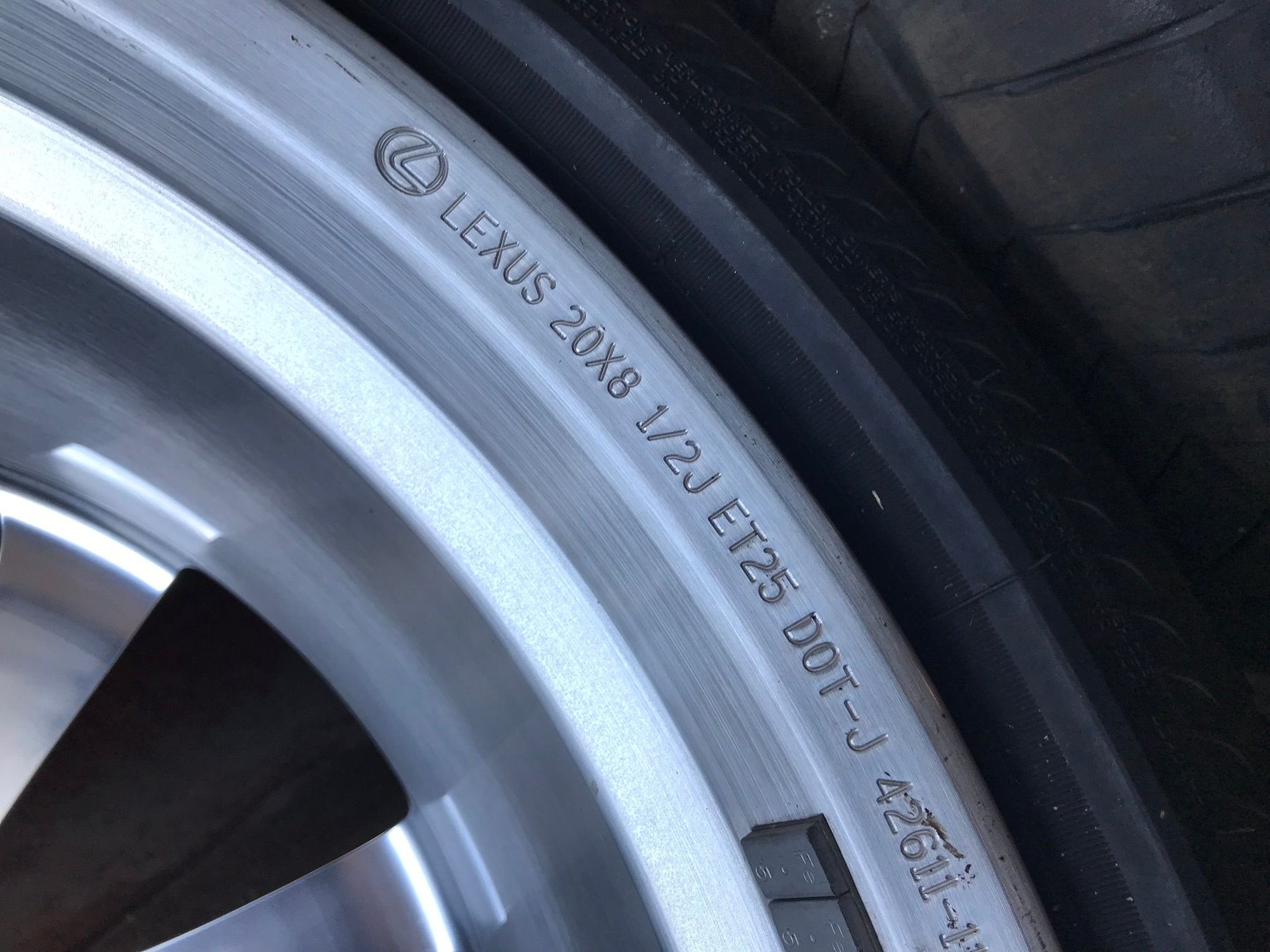

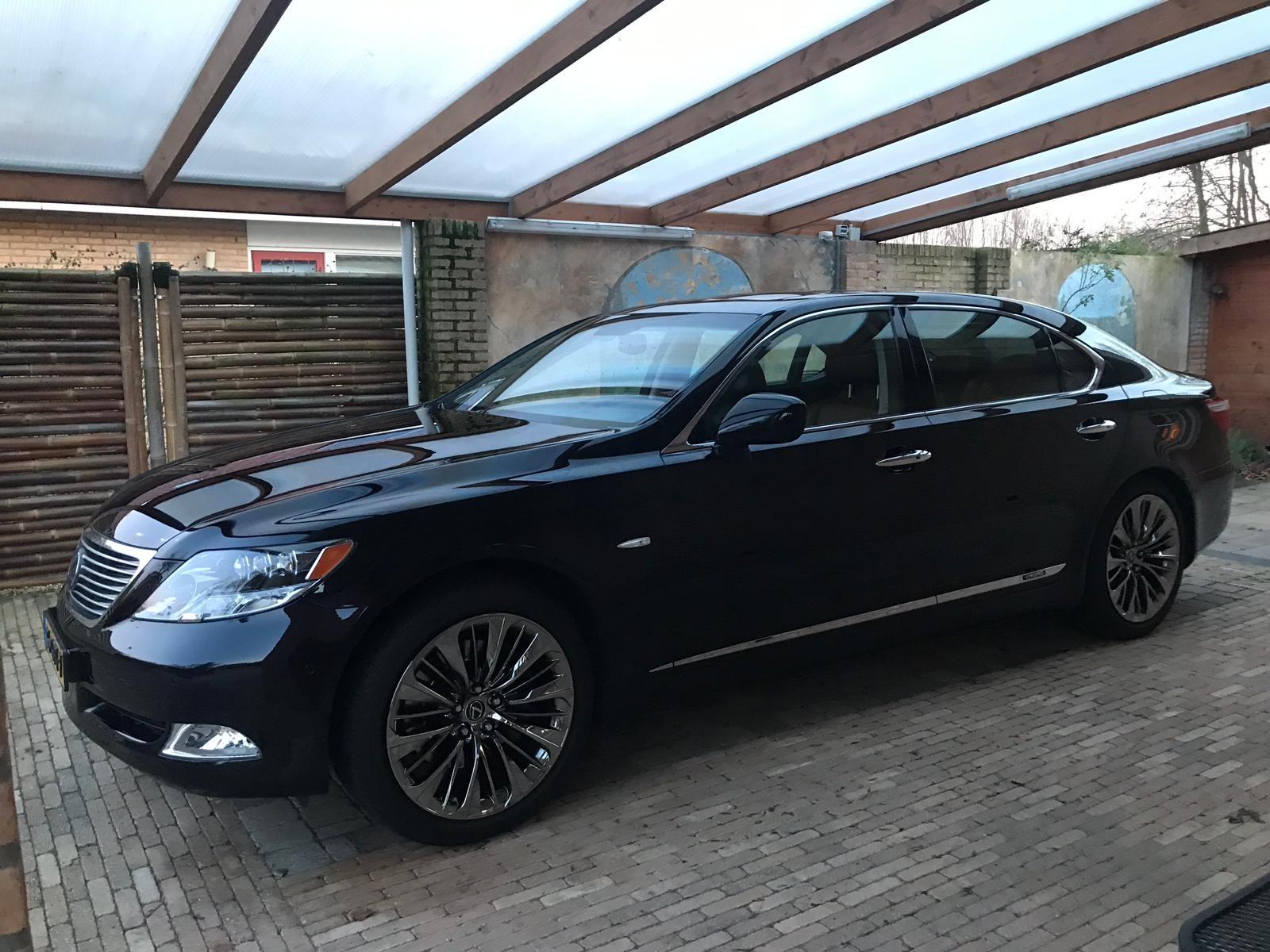

LS Year/Model: LS600H LWB (2008)
Wheel Brand: Lexus
Wheel Model: LS500h Forced wheels
Wheel Size Front: 8,5J
Wheel Size Rear: 8,5J
Wheel Finish: Aluminum
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 25
Offset Rear: 25
Hub Bore size (if known): 60.1
Hub Centric Rings Required? Y/N: N
Tire Size Front: 245/45 R20 (Run on Flat)
Tire Size Rear: 245/45 R20 (Run on Flat)
Tire Make/Model: Bridgestone
Tire Air Pressure Preference: 2.5
suspension: Factory








Last edited by Pieter184; 04-07-19 at 01:01 AM.
Pieter184 is offline
Old 04-07-19, 01:03 AM
  #128
Pieter184
Driver School Candidate

Join Date: Apr 2019
Location: netherlands
Posts: 9
Likes: 0
Received 1 Like on 1 Post
Default Lexus LS600H with LS500H Factory rims

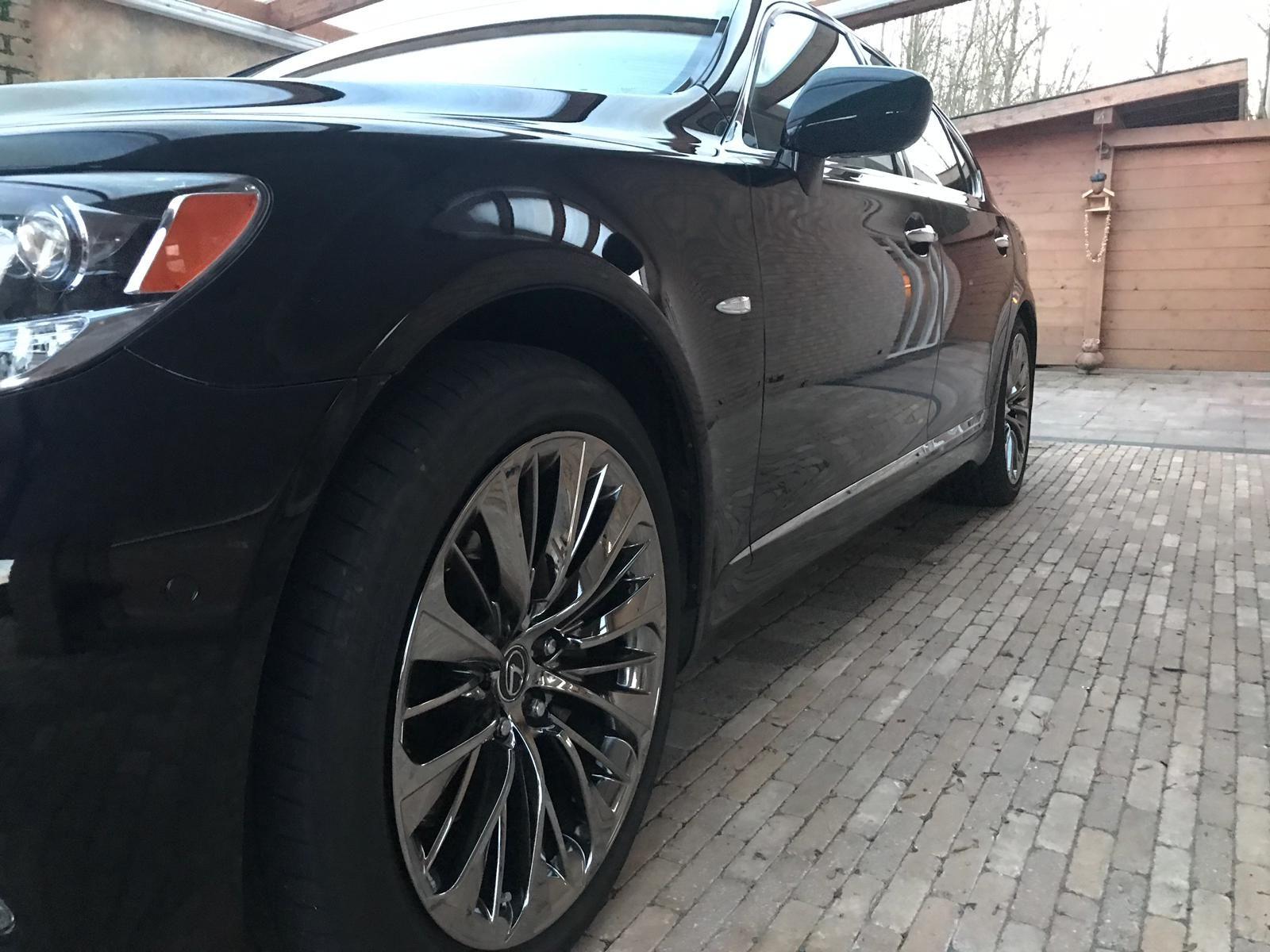

Lexus LS600 with LC LS500 wheels 20inchLS Year/Model: LS600H LWB (2008)
Wheel Brand: Lexus
Wheel Model: LS500h
Wheel Size Front: 8,5J
Wheel Size Rear: 8,5J
Wheel Finish: Chrome paint
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 25
Offset Rear: 25
Hub Bore size (if known): 60.1
Hub Centric Rings Required? Y/N: N
Tire Size Front: 245/45 R20 (Run on Flat)
Tire Size Rear: 245/45 R20 (Run on Flat)
Tire Make/Model: Bridgestone
Tire Air Pressure Preference: 2.5
suspension: Factory




Pieter184 is offline
Old 04-15-19, 02:02 PM
  #129
CJITTY
Moderator
Thread Starter

CJITTY's Avatar

Join Date: Jul 2010
Location: The South
Posts: 4,748
Likes: 0
Received 60 Likes on 47 Posts
Default

ANNOUNCEMENT: Fellow 4th Gen LS Family. Unfortunately I have had to delete several posts recently as they are not conforming to the thread format requested on the first post of this thread. This post is meant to be reference only with no discussion. If you have a question of what someone has posted about their wheel and tire setup, it is requested that you send that user a PM to ask. There are more than enough wheel and tire posts elsewhere in the 4th Gen forum. But this sticky thread is meant for reference only because once replies and discussion occurs, the posts with the template completed with pics gets buried. Periodically I come back in here to clean up the thread, so please don't get offended if your post was removed, I simply ask you reply with the template on the first post with your pic(s) of your car only. Thank you for your cooperation and please keep the posts coming. I receive a ton of positive feedback about how much this thread has helped people over the years.

Here is the template below. Simply cut and paste this into a new post. Complete the details and upload pics of your car showing off your wheel and tire setup
Please Copy and Paste this template into a new reply post (not Quote) and complete for your vehicle
______________________________________________________________
LS Year/Model:
Wheel Brand:
Wheel Model:
Wheel Size Front:
Wheel Size Rear:
Wheel Finish:
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front:
Offset Rear:
Hub Bore size (if known):
Hub Centric Rings Required? Y/N:
Tire Size Front:
Tire Size Rear:
Tire Make/Model:
Tire Air Pressure Preference:
Suspension:
Fenders Rolled/Altered:
Does the setup rub?:

Pics Below:

Last edited by CJITTY; 04-15-19 at 02:06 PM.
CJITTY is offline
Old 05-28-19, 11:15 AM
  #130
Taran
Rookie

Taran's Avatar

Join Date: May 2004
Location: Alberta
Posts: 58
Likes: 0
Received 2 Likes on 2 Posts
Cool 20" Advan F7

I have gone through several wheel / tire setups on my LS460.
My contribution to the Club Lexus and LS community which has helped me out over the years (since May 2004).

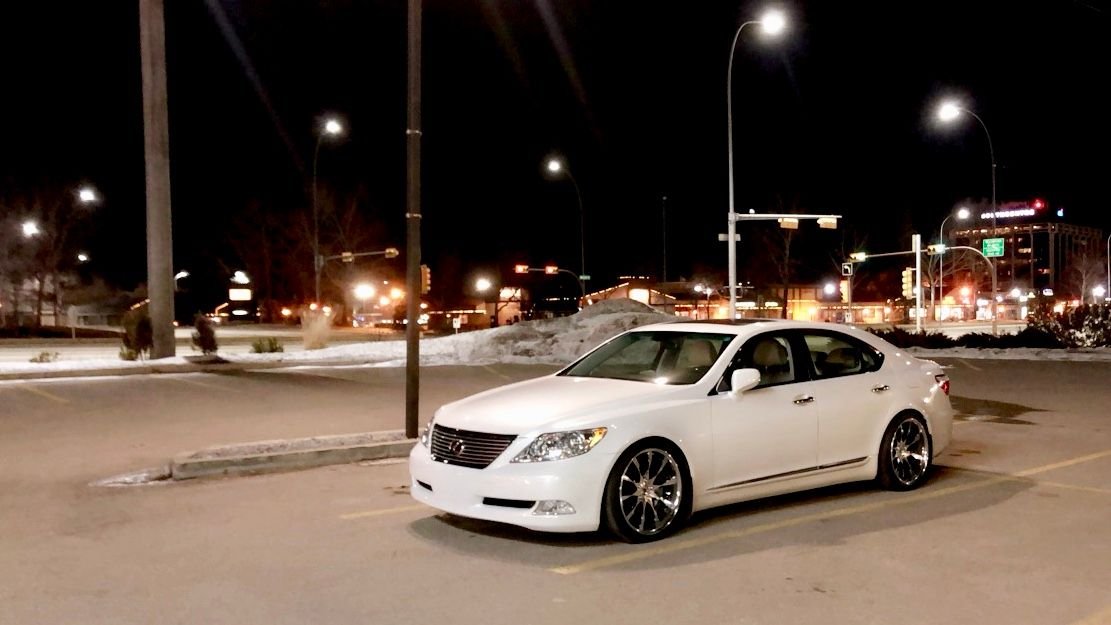

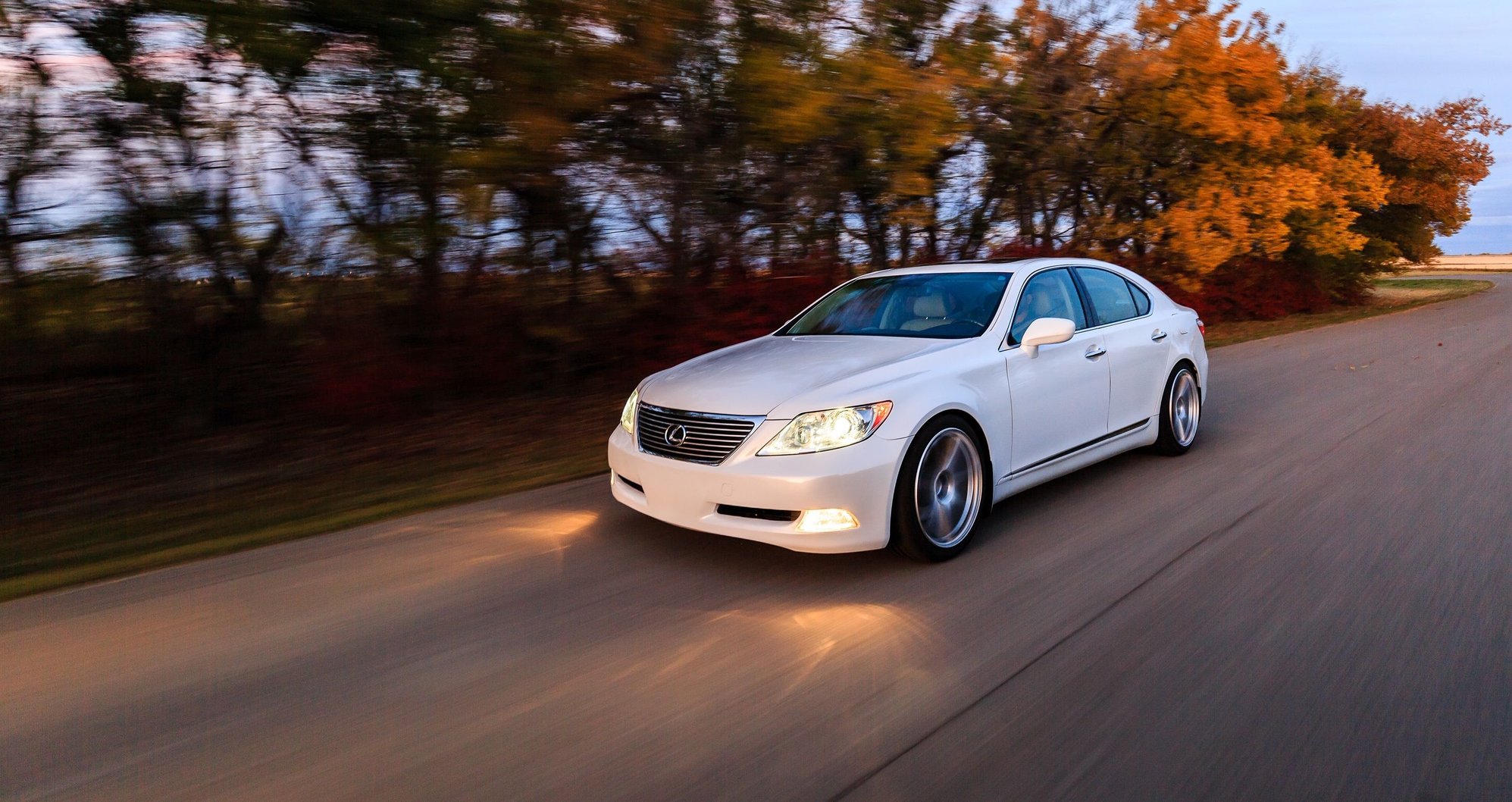

LS Year/Model: 2007 Lexus LS460 SWB
Wheel Brand: Advan
Wheel Model: F7
Wheel Size Front: 20X9
Wheel Size Rear: 20X10
Wheel Finish: Brilliant Metallic Silver (oem Lexus paint refinish)
Offset Front: +17
Offset Rear: +22
Hub Bore size (if known): 72.5 mm
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 245/40/20
Tire Size Rear: 245/40/20 then swtiched to 265/35/20
Tire Make/Model: Falken FK453
Tire Air Pressure Preference: 35 psi
Suspension: lowered with BC coilovers
Fenders Rolled/Altered: no
Does the setup rub?: no

Pics Below:







Taran is offline
The following users liked this post:
Peacebay (05-29-19)
Old 05-28-19, 05:00 PM
  #131
Taran
Rookie

Taran's Avatar

Join Date: May 2004
Location: Alberta
Posts: 58
Likes: 0
Received 2 Likes on 2 Posts
Cool 20 Vossen CV7

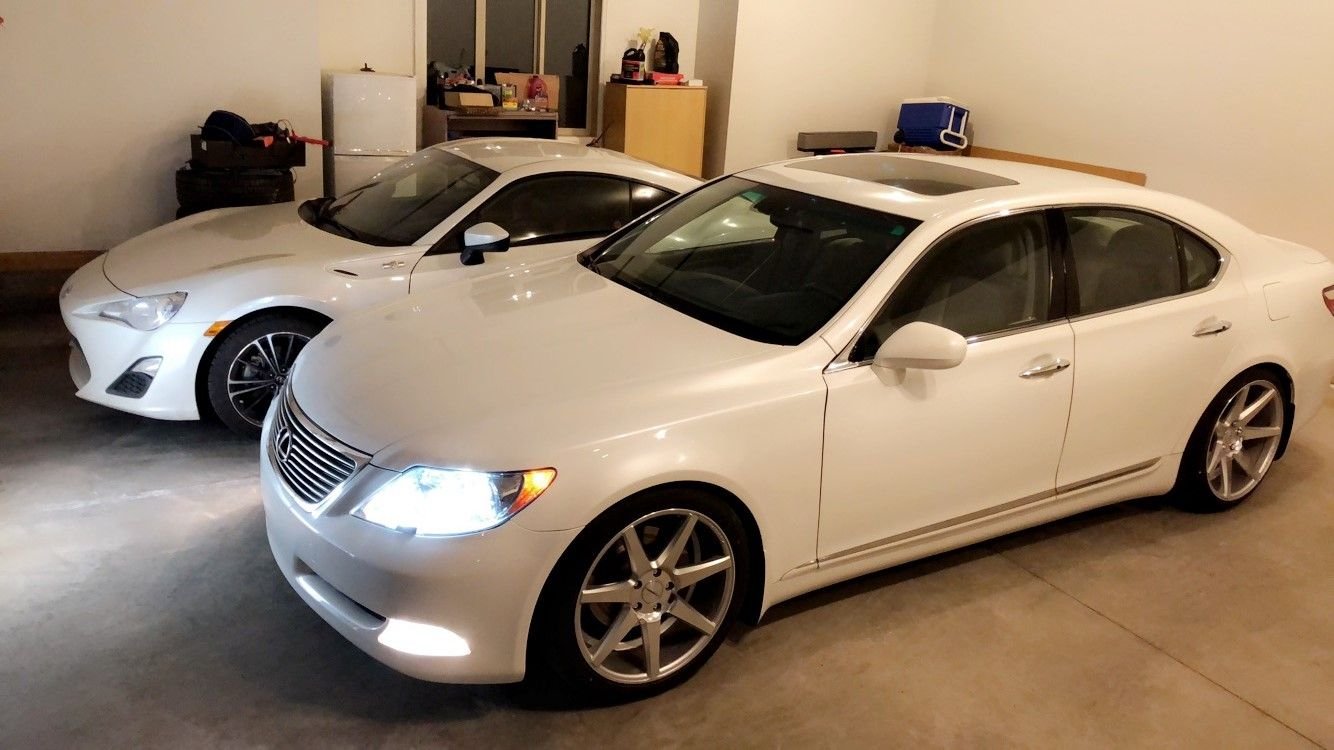

LS Year/Model: 2007 Lexus LS460 SWB
Wheel Brand: Vossen
Wheel Model: CV7 (not high quality wheels, very heavy, poorly made cast in Taiwan)
Wheel Size Front: 20 X 9.0
Wheel Size Rear: 20 X 10.5
Wheel Finish: Silver with Polished Machined Face
Offset Front: +20
Offset Rear: +27
Hub Bore size (if known): 72.5 mm
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 245/40/20
Tire Size Rear: 245/40/20
Tire Make/Model: Falken FK453
Tire Air Pressure Preference: 35 psi
Suspension: lowered with BC coilovers
Fenders Rolled/Altered: no
Does the setup rub?: no

Pics Below:








Last edited by Taran; 05-28-19 at 05:48 PM.
Taran is offline
Old 05-28-19, 06:17 PM
  #132
Taran
Rookie

Taran's Avatar

Join Date: May 2004
Location: Alberta
Posts: 58
Likes: 0
Received 2 Likes on 2 Posts
Cool 20" Work Schwert SC2

LS Year/Model: 2007 LS460 SWB
Wheel Brand: Work
Wheel Model: Schwert SC2
Wheel Size Front: 20X9.0
Wheel Size Rear: 20X10.5
Wheel Finish: (BP) - Black Polish
Lip size front (if applicable): 3.5"
Lip size rear (if applicable): 4.5"
Lip finish (if applicable): Anodized / full reverse barrel (flat lips)
Offset Front: +13 (A-disk)
Offset Rear: +11 (O-disk)
Hub Bore size (if known): 72.5mm
Hub Centric Rings Required? Y/N: Yes
Tire Size Front: 235/40/20 then moved to a 245/35/20
Tire Size Rear: 245/40/20 too wide/tall then moved to a 255/35/20 seems to rub less
Tire Air Pressure Preference: 32 PSI
Suspension: BC Coilovers
Fenders Rolled/Altered: fronts stock , rears shaved a few mm
Does the setup rub?: yes, over large dips at higher speeds due to aggressive offsets

Pics Below:







Taran is offline
Old 06-18-19, 09:32 AM
  #133
Markcma3
Rookie

Markcma3's Avatar

Join Date: Dec 2015
Location: California
Posts: 81
Received 7 Likes on 5 Posts
Default

LS Year/Model: 2016
Wheel Brand: BBS
Wheel Model: CI-R
Wheel Size Front: 20
Wheel Size Rear: 20
Wheel Finish: Platinum Silver
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: +32
Offset Rear: + 40
Hub Bore size (if known):
Hub Centric Rings Required? Y/N: N
Tire Size Front: 245/40/20
Tire Size Rear: 255/40/20





Tire Air Pressure Preference:38
Suspension:Stock
Fenders Rolled/Altered: No
Does the setup rub?: No
Markcma3 is offline
Old 07-16-19, 06:41 AM
  #134
L's TLS
Driver

Join Date: Aug 2007
Location: MD
Posts: 184
Received 6 Likes on 5 Posts
Default

LS Year/Model: 2013 F Sport RWD
Wheel Brand: Rohana
Wheel Model: RFX10
Wheel Size Front: 21 X 9
Wheel Size Rear: 21 X 10.5
Wheel Finish: Brushed Titatnium
Lip size front (if applicable):
Lip size rear (if applicable):
Lip finish (if applicable):
Offset Front: 35
Offset Rear: 40
Hub Bore size (if known):
Hub Centric Rings Required? Y/N: Y
Tire Size Front: 245X35X21
Tire Size Rear: 285X30X21
Tire Make/Model: Michelin Pilot Super Sport
Tire Air Pressure Preference: 40
Suspension: Data Systems Front 3 down, Rear 1 Down
Fenders Rolled/Altered: NoDoes the setup rub?: No





Last edited by L's TLS; 07-16-19 at 06:48 AM.
L's TLS is offline

Thread Tools
Search this Thread
Quick Reply: LS 460/600 Wheel & Tire Information Details Thread


Contact Us - About Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
