Good morning all,

does anyone know the installation depth of the cv axle seals? Specifically the passenger side if it makes a difference.

2004 gx47”

thank you very much in advance!



Good evening and welcome to CL

Here is a great video for your pure enjoyment.



When it comes to a seal replacement, here is a quick video. I know you requested an installation depth, but watch this one nonetheless:





But, this thread may help out with your measurement:

https://forum.ih8mud.com/threads/fro...cement.946820/



“From reading countless "Help my seals are leaking"

recall the constant advice was to just start the new seal straight, then just seat the seal the rest of the way using the CV axle. When the CV axle seats, it'll put the seal at the correct depth and avoid leaks.

Of course, your method should work well.

I think people having issues are just ramming it as far as it'll seat and not bothering to look before removing the old” -4Runner forums

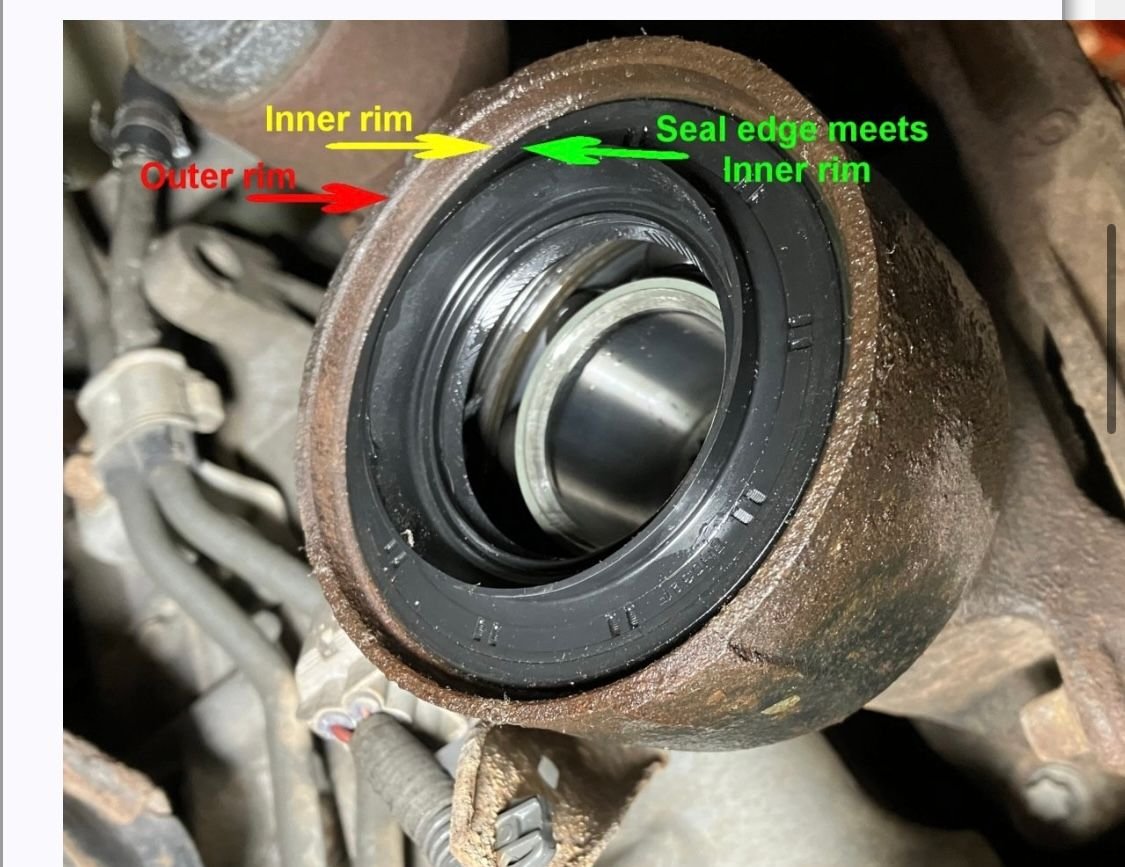

This is the clearest photo I’ve found. Installing mine later today I’ll try and update my method.
