ECU wiring

Thread Tools

Search this Thread

Old Oct 14, 2005 | 11:42 PM
Share
  #1
HI98GS's Avatar
HI98GS
Thread Starter
Lexus Test Driver

Joined: Mar 2001
Posts: 1,393
Likes: 0
From: 808state
Default ECU wiring
I need to get a schematic of the ECU wiresfor a 98-2000 GS4. Specifically I need to find plug EA2 pin #6 Can someone show me the plug location on the ECU?
Thanks
Reply
0
Old Oct 15, 2005 | 12:17 AM
Share
  #2
Dx3's Avatar
Dx3
Lexus Fanatic
iTrader: (13)

Joined: Jul 2003
Posts: 10,681
Likes: 9
From: Tulsa, Oklahoma
Default
Originally Posted by HI98GS
I need to get a schematic of the ECU wiresfor a 98-2000 GS4. Specifically I need to find plug EA2 pin #6 Can someone show me the plug location on the ECU?
Thanks

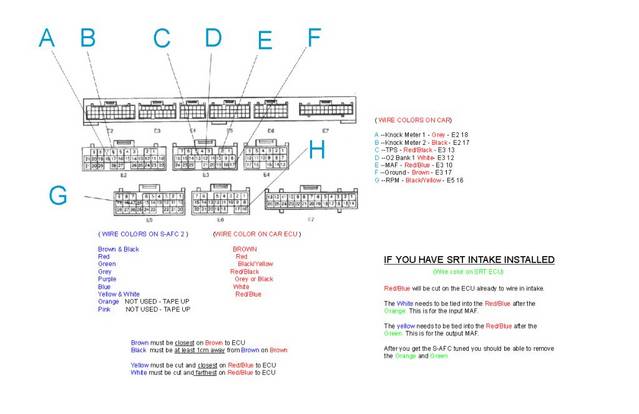

B is pointing to it.

Jonny
Reply
0
Old Oct 15, 2005 | 01:32 AM
Share
  #3
HI98GS's Avatar
HI98GS
Thread Starter
Lexus Test Driver

Joined: Mar 2001
Posts: 1,393
Likes: 0
From: 808state
Default
Thanks a bunch. I sent you a PM. Could you repost the pic but in a larger format so I can see the numbers clearly. I need to check a few other pins and plugs
Last edited by HI98GS; Oct 15, 2005 at 01:37 AM.
Reply
0
