DIY - Daizen Caster Arm Bushing Installation - lots of pics!

Reply




Thread Tools Search this Thread Display Modes
Old 06-07-10, 09:28 PM   #16
lyonkster
Pole Position
Trader Score: (0)

Join Date: Dec 2005
Location: ca
Posts: 371
Default

Quote:
Originally Posted by Caoboy View Post
I'm curious to see if this fixes the clunking sound I'm hearing...I've replaced my LBJ's and Tie Rods, next will be this caster bushing.
Well, I wanted to wait until I figured things out, and it took almost 2.5 months, but I do have the answer . The answer is that the caster arm bushings did [drumroll] not fix my clunking. It seemed to have gotten better at first, but within a few days I had to admit to myself that the clunking (when braking and turning) remained. I ended up replacing the ball joints and tie rod ends, but the clunking still remained. I looked no less than 4 times at all parts of my suspension, both front and rear, but everything seemed real tight.

I was on the verge of capitulating and taking it to a mechanic, knowing full well that their approach would most likely be to throw parts at it until something fixed the problem (not my idea of fun, when I am the one paying for their experiments .) But just before I did that, I took the "desperate" step of what I should have done earlier - I took apart my front brakes, removed the pads, cleaned and lubricated everything, and put all the same parts back in.

The clunk is now gone! I should have known better, because about 2 years ago I was posting here about an almost identical clunk that went away when I replaced my Pep Boys pads with Akebonos; I just never considered that even though I still had the same Akebono's in place, that perhaps the brakes needed a freshening up of grease or whatever it was that solves the clunking. But whatever the gremlin was, cleaning and lubricating the pads fixed the clunk for me. I have been clunk-free now for over two weeks .

Obviously everyone's "clunk" is different, but in my case, the pads were the culprit.
This ad is not displayed to registered members.
Register your free account today and become a member on Club Lexus!
__________________
Leon

'01 GS430, Pearl White

Last edited by lyonkster; 06-08-10 at 06:06 PM..
lyonkster is offline   Reply With Quote
Old 06-08-10, 10:54 AM   #17
Caoboy
Lexus Champion
Trader Score: (2)

Caoboy's Avatar

Join Date: Sep 2005
Location: CA
Posts: 2,515
Default

Thanks, that is one more thing to fix now lol.


Why didn't you replace the other bushings? Or did you just not do the write up on that?
__________________
SUPPORT AUTHENTICITY, DON'T BUY REPLICAS.

http://www.clublexus.com/forums/grou...ught-here.html
Caoboy is offline   Reply With Quote
Old 06-08-10, 06:07 PM   #18
lyonkster
Pole Position
Trader Score: (0)

Join Date: Dec 2005
Location: ca
Posts: 371
Default

Quote:
Originally Posted by Caoboy View Post
Why didn't you replace the other bushings? Or did you just not do the write up on that?
I did not want to increase the harshness of my ride, and I read enough to convince me that I wouldn't be happy with poly on the other control arm bushings.
__________________
Leon

'01 GS430, Pearl White
lyonkster is offline   Reply With Quote
Old 06-09-10, 09:13 PM   #19
gcam77
Driver
Trader Score: (0)

Join Date: Feb 2004
Location: New York
Posts: 141
Default

Can you point me to where I can order all the TM busings for my GS300?

Quote:
Originally Posted by xfea View Post
Sure they do (as of March at least).
Search for my posts about TM and bushings and you can get the details.

Will bushings make a diff about the clucking noises?

OMGosh - yes!

I replaced all my bushings (back sway, front sway, steering, ALL the front control arm bushings) and the car feels AMAZING.

Just do 'em all.
__________________
2008 LS460L Black, 20% Tint, 6K FOG Light HIDs, MHT Tuscan Wheels 22x9 +35 offset 22x10.5 +40 offset, 245/30/22 295/25/22

2000 GS300 Black, L-Sprotine Kit, L-Tuned S/S, 01+ Tails, 20x8.5/20x10 Dub Bomber Chrome Wheels, Viper 791xv, Chrome Trunk Bar, Quad 6K HID

1998 ARISTO VERTEX TWIN TURBO - Quad 6K HID, 20x8.5/20x10 Driv GT Chrome Wheels, Tein FLEX Coilovers, JVC KW-AVX800, Chrome Trunk Bar, LED Tails, LS400 Brakes, HKS BOV
gcam77 is offline   Reply With Quote
Old 06-12-10, 02:32 AM   #20
Chris4.3
Lead Lap
Trader Score: (29)

Chris4.3's Avatar

Join Date: Nov 2002
Location: SoCal 714
Posts: 767
Send a message via AIM to Chris4.3
Default

Quote:
Originally Posted by gcam77 View Post
Can you point me to where I can order all the TM busings for my GS300?
www.tmengineering.net
__________________

'05 LS430
'03 GS430
Chris4.3 is offline   Reply With Quote
Old 06-13-10, 04:15 PM   #21
etmoron
Driver School Candidate
Trader Score: (1)

Join Date: Jul 2006
Location: ny
Posts: 36
Default

im sort of confused , on your 16th picture of the arm installed back on the vehicle . it looks like theres alot of space between the sleeve and the bushing . wont that make alot of rattle ??

just wondering since im about to order these bushings soon

thank you
etmoron is offline   Reply With Quote
Old 06-14-10, 06:59 AM   #22
lyonkster
Pole Position
Trader Score: (0)

Join Date: Dec 2005
Location: ca
Posts: 371
Default

Quote:
Originally Posted by etmoron View Post
im sort of confused , on your 16th picture of the arm installed back on the vehicle . it looks like theres alot of space between the sleeve and the bushing . wont that make alot of rattle ??
It does look that way in the picture, but the bushing's inner surface is not cylindrical, but "hourglass" shaped. So it's tapered out at the ends (resulting in the space that you see), but it sits tight against the sleeve in the middle. So no rattles.
__________________
Leon

'01 GS430, Pearl White
lyonkster is offline   Reply With Quote
Old 06-27-10, 12:08 PM   #23
Chris98GS4
Pole Position
Trader Score: (0)

Join Date: May 2010
Location: ma
Posts: 244
Default

What is the plate attached to some metal rods that you take the bolts out of to start this job called?

I need to order a new one. Mine is rusted out on the right side.
Chris98GS4 is offline   Reply With Quote
Old 06-27-10, 10:51 PM   #24
FIGS
The Maker
Trader Score: (10)

FIGS's Avatar

Join Date: May 2009
Location: CO
Posts: 1,674
Send a message via AIM to FIGS Send a message via MSN to FIGS
Default

Thanks for the DIY, this helps me understand the Daizen solution and where I can improve things. also the difference between the IS and GS chassis points. My suggestion for aligning teh two arm bolts would be to use a small bottle jack to position the arms and a brass punch to line up one hole while threading into the other. Brass so that it would not damage the threads at all.
Fig
__________________
<a href=http://www.figsengineering.com target=_blank> Redefining Aftermarket Parts Since 2001
-- We are your Lexus suspension experts--
TRACK-DAILY-SHOW-VIP
BCR-KW-PENSKE-OHLINS
LINKS-ARMS-BUSHINGS-KNUCKLES-RCA Spacers

REAR LSD units from OS GIKEN (Install available)
PPE Master Distributor. Headers-Exhaust and Parts
BC Wheels

Follow us on facebook Instagram @FIGSENGINEERING
FIGS is offline   Reply With Quote
Old 06-28-10, 10:48 AM   #25
lyonkster
Pole Position
Trader Score: (0)

Join Date: Dec 2005
Location: ca
Posts: 371
Default

Quote:
Originally Posted by 98gs4hunny View Post
What is the plate attached to some metal rods that you take the bolts out of to start this job called?

I need to order a new one. Mine is rusted out on the right side.

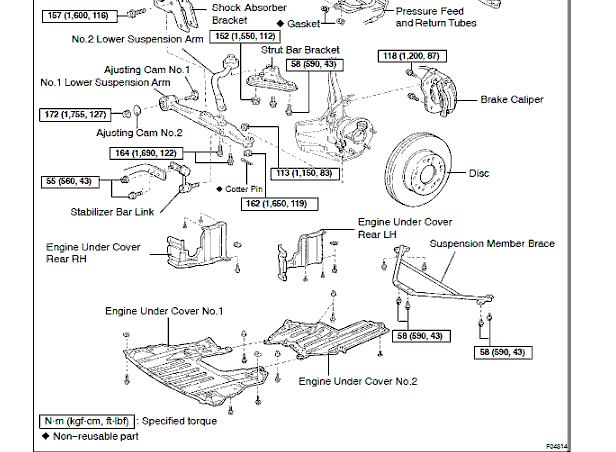

Sounds like you are referring to the "Suspension Member Brace" in the lower right hand corner of the figure below(?).
Attached Images

__________________
Leon

'01 GS430, Pearl White
lyonkster is offline   Reply With Quote
Old 06-28-10, 03:48 PM   #26
Chris98GS4
Pole Position
Trader Score: (0)

Join Date: May 2010
Location: ma
Posts: 244
Default

YES!!! That seems to be it.

Thanks so much lyonkster. I really appreciate the help a lot.

Now the hunt is on for where to buy it LOL


EDIT: Found where it is on Sewell. Just waiting for a call back from them.

Thanks again man

Last edited by Chris98GS4; 06-28-10 at 04:13 PM..
Chris98GS4 is offline   Reply With Quote
Old 06-28-10, 06:54 PM   #27
Caoboy
Lexus Champion
Trader Score: (2)

Caoboy's Avatar

Join Date: Sep 2005
Location: CA
Posts: 2,515
Default

Can I add a tip/trick/input here?

Putting the caster arm back on is a PITA.

I couldn't do it the way you said, with trying to mangle the arm to get it to sit just 'right' to put the bolts in.

What I found easier, was to take off the front hub, and remove the shock.

After you pull the caster arm off, get your bushing pressed out/in:
Unbolt the bottom of the steering knuckle (attached to the LBJ)
Unbolt the top of the knuckle from the UCA.

Remove this (take out your ABS sensor/brake caliper first)

Remove the Sway Bar bolt/nut from the endlink and unlink it.

Remove the shock (3 bolts up top, 1 bolt in the middle, 1 bolt on the bottom)

Attach the caster arm/brace plate, then jack up the lower control arm and align the bolt holes with the caster arm bolt holes, and attach the bolts. (clean the LCA bolts for the caster arm, mine were DIRTY and a brass brush cleaned up the threads and made it easier to put in.

Torque the caster arm to proper specs.

Put your shock back in. This is where it gets tricky! The new bushing actually made it harder to put the shock back in, even though everything else is removed! (I've removed the shocks plenty of times before the bushing, and removing the steering knuckle/just unbolting the UCA from the steering arm will make the shock pop in and out with ease, think under 30 min. for both sides total) You will have to really put some weight down on the LCA to get the arm low enough for stock springs/shocks to be put back in. Not hard, just gotta be prepared. Really helps if you have a second person to do the stepping, while you put in the shock and bolt it up.

Once you get the shock in, procede to put the steering knuckle back in and torque to spec.

Put the bottom brace on last, then go for a drive and realize how much BETTER the car feels and how nonexistent the vibrations are.


Also..this bushing did not fix my clunk. I've tracked it down to a worn endlink, which I need to replace next.
