yes....i used to sub out lines.

Fingers007

Yes, sub out lines worked for me. I now have more bass than I know what to do with.


However, sub out lines are still not turning on the LC2 with GTO enabled.

slonline

Hey guys, I see that this is an older thread and I don't see the wiring diagram to the amp that is mentioned. May be it has been remove due to age. Any one still have a copy that you can repost? I want to tap in a sub (preferably before the sign got to the amp), so hoping someone can help me.
2014 IS350, premium sound system, but non ML system.
Thanks.

Loe

The signal preamp is too weak, im actually surprised how well the OEM amp/speakers sound as decent as they do; sound quality is much better post amp.

slonline

Leo, thanks for your feedback. Do you happen to still have the diagram?

Smitty17

I would be interested in this diagram as well

Fingers007

Hey Team, I still have all the pics and docs I got from Loe.

Fingers007

Here are the docs i got from Loe. Thanks Loe!!!

Smitty17

Thank you

shirosan

Thanks for the post! What wire did you use for the remote (on/off) connection? I'm sure we can tap one from the OEM amp and send it to the aftermarket amp. Thanks!

specONE

iTrader: (3)

best to grab Remote wire from factory Cigarette Lighter port and run that to the rear of the car.
Factory Amp does not have a standard 12v analog signal turn on, its all through data.

Fingers007

I tied my remote wire to the "ignition 3" fuse under the driver side dash. This fuse is only active when the car is on.

specONE

iTrader: (3)

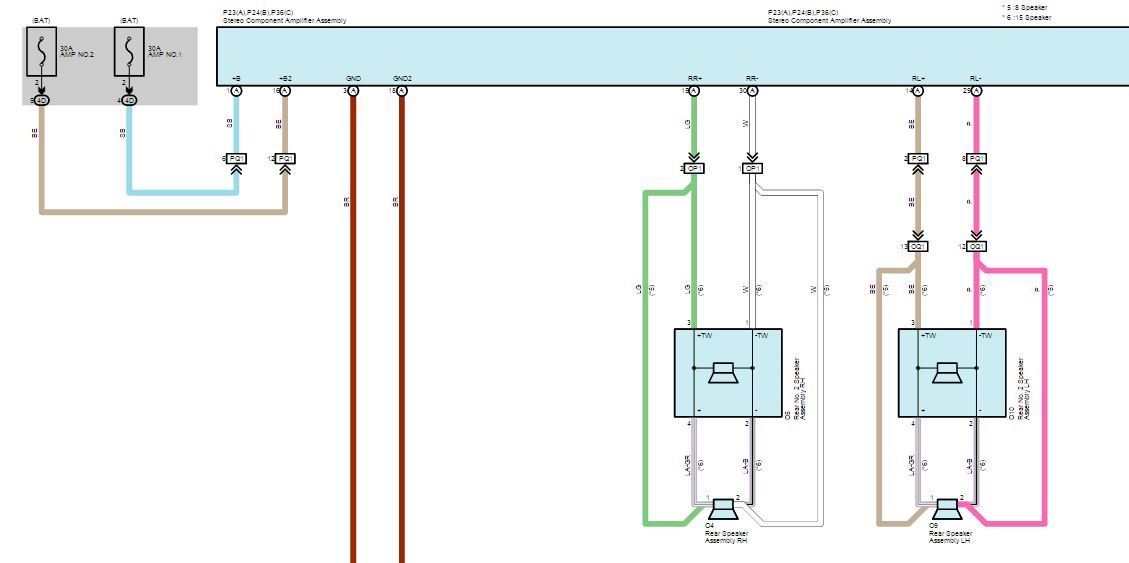

Here's a clean PDF off of TIS of the full wiring diagram for anybody else in the future.
https://drive.google.com/file/d/0B-a...H4U3J9yNzA65bw

shirosan

Awesome, thanks for the heads up too.


I will have to try this link once I get home from work. Darn work loves having proxy problems all the time haha.

No0dLeZ

Thanks for the share!
