DIY lower door rubber molding replacement (with pix)

Reply



Thread Tools Search this Thread
Old 12-30-06, 12:50 PM   #1
e-man
Lexus Champion
Thread Starter

Join Date: Apr 2004
Location: Illinois
Posts: 3,150
Default DIY lower door rubber molding replacement (with pix)

I did some searching, and although the problem is well documented and CL members have replaced these molding strips, there does not appear to be a detailed DIY write-up with pictures, so here goes it.

Jeff and Dave, please feel free to add links to this to your respective DIY pages.

Here's the problem:



Tools needed to do the job -- a 10 mm socket, a Philips head screwdriver (preferrably the 4-in-1 model with the removable/changeable tip), and one of the tips from the 4-in-1 screwdriver:



Time needed -- about 30 minutes.

I think it's important to understand how this molding strip is attached. It's not actually attached to the door directly, but rather, is attached by 5 very small Phillips head screws to the back side of the large plastic lower molding panel that covers the bottom half of the door. The large plastic lower molding panel is, in turn, attached to the backside of the door by 3 10mm nuts and some plastic clips. This will all become clear as I go through the replacement steps.

First, remove the 3 10 mm nuts from the backside of the door pictured below:

Here are the first two:



And here is the third one:



They come right off, and expose a threaded screw that's attached directly to the lower door molding panel:



Once you remove all three nuts, run your finger along the inside upper edge of the molding strip and you'll feel that it's held in place by 5 screws attaching it to the lower molding panel -- there's one at each end, and 3 more in between. In order to get a screwdriver on these screws, you'll need to slightly separate the lower molding panel from the door by about a couple of inches. Since you've already removed the 10 mm nuts, the only thing holding the lower panel to the door are some stepped plastic retention clips. From the inside of the door, apply pressure to the very bottom of the lower molding panel (basically on the molding strip) and you'll hear the clips pop out. Because they're stepped, they won't come out completely, but depending on how much pressure you exert, you may hear/feel two or more distinct releases. Here is how I was able to release the clips:



Remember where you took off the 3 10 mm nuts? As you separate the lower molding panel from the door, the 3 screws that were behind those nuts will recess back through the holes they were in and will actually help you keep the lower panel separated from the door. Look closely at this picture and you'll see what I mean:

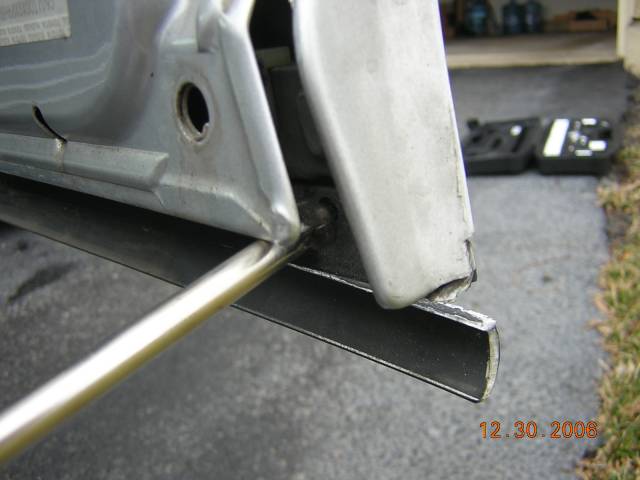

Once you have enough room between the lower door panel and the door, you can begin to remove the 5 screws holding it in place. The easiest one to remove is the one at the open end of the door, as shown here:



The other screws are harder to remove because you don't have a good angle to get to them depending on how far you've separated the lower molding panel. Here is how I reached the one closest to the car:

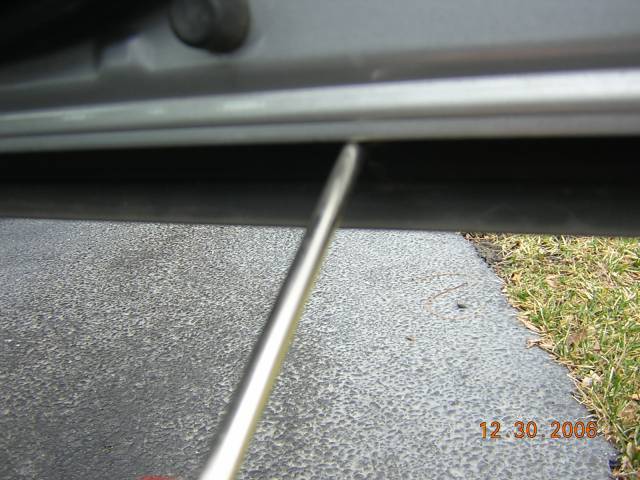

And here's how I was able to get to the middle ones (although, in hindsight, it would have been easier to use the insert from the 4-in-1 screwdriver):


Last edited by e-man; 01-01-07 at 10:36 AM.
e-man is offline   Reply With Quote
Old 12-30-06, 12:51 PM   #2
e-man
Lexus Champion
Thread Starter

Join Date: Apr 2004
Location: Illinois
Posts: 3,150
Default

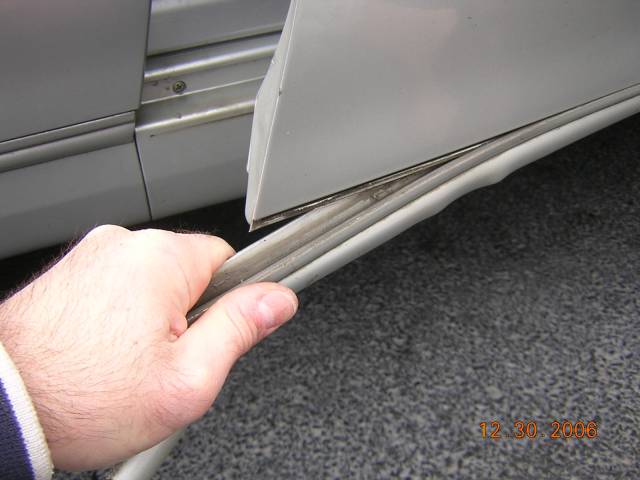

Okay, now that all the screws are off, the lower molding strip is still attached to the car on a groove, so you can't just pull it off by pulling down on it. Instead, all you need to do is close the door and slide it off towards the front of the car. Of course, this is about the time that Mr. Dumb A$$ showed up and decided that it would be better to do it this way (DO NOT DO THIS):

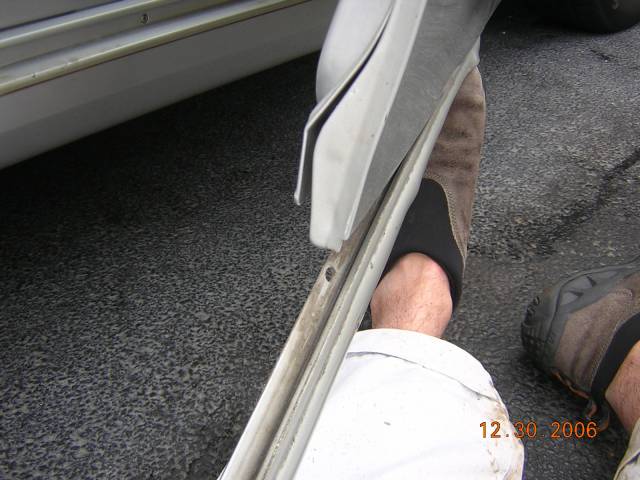

AND DEFINITELY DON'T DO THIS EITHER (look Mom, no socks):



I REPEAT, DO NOT TAKE THE MOLDING STRIP OFF THIS WAY. Just close the door and slide it off towards the front. As you can see in the following picture, there is a barrier at the outside end of the door that prevents you from sliding it off towards the back. There is no such barrier in the front:



Now that the strip is off the car, just do the above steps in reverse to put the new one on. Remember, slide the new strip on from the front of the car and push it back, like this:

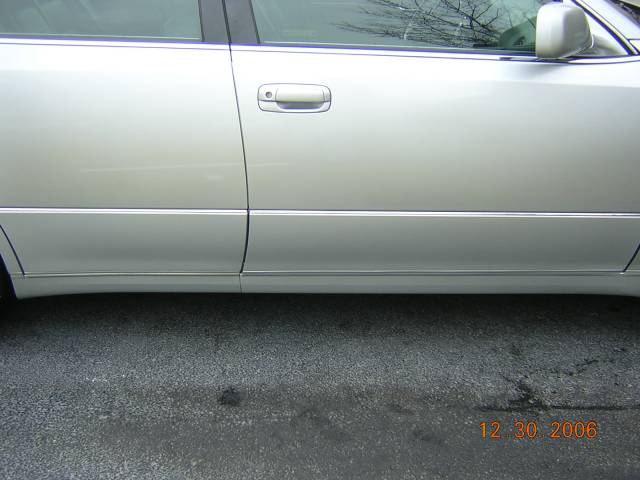

And here is the final result. Uhhh, Houston, we have a problem:



As you can see, the color doesn't quite match (don't worry about the gap between the doors -- I just haven't secured the lower molding panel back in place yet). I kind of knew this was going to be a problem going into this project. Check out the side by side comparison:



I guess 7.5 years/90k+ miles will do that to alpine silver. Here is a final picture from a distance.



I guess it's not that bad, but chances are I will be ordering 3 more of these things from Sewell Lexus in the not-so-distant future.

Hope this helps. Please feel free to post up any questions.

e

Last edited by e-man; 12-30-06 at 03:02 PM.
e-man is offline   Reply With Quote
Old 12-30-06, 01:03 PM   #3
GILLEXUS
Lexus Champion
iTrader: (14)

Join Date: Dec 2002
Location: Colorado
Posts: 1,776
Default

Sweet Write -up .What did the Pass. door molding cost?
GILLEXUS is offline   Reply With Quote
Old 12-30-06, 01:18 PM   #4
e-man
Lexus Champion
Thread Starter

Join Date: Apr 2004
Location: Illinois
Posts: 3,150
Default

It was $30 from my local dealer. I believe you can get them for less than $20 from Sewell Lexus or Carson Toyota.
e-man is offline   Reply With Quote
Old 12-30-06, 01:26 PM   #5
GSteg
Rookie
iTrader: (15)

Join Date: Jul 2005
Location: CA
Posts: 15,687
Default

~$20-30 per mold? I was planning to replace all of mine
GSteg is offline   Reply With Quote
Old 12-30-06, 02:02 PM   #6
chuckb
Lexus Fanatic

chuckb's Avatar

Join Date: Aug 2004
Location: Florida
Posts: 6,947
Default

great write up e. now you know how to do the other 3. time to call darrel.
chuckb is offline   Reply With Quote
Old 12-30-06, 03:05 PM   #7
e-man
Lexus Champion
Thread Starter

Join Date: Apr 2004
Location: Illinois
Posts: 3,150
Default

Quote:
Originally Posted by chuckb View Post
great write up e. now you know how to do the other 3. time to call darrel.
Yep. I'll add it to the list of parts I'm ordering for my 90k. Here's the thing, though. In addition to the moldings at the bottom of each door, there are still 4 more small pieces that need to be replaced -- one slightly in front of each front door, and one just behind each rear door. I have no idea how to get those pieces off (assuming they even come off).
e-man is offline   Reply With Quote
Old 12-30-06, 03:14 PM   #8
daveyB14
Rookie

Join Date: Sep 2004
Location: California
Posts: 55
Default

Quote:
Originally Posted by e-man View Post
Yep. I'll add it to the list of parts I'm ordering for my 90k. Here's the thing, though. In addition to the moldings at the bottom of each door, there are still 4 more small pieces that need to be replaced -- one slightly in front of each front door, and one just behind each rear door. I have no idea how to get those pieces off (assuming they even come off).
Do a search on L-Tuned Side Skirts installation. It tells you how to remove those 4 smaller pieces.
daveyB14 is offline   Reply With Quote
Old 12-30-06, 03:56 PM   #10
e-man
Lexus Champion
Thread Starter

Join Date: Apr 2004
Location: Illinois
Posts: 3,150
Default

Thanks Chuck. I guess you have to remove the whole piece in order to get the lower molding strip off. It makes me not want to do it, especially because I'll probably end up breaking some of those clips.
e-man is offline   Reply With Quote
Old 12-30-06, 04:10 PM   #11
tmf2004
5% Club. Killing it!!!
iTrader: (15)

tmf2004's Avatar

Join Date: Nov 2004
Location: FL
Posts: 21,608
Default

Great write up.. i always wondered how would you replace those.. Looks pretty easy for the DIY or beginner.. This should be a sticky...

thanks e-man
tmf2004 is offline   Reply With Quote
Old 12-30-06, 07:32 PM   #12
JeffTsai
Lexus Fanatic
iTrader: (1)

JeffTsai's Avatar

Join Date: Aug 2005
Location: DFW area TX
Posts: 5,383
Default

Well, here's an idea if you want the color to match. Buy a set of 4 about a year or so before you plan to replace them. Have them sitting out in the sun in your backyard in the sun everyday for a year. That should get the color matched close enough
JeffTsai is offline   Reply With Quote
Old 12-31-06, 05:23 PM   #13
SADDLE
Lexus Test Driver
iTrader: (9)

SADDLE's Avatar

Join Date: Mar 2002
Location: Kansas
Posts: 1,205
Default

nice write up, very helpful for anybody interested
SADDLE is offline   Reply With Quote
Old 12-31-06, 06:52 PM   #14
IAGS400
Pole Position

IAGS400's Avatar

Join Date: Oct 2005
Location: IA
Posts: 366
Default

e, good job. Very helpful. I thought you had a bunch of snow?

Quote:
Originally Posted by e-man View Post
one slightly in front of each front door
I really hate these seals. I am constantly washing dirt and grime out from behind them.
IAGS400 is offline   Reply With Quote
Old 08-25-09, 09:57 PM   #15
0prime39
Driver School Candidate

Join Date: Aug 2009
Location: NY
Posts: 18
Default

Wow I love this forum. Truely an answer to all questions here. Highly appreciated!
